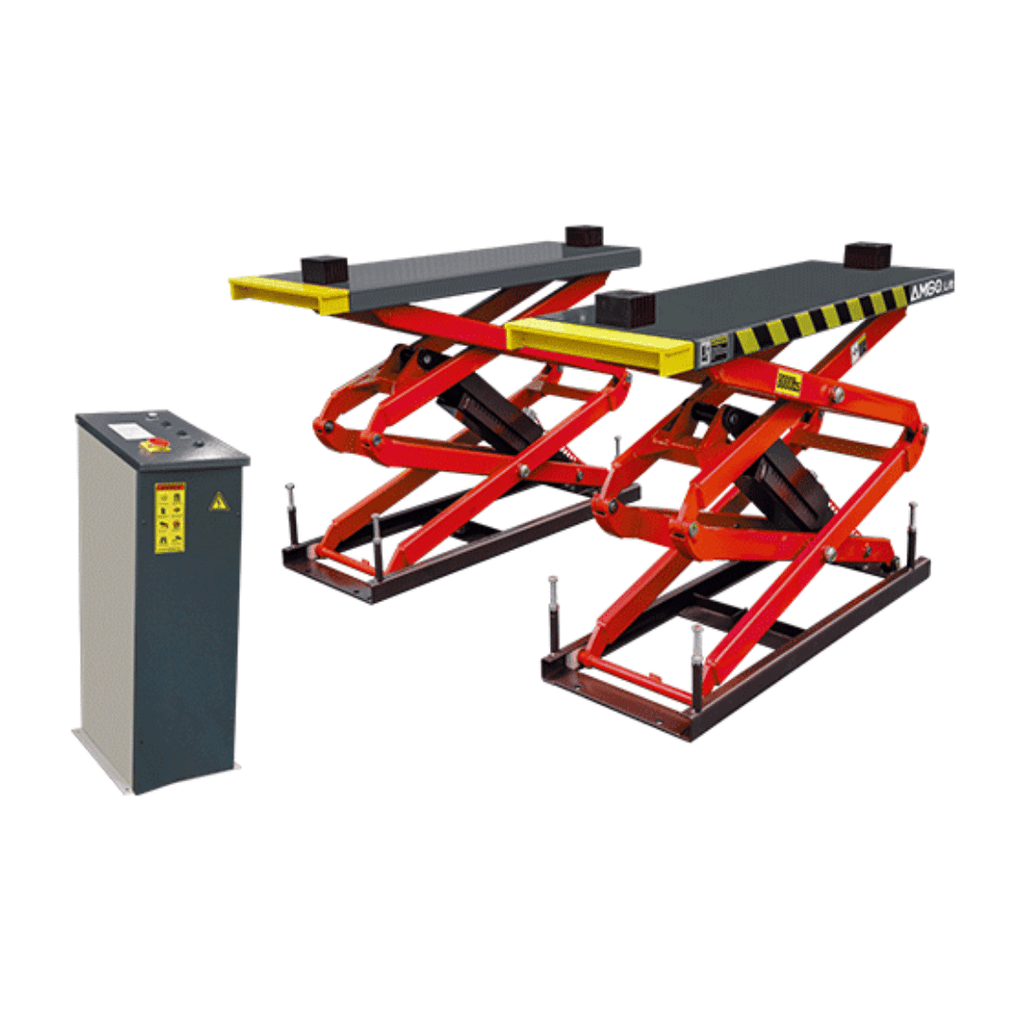

AMGO XL-8F Flush-Mount Full-Rise Scissors Lift – 8,000-lb Capacity
AMGO XL-8F Flush-Mount Full-Rise Scissors Lift – 8,000-lb Capacity
AMGO XL-8F: An 8,000-lb. flush-mount full-rise scissors lift with extendable platforms, dual-cylinder synchronization, mechanical air-release locks and a dedicated electro-hydraulic control cabinet.
About the AMGO XL-8F
The AMGO XL-8F is a flush-mount full-rise scissors lift designed to maximize service-bay efficiency. Its recessed installation keeps the surrounding shop floor unobstructed when the lift is lowered, improving vehicle access and overall workspace organization.
With an 8,000-lb. capacity, reinforced structure, industrial-grade hydraulic cylinders and extendable platforms, the XL-8F supports a wide range of compatible passenger vehicles and longer-wheelbase models.
Key Features
- 8,000-lb. lifting capacity supports compatible passenger cars, SUVs and other light-duty vehicles.
- Flush-mount installation keeps the surrounding floor unobstructed when the lift is fully lowered.
- Full-rise design provides generous working clearance beneath the vehicle.
- Extendable platforms adjust from 61 3/16 inches to 69 1/16 inches for different wheelbases.
- Dual-cylinder automatic synchronization helps keep both platforms lifting evenly.
- Dual-tooth mechanical locking system provides secure locking throughout the lifting range.
- Pneumatic safety release allows the mechanical locks to disengage together during lowering.
- Electro-hydraulic power system delivers dependable lifting performance.
- Dedicated control cabinet centralizes lift operation and improves operator safety.
- Open scissors design supports access to the vehicle from either side.
- Industrial-grade hydraulic cylinders provide reliable power for professional use.
- 3-inch rubber pads are included as standard equipment.
Recommended Applications
Professional Service Bays
The flush-mount design preserves a clean, unobstructed shop floor when the lift is lowered.
Full Undercar Service
The full-rise structure provides practical access for inspections, exhaust work and general underbody maintenance.
Mixed Wheelbase Vehicles
Extendable platforms help accommodate compatible vehicles with different wheelbases.

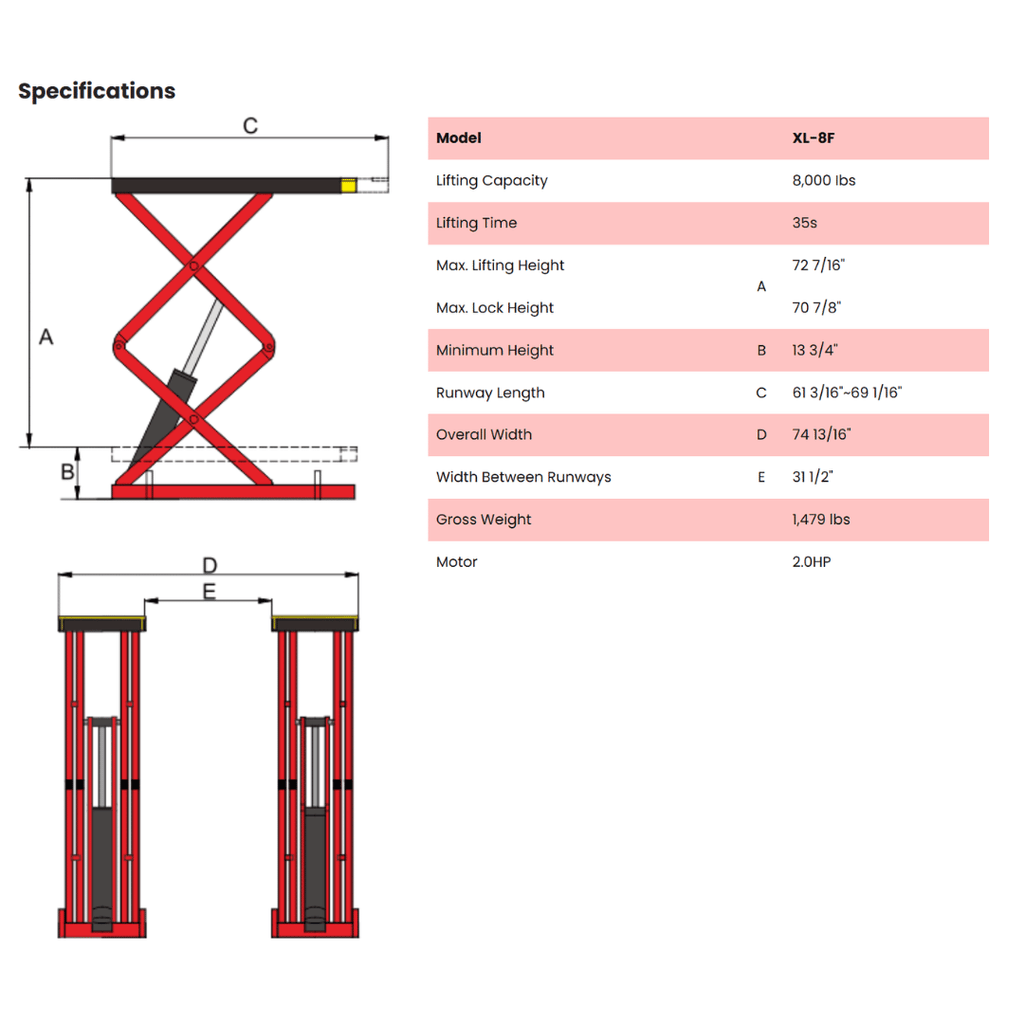

AMGO XL-8F Specifications
| Specification | Reference | XL-8F Details |
|---|---|---|
| Model | - | XL-8F Flush-Mount Full-Rise Scissors Lift |
| Lifting Capacity | - | 8,000 lbs |
| Lifting Time | - | 35 seconds |
| Maximum Lifting Height | A | 72 7/16" |
| Maximum Lock Height | - | 70 7/8" |
| Minimum Height | B | 13 3/4" |
| Adjustable Runway Length | C | 61 3/16" to 69 1/16" |
| Overall Width | D | 74 13/16" |
| Width Between Runways | E | 31 1/2" |
| Gross Weight | - | 1,479 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: The XL-8F is approved for indoor flush-mount installation only. The official manual requires level concrete with a minimum strength of 3,000 psi and a minimum thickness of 4 inches, a 220V / 60Hz grounded electrical supply, and a regulated compressed-air supply set to approximately 0.8 MPa. All electrical work must be completed by a licensed electrician.

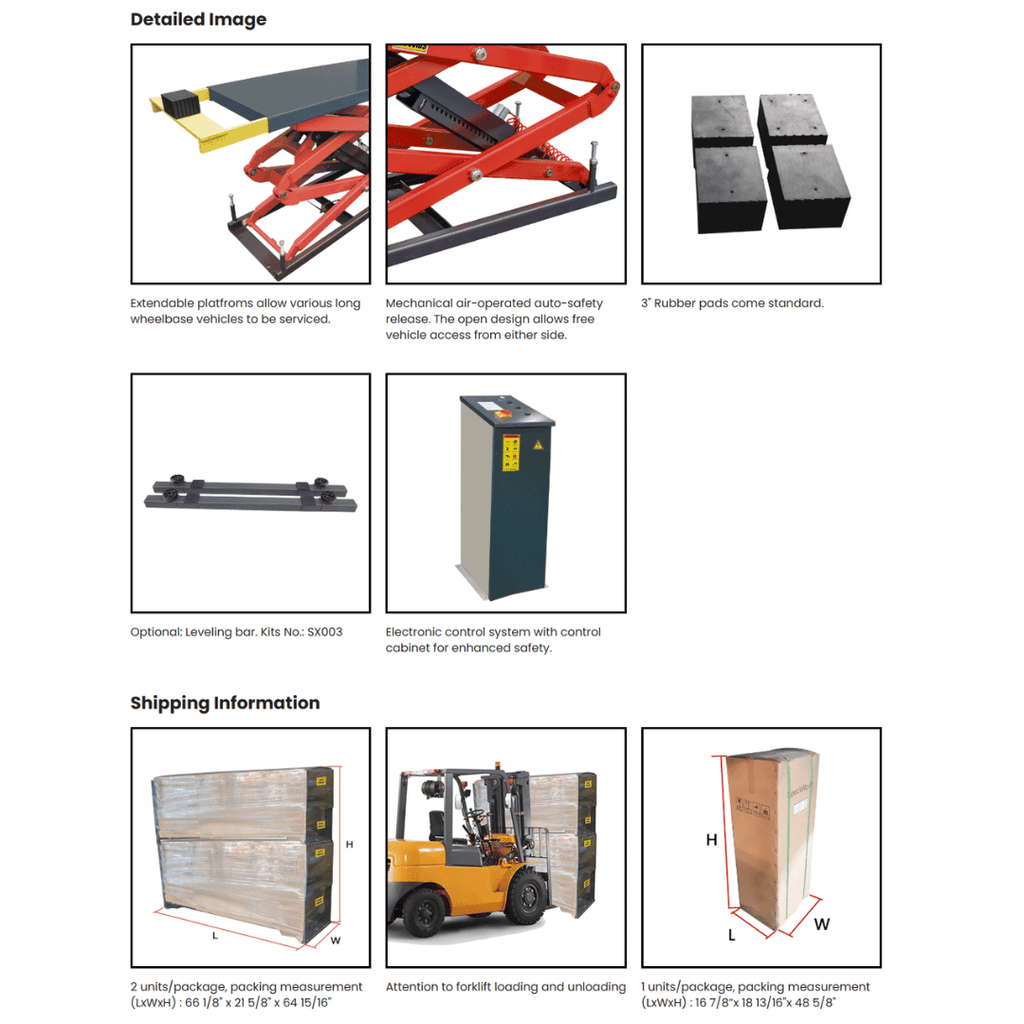

Standard and Optional Equipment
- Extendable platforms for different compatible wheelbases.
- Dual-cylinder automatic synchronization system.
- Dual-tooth mechanical locks with pneumatic release.
- Dedicated electro-hydraulic control cabinet.
- Standard 3-inch rubber lifting pads.
- Optional leveling bar — Kit No. SX003.
Why Choose the AMGO XL-8F?
- Professional 8,000-lb. lifting capacity.
- Flush-mount design keeps the shop floor unobstructed.
- Fast 35-second lifting time.
- Full-rise 72 7/16-inch working height.
- Extendable platforms support different wheelbases.
- Mechanical locks and synchronized cylinders enhance safety.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO XL-8F combines flush-mount convenience, an 8,000-lb. capacity and full-rise working clearance in a compact scissors-lift platform. Its extendable runways, synchronized cylinders, mechanical air-release locks and dedicated control cabinet make it a practical choice for professional shops that prioritize a clean, efficient service bay.
Before purchasing or operating the lift, verify vehicle dimensions and weight, wheelbase compatibility, pit and concrete requirements, electrical and compressed-air supply, available working space and all applicable workplace safety regulations.
