AMGO XL-7: A 7,000-lb. low-profile full-rise scissors lift with integrated hydraulic and mechanical locks, dual synchronized cylinder sets, foldable extension ramps and no external air requirement.
About the AMGO XL-7

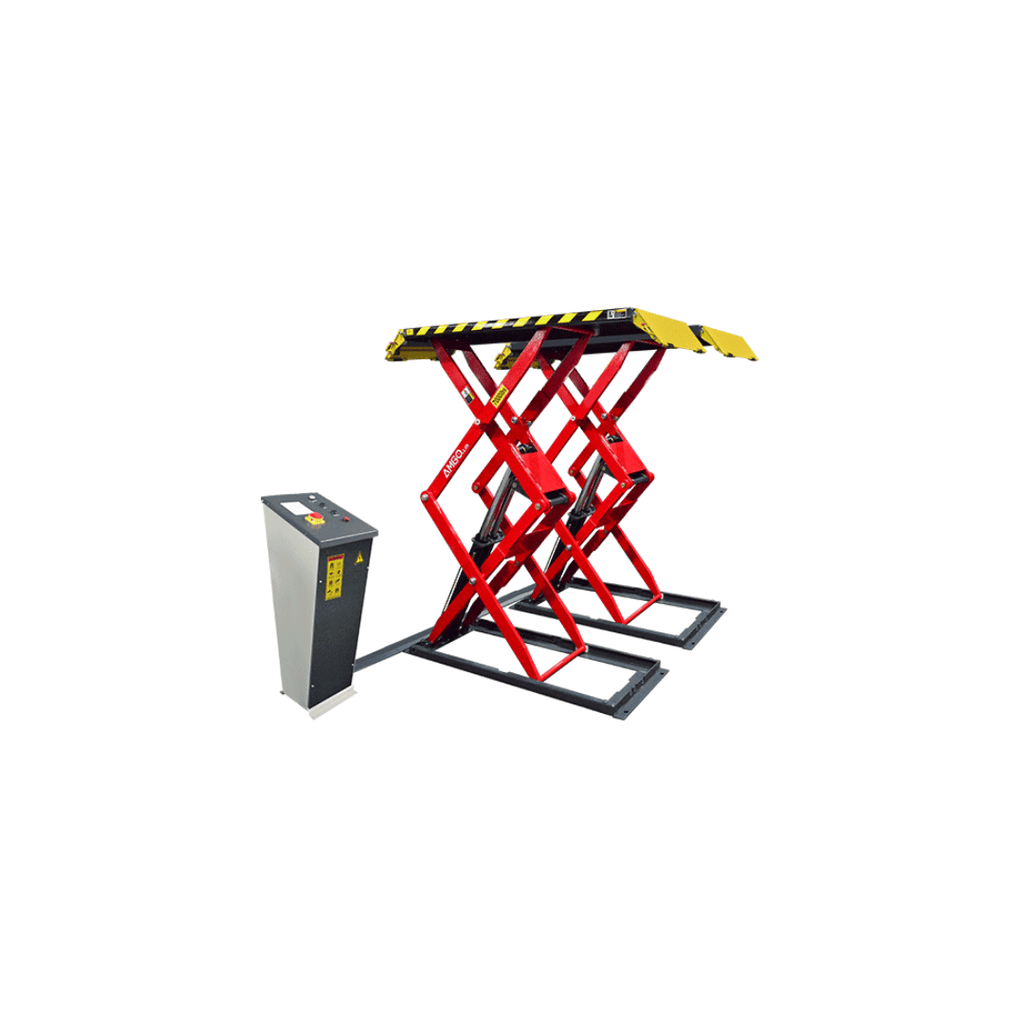

The AMGO XL-7 is a low-profile full-rise scissors lift designed for professional shops that need maximum under-vehicle access without sacrificing valuable bay width. Its compact on-surface layout accommodates compatible passenger cars, sports cars, SUVs and light-duty vehicles.
A minimum height of only 4 5/8 inches helps low-clearance vehicles drive onto the platforms, while the 78 3/4-inch maximum lifting height provides comfortable standing access beneath raised vehicles.

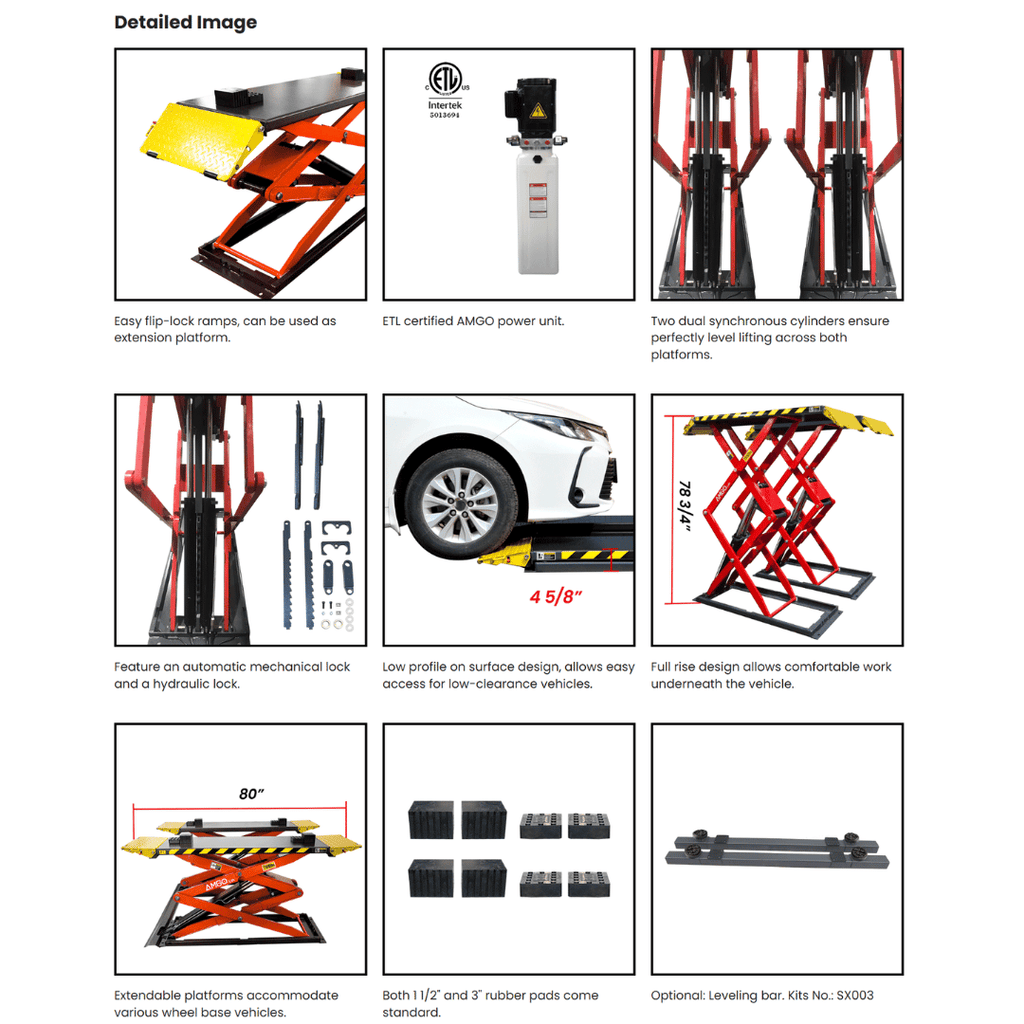

Key Features
- 7,000-lb. lifting capacity supports compatible passenger cars, sports cars, SUVs and light-duty vehicles.
- Low-profile 4 5/8-inch surface design allows easier entry for many low-clearance vehicles.
- Full-rise 78 3/4-inch lifting height provides generous under-vehicle working clearance.
- Two dual synchronized cylinder sets help keep both platforms lifting level.
- Automatic mechanical and hydraulic locks create an integrated dual-safety system.
- No external air source required simplifies installation and day-to-day operation.
- Foldable drive-in ramps can also be used as platform extensions for different wheelbases.
- Hydraulic hose-burst valves provide additional protection within the hydraulic system.
- Automatic safety stop activates approximately 11 13/16 inches above the ground.
- Electronic control cabinet supports convenient and controlled operation.
- ETL-certified AMGO power unit comes standard.
- 1 1/2-inch and 3-inch rubber pads are included as standard equipment.
Recommended Applications
Full Undercar Service
The full-rise design provides comfortable access for inspections, exhaust work and underbody maintenance.
Low-Clearance Vehicles
The 4 5/8-inch minimum height helps accommodate many compatible sports cars and low-profile vehicles.
High-Volume Service Bays
The compact footprint, air-free safety system and synchronized platforms support efficient professional workflows.

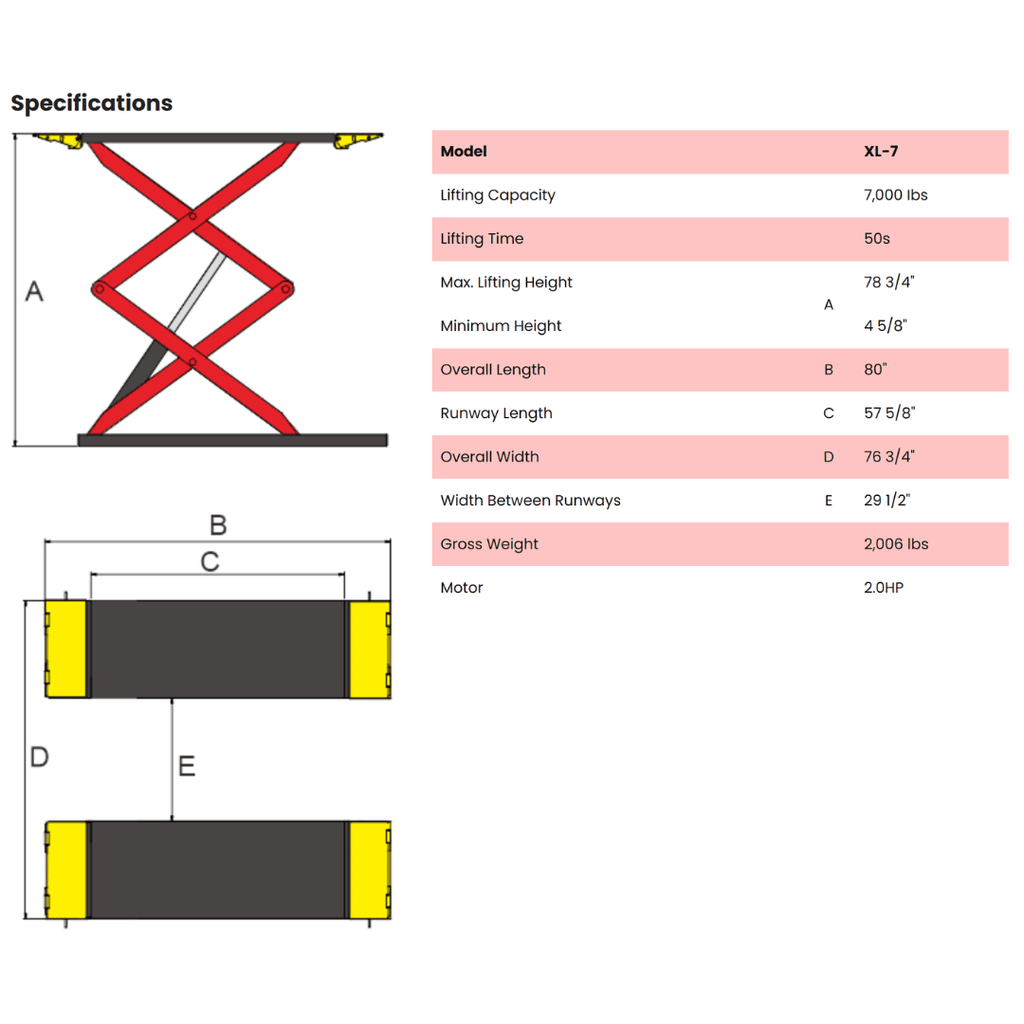

AMGO XL-7 Specifications
| Specification | Reference | XL-7 Details |
|---|---|---|
| Model | - | XL-7 Low-Profile Full-Rise Scissors Lift |
| Lifting Capacity | - | 7,000 lbs |
| Lifting Time | - | 50 seconds |
| Maximum Lifting Height | A | 78 3/4" |
| Minimum Height | - | 4 5/8" |
| Overall Length Including Ramps | B | 80" |
| Runway Length | C | 57 5/8" |
| Overall Width | D | 76 3/4" |
| Width Between Runways | E | 29 1/2" |
| Gross Weight | - | 2,006 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: The XL-7 is approved for indoor installation on a level concrete floor. The official manual specifies concrete with a minimum strength of 3,000 psi and a minimum thickness of approximately 4 inches. Electrical work must be completed by a licensed electrician. Confirm all placement, anchoring, clearance and local safety requirements before installation.
Standard and Optional Equipment
- Foldable drive-in ramps that also function as extension platforms.
- Dual synchronized cylinder sets for level platform movement.
- Automatic mechanical and hydraulic locking system.
- ETL-certified AMGO power unit and electronic control cabinet.
- Standard 1 1/2-inch and 3-inch rubber lifting pads.
- Optional leveling bar — Kit No. SX003.
Why Choose the AMGO XL-7?
- Professional 7,000-lb. lifting capacity.
- Low 4 5/8-inch entry profile.
- Full-rise 78 3/4-inch working height.
- Integrated hydraulic and mechanical safety locks.
- No external compressed-air source required.
- Compact on-surface design maximizes service-bay space.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO XL-7 combines a low-profile surface design with full-rise working clearance in a compact 7,000-lb. scissors lift. Its synchronized cylinder sets, dual hydraulic and mechanical locks, extension ramps and air-free operation make it a practical choice for professional shops servicing low-clearance and standard passenger vehicles.
Before purchasing or operating the lift, verify vehicle dimensions and weight, approved lifting points, concrete and electrical requirements, available working space and all applicable workplace safety regulations.
