AMGO XL-10F: A heavy-duty 10,000-lb. flush-mount full-rise scissors lift with dual extendable platforms, photocell-assisted hydraulic synchronization, mechanical air-release locks and an automatic safety stop.

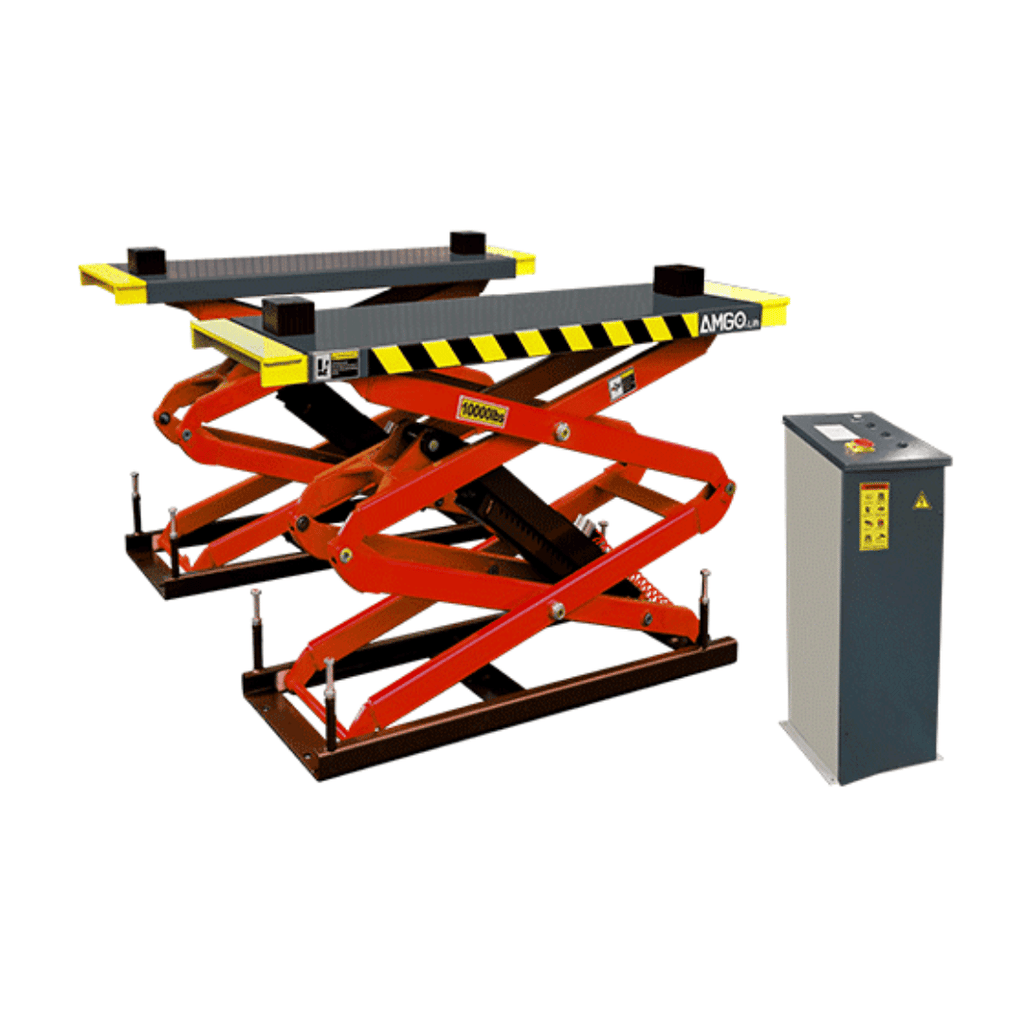

About the AMGO XL-10F
The AMGO XL-10F is a heavy-duty flush-mount full-rise scissors lift engineered for professional workshops servicing compatible passenger cars, pickup trucks and light-duty commercial vehicles.
Its recessed installation leaves the shop floor unobstructed when lowered, while dual extendable platforms accommodate a broad range of wheelbases. A photocell device supports platform synchronization, and the standard automatic safety stop adds protection during lowering.
Key Features
- 10,000-lb. lifting capacity supports compatible passenger cars, pickups and light-duty commercial vehicles.
- Flush-mount installation preserves a clean, unobstructed shop floor when the lift is lowered.
- Full-rise design provides generous working clearance beneath raised vehicles.
- Dual extendable platforms adjust from 65 1/8 inches to 80 5/16 inches for different wheelbases.
- Hydraulic synchronization system helps both platforms rise and descend evenly.
- Photocell synchronization device monitors platform alignment for enhanced operational control.
- Dual-tooth mechanical safety locks provide secure locking throughout the lifting range.
- Air-operated lock release disengages the mechanical locks during controlled lowering.
- Automatic safety stop comes standard for additional protection near floor level.
- Electro-hydraulic power system includes a dedicated 220V control cabinet.
- Open scissors layout supports convenient access from either side of the vehicle.
- 3-inch rubber pads are included as standard equipment.
Recommended Applications
Professional Service Bays
The flush-mounted structure keeps the surrounding workshop floor clear when the lift is fully lowered.
Pickup and Light Commercial Service
The heavy-duty 10,000-lb. capacity supports many compatible pickups and light commercial vehicles.
Mixed Wheelbase Vehicles
Dual extendable platforms accommodate a wide range of compatible passenger and commercial vehicle wheelbases.

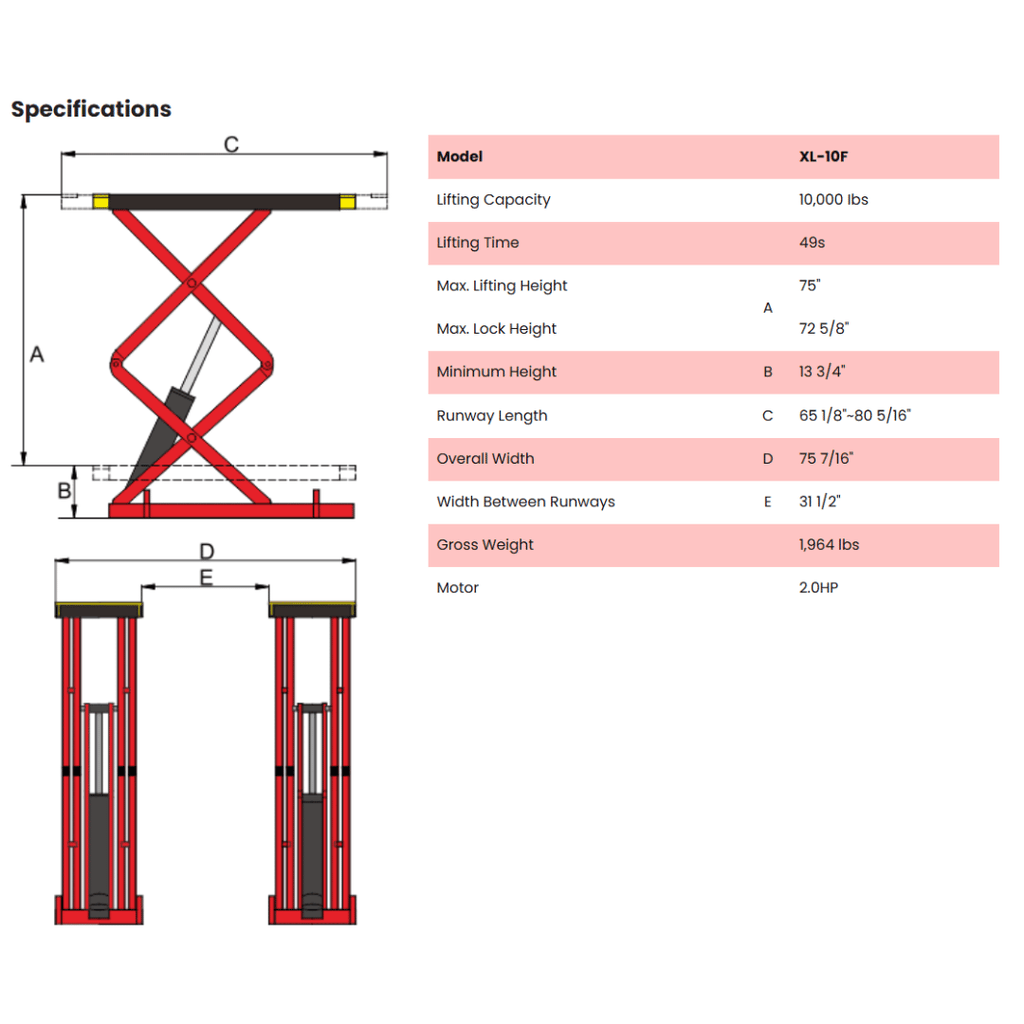

AMGO XL-10F Specifications
| Specification | Reference | XL-10F Details |
|---|---|---|
| Model | - | XL-10F Flush-Mount Full-Rise Scissors Lift |
| Lifting Capacity | - | 10,000 lbs |
| Lifting Time | - | 49 seconds |
| Maximum Lifting Height | A | 75" |
| Maximum Lock Height | - | 72 5/8" |
| Minimum Height | B | 13 3/4" |
| Adjustable Runway Length | C | 65 1/8" to 80 5/16" |
| Overall Width | D | 75 7/16" |
| Width Between Runways | E | 31 1/2" |
| Gross Weight | - | 1,964 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: The XL-10F is approved for indoor flush-mount installation on a level concrete foundation. The official manual specifies concrete at least 4 inches thick with a minimum test strength of 3,000 psi, a properly grounded 220V / 60Hz electrical supply and installation by qualified personnel. A suitable compressed-air connection is required for the pneumatic lock-release system.

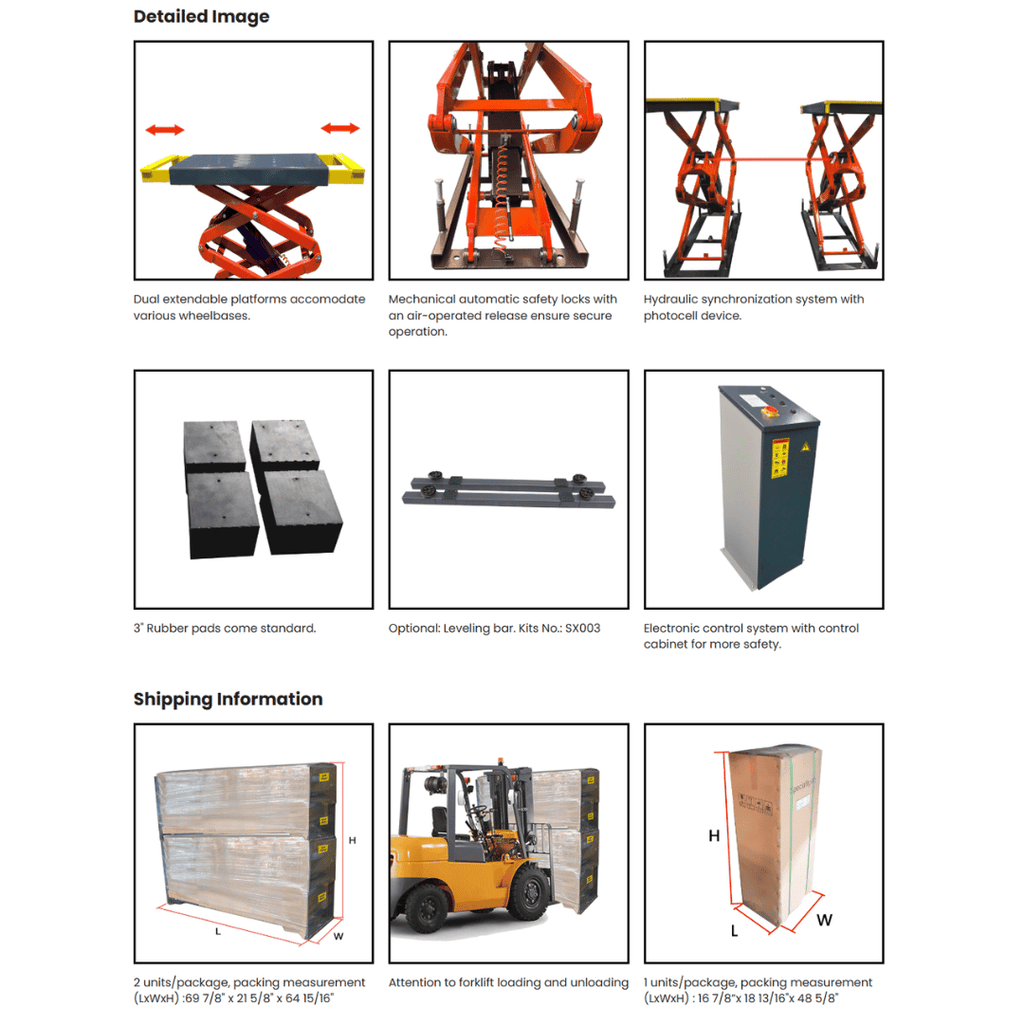

Standard and Optional Equipment
- Dual extendable platforms for different compatible wheelbases.
- Photocell-assisted hydraulic synchronization system.
- Dual-tooth mechanical safety locks with air-operated release.
- Automatic safety stop device.
- Dedicated electro-hydraulic control cabinet.
- Standard 3-inch rubber lifting pads.
- Optional leveling bar — Kit No. SX003.
Why Choose the AMGO XL-10F?
- Heavy-duty 10,000-lb. lifting capacity.
- Flush-mount design keeps the shop floor unobstructed.
- Dual extendable platforms support varied wheelbases.
- Photocell device enhances platform synchronization.
- Mechanical locks and automatic safety stop improve protection.
- Full-rise design provides generous under-vehicle workspace.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO XL-10F combines heavy-duty 10,000-lb. lifting performance with flush-mount convenience and full-rise working clearance. Its extendable platforms, photocell-assisted synchronization, mechanical air-release locks, automatic safety stop and control cabinet make it a capable solution for professional workshops servicing passenger cars, pickups and light commercial vehicles.
Before purchasing or operating the lift, verify vehicle dimensions and weight, wheelbase compatibility, pit and concrete requirements, electrical and compressed-air supply, available working space and all applicable workplace safety regulations.
