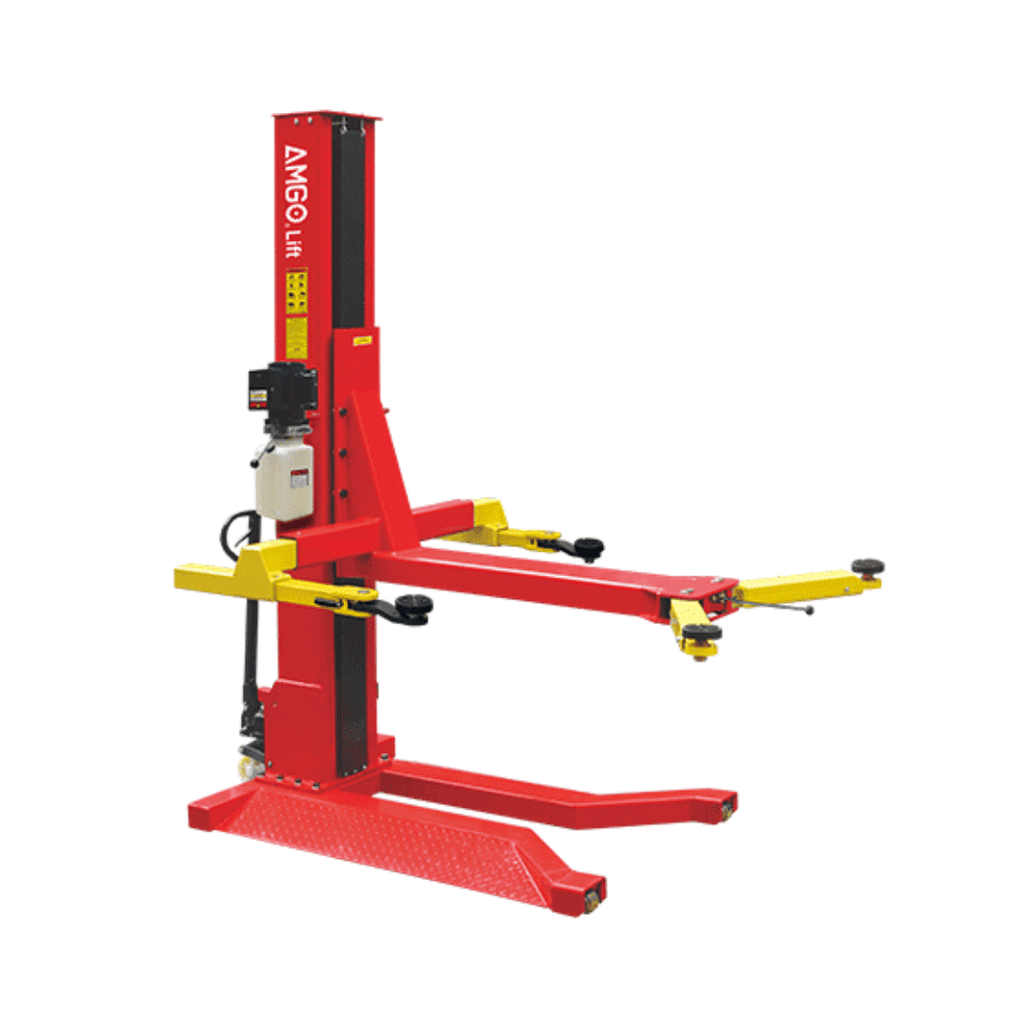

AMGO SML-7 Mobile Single Post Lift – 7,000-lb Capacity
AMGO SML-7 Mobile Single Post Lift – 7,000-lb Capacity
AMGO SML-7: A fully mobile 7,000-lb. single post lift featuring patented adjustable bionic arms, single-handed arm-lock release and an ETL-certified power unit.
About the AMGO SML-7
The AMGO SML-7 is a fully mobile single post lift designed for commercial service shops, home garages and automotive workspaces where flexibility and efficient use of floor space are important.
With a lifting capacity of 7,000 pounds, the SML-7 delivers professional-grade performance while allowing the lift to be repositioned when required. Its mobile configuration helps facilities use service areas more efficiently without permanently dedicating one bay to a fixed lift.

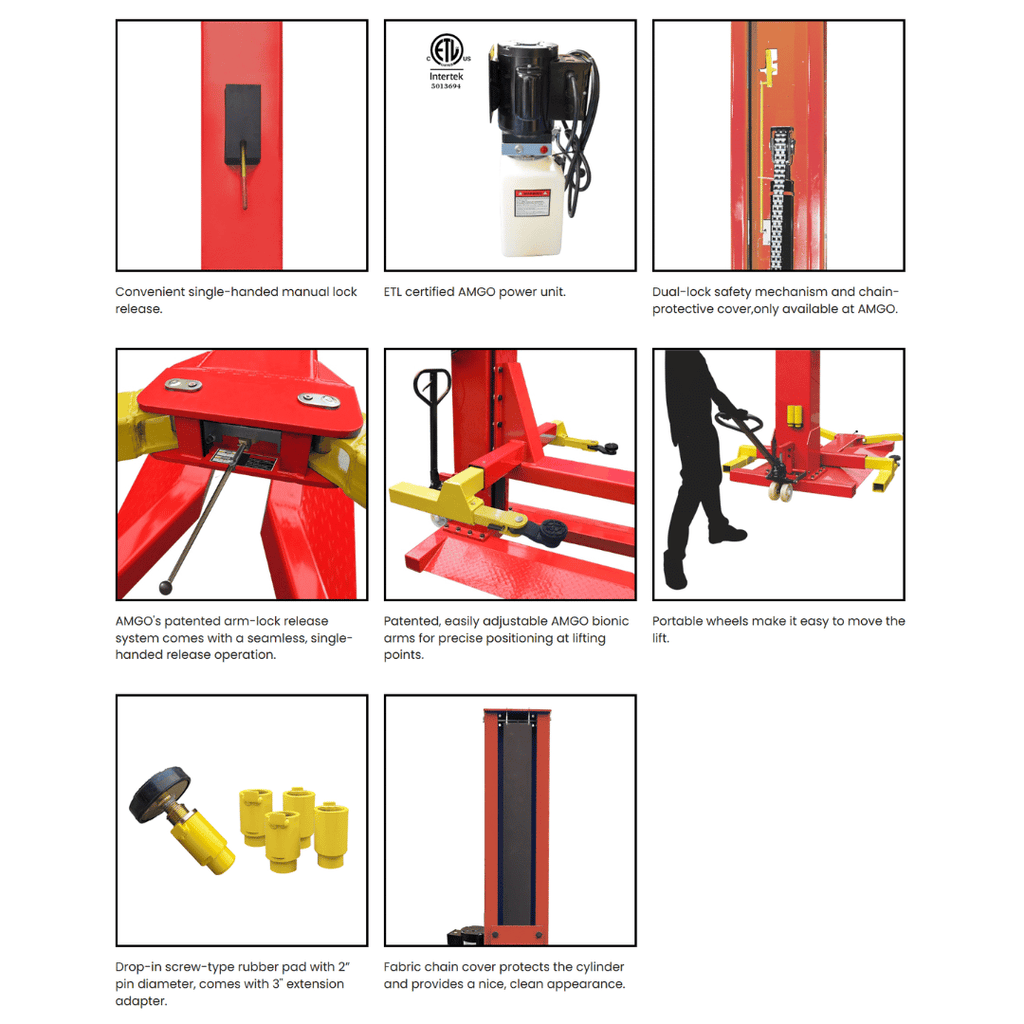

Key Features
- Fully mobile design allows the lift to be repositioned within compatible workshop and garage environments.
- 7,000-lb. lifting capacity supports compatible passenger vehicles and light automotive service applications.
- Patented arm-lock release system provides smooth and convenient single-handed operation.
- Patented AMGO bionic arms are easily adjustable for precise positioning at vehicle lifting points.
- Drop-in screw-type rubber pads feature a 2-inch pin diameter for convenient adjustment.
- Self-lubricating UHMW polyethylene sliders help support smooth and reliable movement.
- Bronze bushings provide additional durability in demanding workshop environments.
- AMGO ETL-certified power unit supports dependable electrical lifting performance.
Recommended Applications
Commercial Service Shops
Suitable for professional automotive facilities requiring a movable lift for inspections, repairs and routine maintenance.
Home Garages
A practical solution for vehicle owners who need professional lifting performance without permanently occupying one location.
Flexible Service Bays
The mobile configuration allows workshops to reposition the lift and make better use of available service space.
AMGO SML-7 Specifications

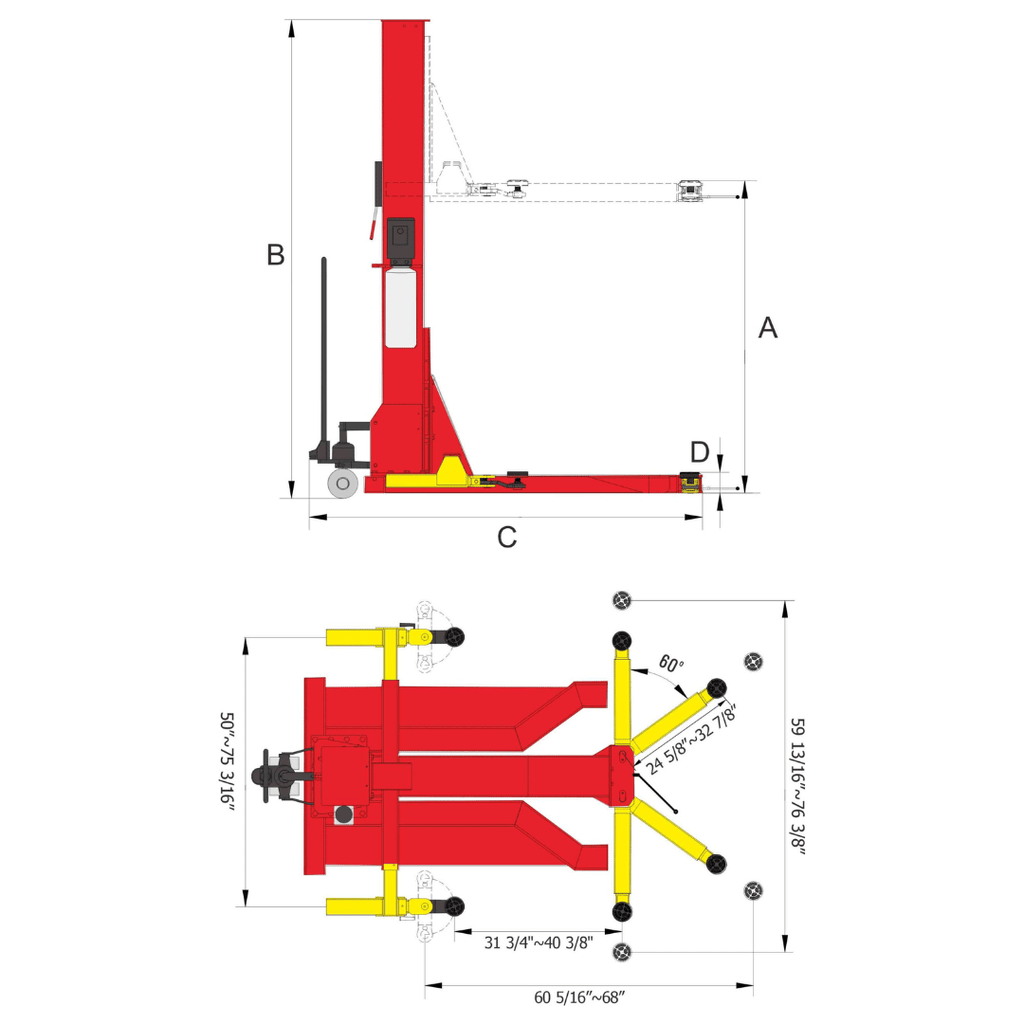

| Specification | Reference | SML-7 Details |
|---|---|---|
| Model | - | SML-7 Mobile Single Post Lift |
| Lifting Capacity | - | 7,000 lbs |
| Lifting Time | - | 84 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 70 13/16" to 72 3/4" |
| Maximum Lifting Height With Extension Adapter | A | 72 3/4" to 75 11/16" |
| Maximum Lock Height Without Extension Adapter | - | 67 7/16" to 69 3/8" |
| Maximum Lock Height With Extension Adapter | - | 70 7/16" to 72 3/8" |
| Overall Height | B | 109 7/16" |
| Overall Width | C | 90 3/8" |
| Minimum Pad Height | D | 3 5/16" |
| Gross Weight | - | 1,942 lbs |
| Motor | - | 1.0 HP, 110V / 60Hz |
| Container Quantity | - | 12 units per 20-foot GP container |
Operating note: Position the SML-7 on a suitable level surface and confirm vehicle compatibility, lifting-point alignment, ceiling clearance and electrical requirements before operation.
Why Choose the AMGO SML-7?
- Fully mobile design for flexible workshop positioning.
- Professional 7,000-lb. lifting capacity.
- Patented adjustable AMGO bionic lifting arms.
- Convenient single-handed arm-lock release system.
- Low 3 5/16-inch minimum pad height.
- ETL-certified 1.0 HP power unit.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO SML-7 combines mobility, professional lifting capacity and space-saving operation in one adaptable automotive lift. It is well suited to commercial workshops and home garages that need the flexibility to move lifting equipment between work areas.
Before use, confirm the vehicle’s weight, approved lifting points, available clearance, floor suitability and applicable workshop safety requirements.
