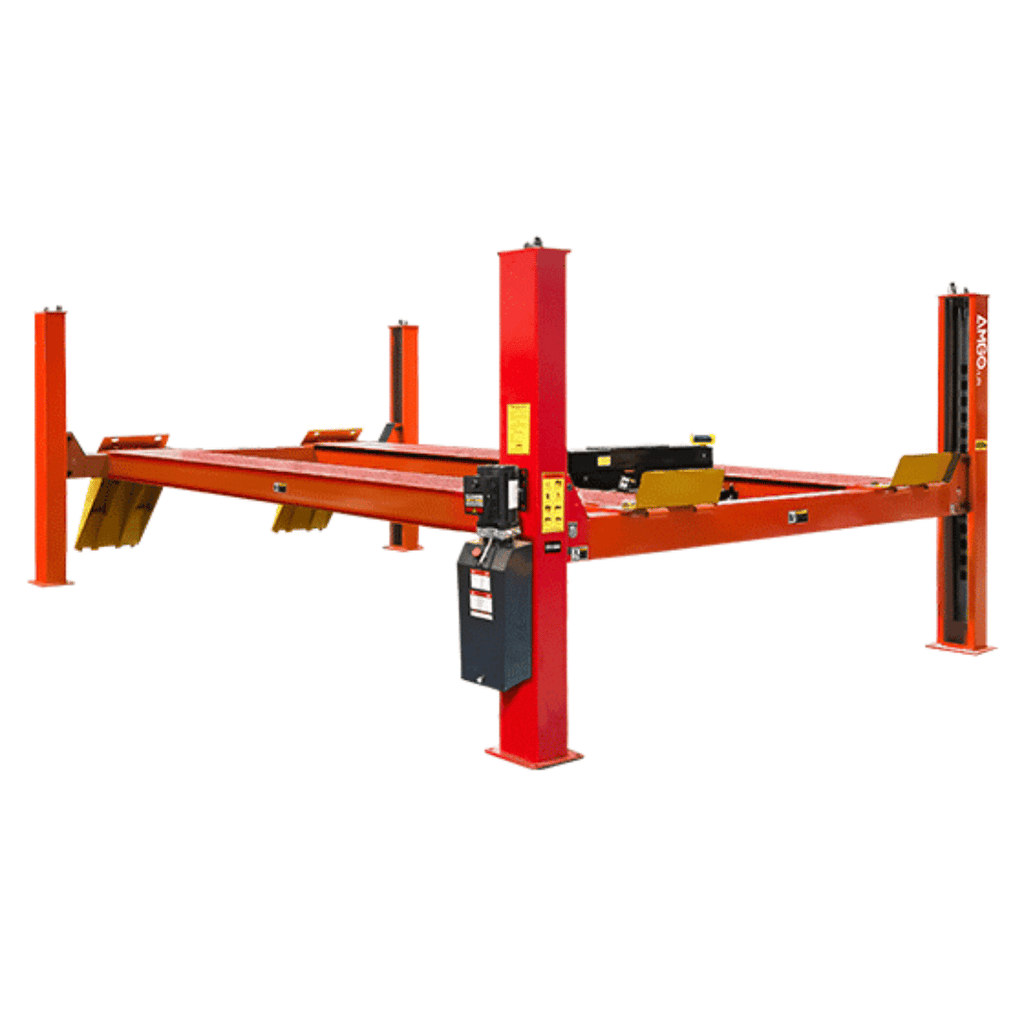

AMGO PRO-40E Extra-Long Super-Duty Four Post Lift – 40,000-lb Capacity
AMGO PRO-40E Extra-Long Super-Duty Four Post Lift – 40,000-lb Capacity
AMGO PRO-40E: A super-duty 40,000-lb. extra-long general-service four post lift with adjustable non-skid platforms, two runway-width settings, advanced safety protection and optional 20,000-lb. rolling-jack support.
About the AMGO PRO-40E
The AMGO PRO-40E builds on the super-duty performance of the PRO-40 with an additional 59 inches of length for servicing exceptionally long compatible commercial and industrial vehicles.
Its 40,000-lb. lifting capacity, oversized structure, adjustable non-skid platforms and two runway-width settings make it suitable for demanding heavy-vehicle maintenance facilities that need both exceptional strength and extended platform length.
Key Features
- 40,000-lb. lifting capacity supports compatible commercial, industrial, municipal and other super-duty vehicles.
- Extra-long design adds 59 inches of length compared with the PRO-40.
- Two runway-width settings adapt the lift to different large commercial vehicle configurations.
- Mechanical self-locking safety system uses an air-driven release for controlled lowering.
- Primary safety locks provide secure locking positions throughout the lifting range.
- Cable-slack protection system adds another level of operational safety.
- Aircraft-standard lifting cables support dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- Non-skid diamond platforms improve tire grip during loading and service.
- Adjustable platforms and safety-lock ladders support proper setup and synchronized locking.
- ETL-certified AMGO power unit comes standard.

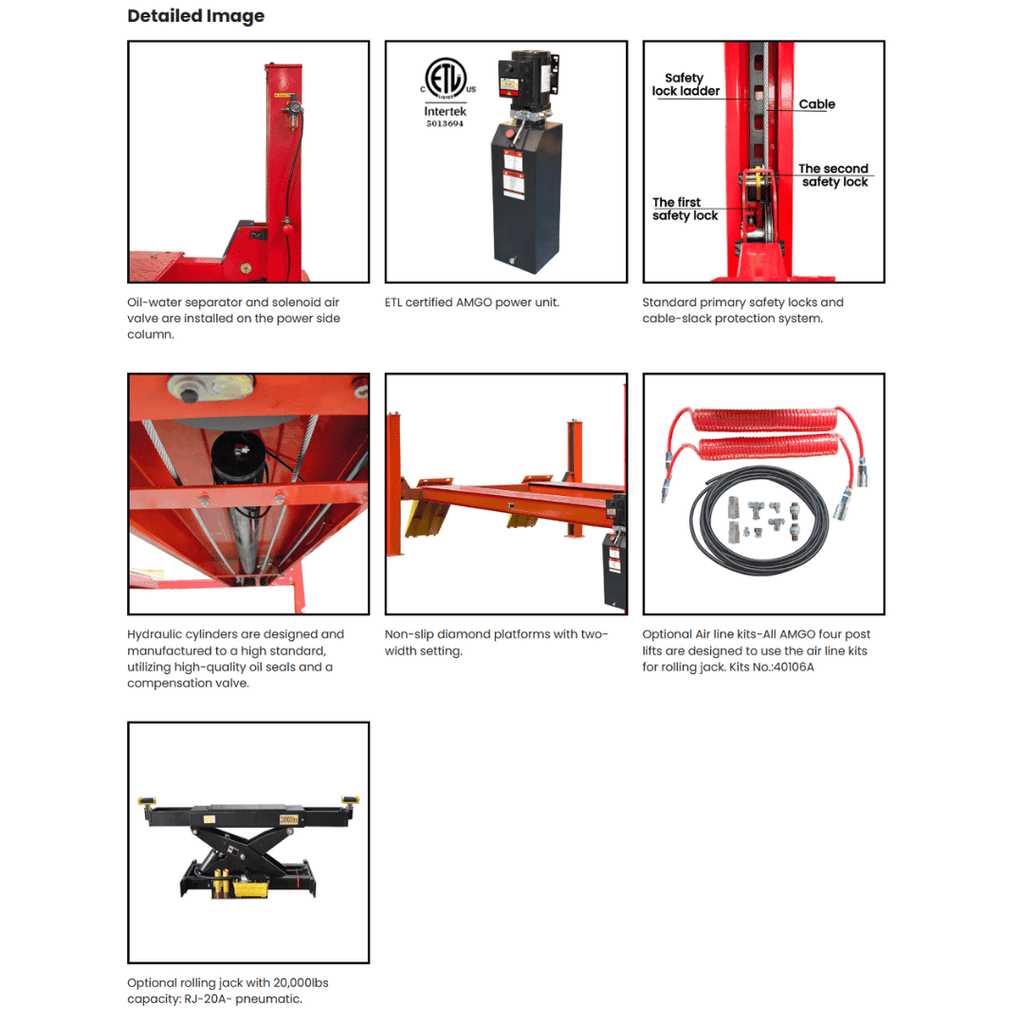

- Oil-water separator and solenoid air valve are installed on the power-side column.
Recommended Applications
Extra-Long Commercial Vehicles
The added 59 inches of length supports many compatible extended-wheelbase heavy vehicles.
Municipal and Industrial Fleets
The 40,000-lb. capacity supports many compatible municipal, utility and industrial fleet vehicles.
Heavy-Duty Maintenance Facilities
Oversized construction and two width settings accommodate demanding professional service applications.

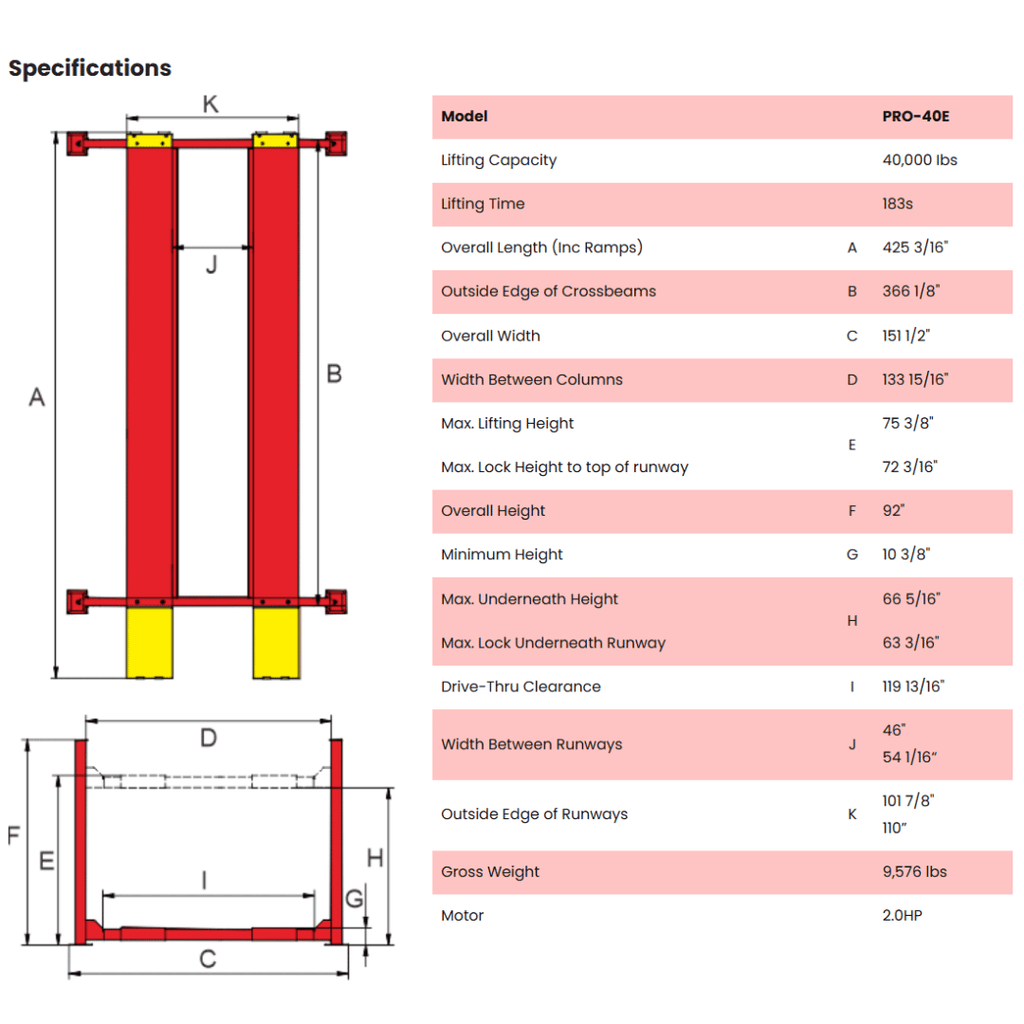

AMGO PRO-40E Specifications
| Specification | Reference | PRO-40E Details |
|---|---|---|
| Model | - | PRO-40E Super Duty General Service Four Post Lift |
| Lifting Capacity | - | 40,000 lbs |
| Lifting Time | - | 183 seconds |
| Overall Length Including Ramps | A | 425 3/16" |
| Outside Edge of Crossbeams | B | 366 1/8" |
| Overall Width | C | 151 1/2" |
| Width Between Columns | D | 133 15/16" |
| Maximum Lifting Height | E | 75 3/8" |
| Maximum Lock Height to Top of Runway | - | 72 3/16" |
| Overall Height | F | 92" |
| Minimum Height | G | 10 3/8" |
| Maximum Underneath Height | H | 66 5/16" |
| Maximum Lock Height Underneath Runway | - | 63 3/16" |
| Drive-Through Clearance | I | 119 13/16" |
| Width Between Runways | J | 46" or 54 1/16" |
| Outside Edge of Runways | K | 101 7/8" or 110" |
| Gross Weight | - | 9,576 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-40E indoors on a level reinforced concrete foundation using qualified personnel. Confirm concrete thickness and strength, compressed-air and electrical requirements, selected runway configuration, anchoring specifications, available bay length and all safety instructions stated in the official manual.
Optional Accessories
- Optional RJ-20A pneumatic hydraulic rolling jack — 20,000-lb. capacity.
- Optional air-line kit for pneumatic rolling-jack operation — Kit No. 40106A.
Why Choose the AMGO PRO-40E?
- Super-duty 40,000-lb. lifting capacity.
- 59 inches longer than the PRO-40.
- Designed for exceptionally long compatible heavy vehicles.
- Two runway-width settings improve vehicle compatibility.
- Primary locks and cable-slack protection come standard.
- Optional 20,000-lb. rolling jack supports wheel-free service.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-40E combines a 40,000-lb. lifting capacity with an extra-long platform structure for exceptionally long commercial and industrial vehicles. Its two runway-width settings, non-skid platforms, aircraft-standard cables, air-released safety locks and optional 20,000-lb. rolling jack make it a capable super-duty general-service solution.
Before purchasing or operating the lift, verify vehicle dimensions and weight, runway compatibility, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
