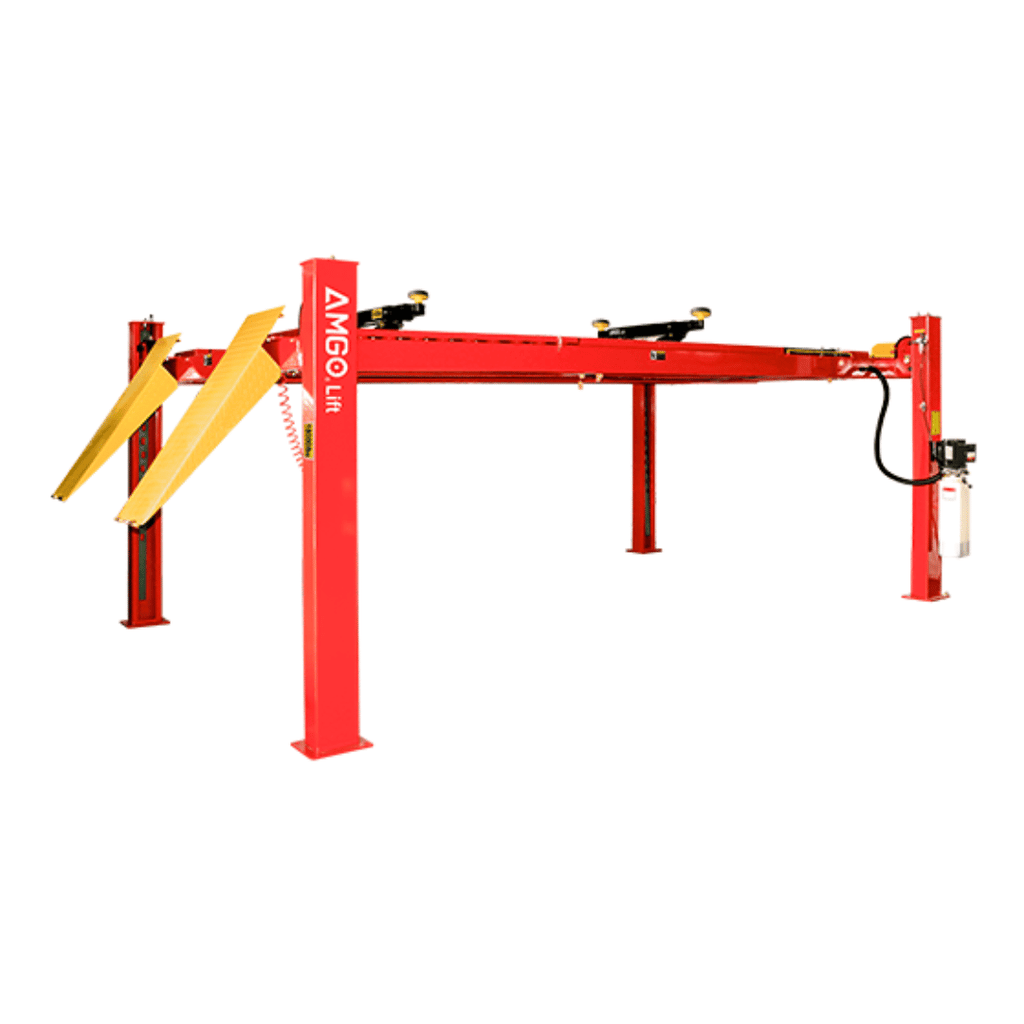

AMGO PRO-18A: A heavy-duty 18,000-lb. alignment four post lift with extended non-skid runways, integrated rear slip plates, adjustable turnplate pockets, air-released mechanical locks and cable-slack protection.
About the AMGO PRO-18A
The AMGO PRO-18A combines the heavy-duty platform and 18,000-lb. lifting capacity of the PRO-18 with integrated alignment equipment for high-volume automotive and commercial service facilities.
Extended non-skid runways, integrated rear slip plates and adjustable turnplate pockets support precise two-wheel and four-wheel alignment procedures across a wide range of compatible vehicle sizes and wheelbases.
Key Features

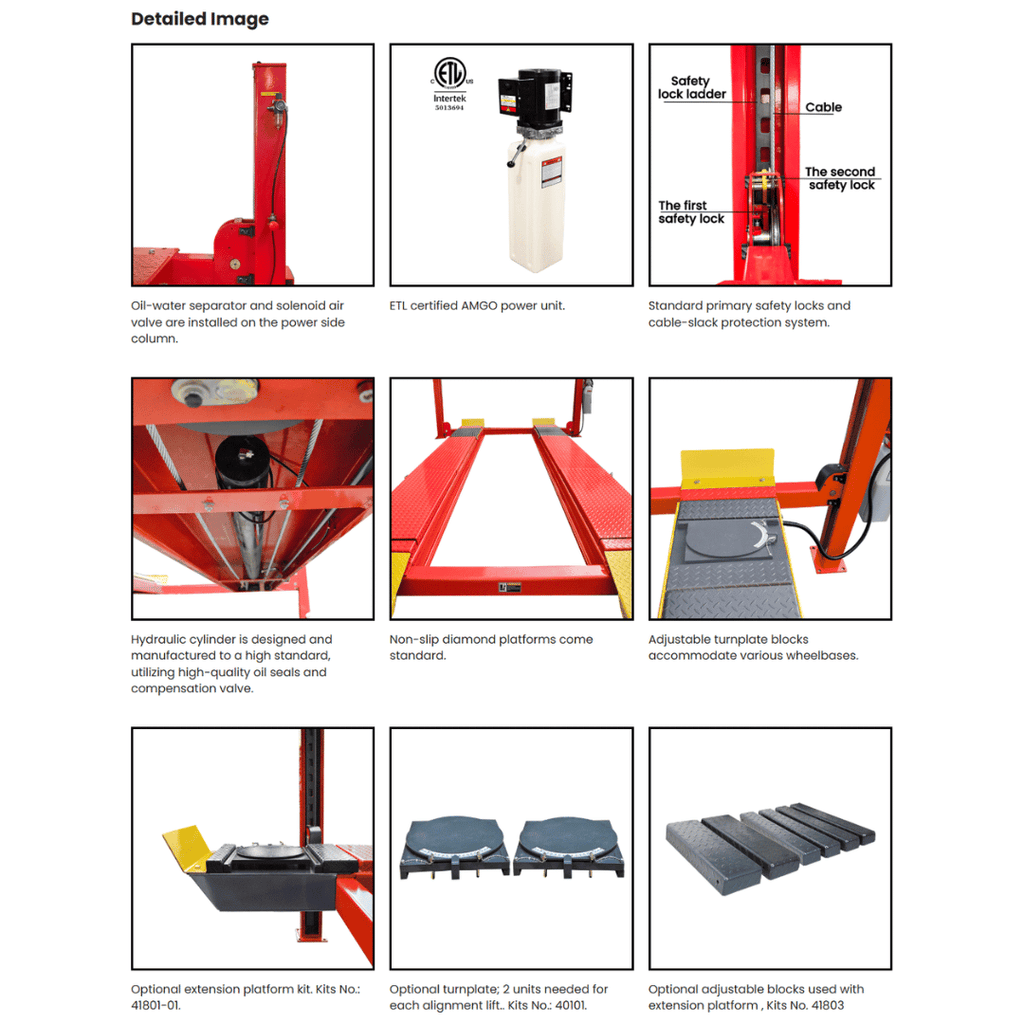

- 18,000-lb. lifting capacity supports compatible passenger vehicles, vans, pickups, trucks and commercial heavy-duty vehicles.
- Extended non-skid runways provide a stable platform for longer and heavier vehicles.
- Integrated rear slip plates support professional wheel-alignment procedures.
- Adjustable turnplate pockets accommodate different vehicle wheelbases.
- Mechanical self-locking safety system uses an air-driven release for controlled lowering.
- Primary safety locks provide secure locking positions throughout the lifting range.
- Cable-slack protection system adds another level of operational safety.
- Aircraft-standard lifting cables provide dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- Non-skid diamond platforms improve tire grip during vehicle loading and alignment service.
- ETL-certified AMGO power unit comes standard for dependable operation.
- Oil-water separator and solenoid air valve are installed on the power-side column.
Recommended Applications
Commercial Alignment Shops
Integrated slip plates and adjustable turnplate pockets support precise two-wheel and four-wheel alignment work.
Truck and Fleet Service
The 18,000-lb. capacity and extended runways support many compatible trucks and commercial fleet vehicles.
High-Volume Service Centers
Heavy-duty construction supports frequent alignment, inspection, maintenance and general repair work.

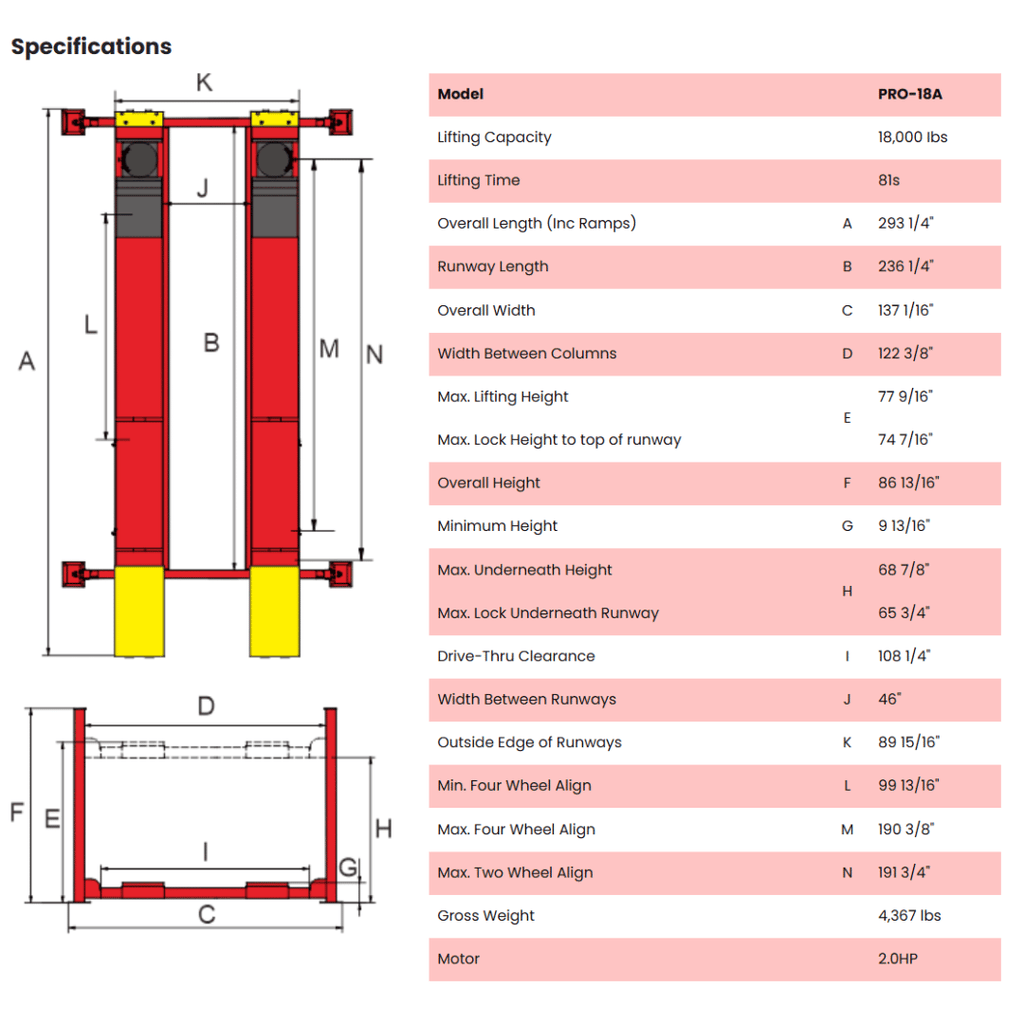

AMGO PRO-18A Specifications
| Specification | Reference | PRO-18A Details |
|---|---|---|
| Model | - | PRO-18A Alignment Service Four Post Lift |
| Lifting Capacity | - | 18,000 lbs |
| Lifting Time | - | 81 seconds |
| Overall Length Including Ramps | A | 293 1/4" |
| Runway Length | B | 236 1/4" |
| Overall Width | C | 137 1/16" |
| Width Between Columns | D | 122 3/8" |
| Maximum Lifting Height | E | 77 9/16" |
| Maximum Lock Height to Top of Runway | - | 74 7/16" |
| Overall Height | F | 86 13/16" |
| Minimum Height | G | 9 13/16" |
| Maximum Underneath Height | H | 68 7/8" |
| Maximum Lock Height Underneath Runway | - | 65 3/4" |
| Drive-Through Clearance | I | 108 1/4" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 89 15/16" |
| Minimum Four-Wheel Alignment Wheelbase | L | 99 13/16" |
| Maximum Four-Wheel Alignment Wheelbase | M | 190 3/8" |
| Maximum Two-Wheel Alignment Wheelbase | N | 191 3/4" |
| Gross Weight | - | 4,367 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-18A indoors on a level reinforced concrete foundation using qualified personnel. Confirm concrete thickness and strength, electrical and compressed-air requirements, available bay dimensions, anchoring specifications and all safety instructions stated in the official manual.
Alignment Equipment and Optional Accessories
- Integrated rear slip plates supplied for professional alignment service.
- Adjustable turnplate pockets accommodate different vehicle wheelbases.
- Optional turnplates — Kit No. 40101; two units are required for each alignment lift.

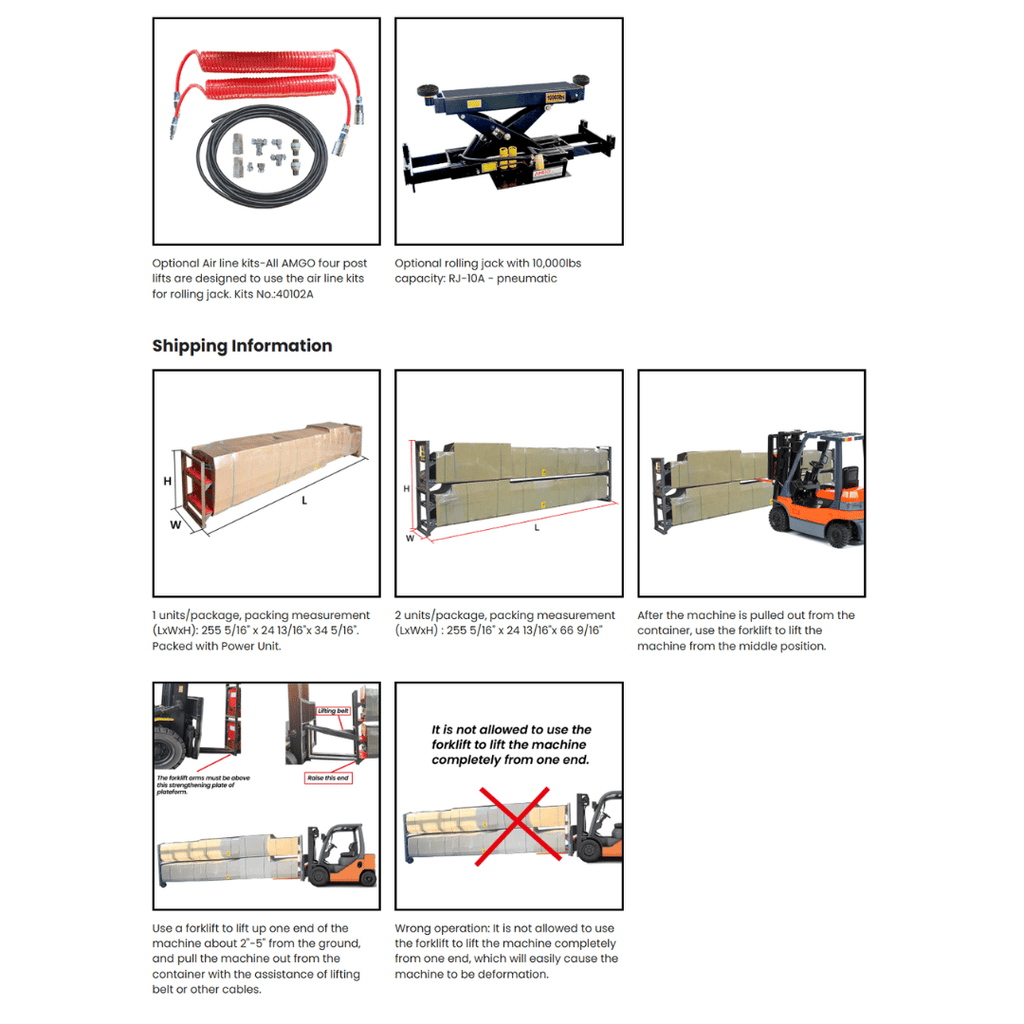

- Optional RJ-10A pneumatic hydraulic rolling jack — 10,000-lb. capacity.
- Optional air-line kit for rolling-jack operation — Kit No. 40102A.
- Optional extension platform kit — Kit No. 41801-01.
- Optional adjustable blocks for the extension platform — Kit No. 41803.
Why Choose the AMGO PRO-18A?
- Heavy-duty 18,000-lb. lifting capacity.
- Integrated slip plates for professional wheel alignment.
- Adjustable turnplate pockets fit different wheelbases.
- Maximum four-wheel alignment wheelbase of 190 3/8 inches.
- Maximum two-wheel alignment wheelbase of 191 3/4 inches.
- Optional 10,000-lb. rolling jack supports wheel-free service.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-18A combines heavy-duty 18,000-lb. lifting strength with integrated alignment functionality. Its extended runways, rear slip plates, adjustable turnplate pockets, air-released locks, cable-slack protection and optional 10,000-lb. rolling jack make it a capable solution for professional alignment and commercial service facilities.
Before purchasing or operating the lift, verify vehicle dimensions and weight, wheelbase compatibility, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
