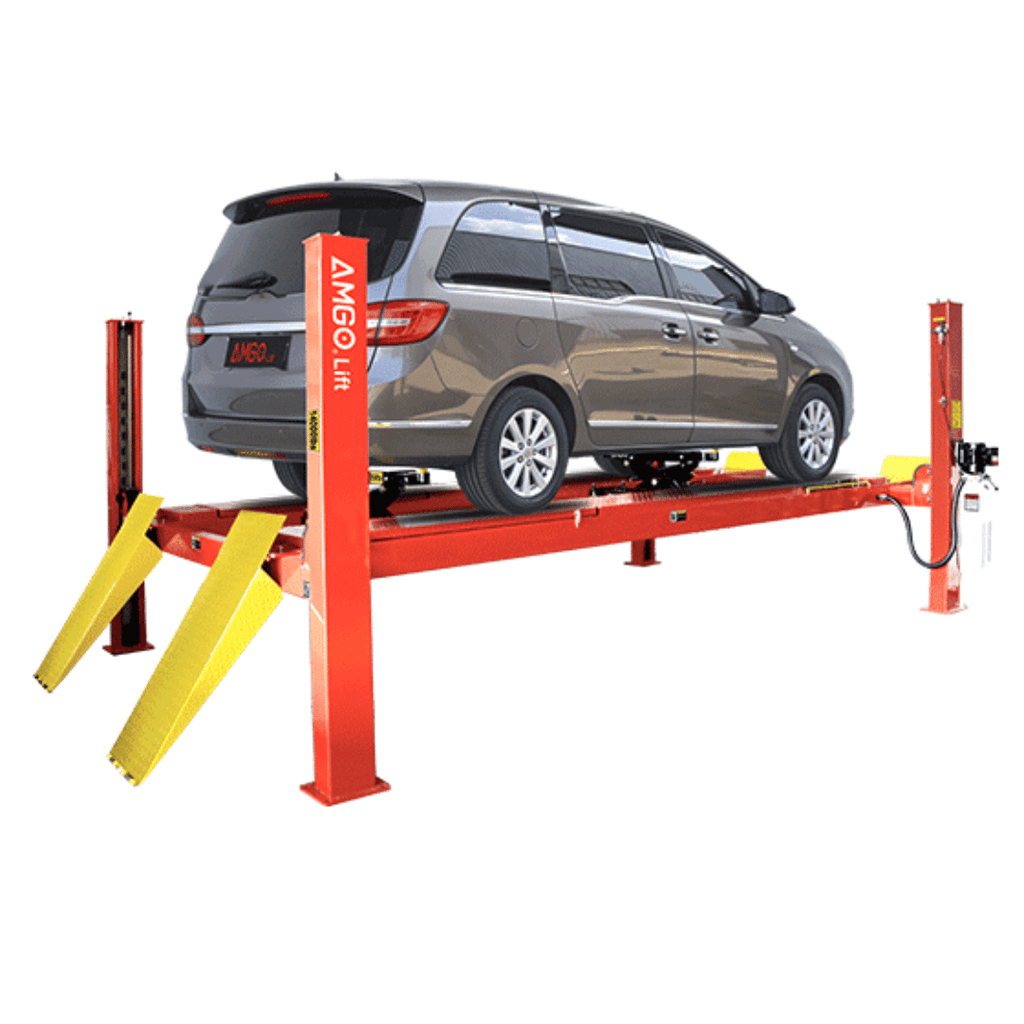

AMGO PRO-14AE: A commercial-grade 14,000-lb. extra-long alignment four post lift with integrated rear slip plates, adjustable turnplate pockets, air-released safety locks and runways engineered for long-wheelbase vehicles.
About the AMGO PRO-14AE
The AMGO PRO-14AE combines the extra-long runway design of the PRO-14E with integrated wheel-alignment equipment for professional service facilities. Its 14,000-lb. capacity supports a wide range of compatible vehicles, from passenger cars and vans to pickups and heavy-duty commercial trucks.
Integrated rear slip plates and adjustable turnplate pockets support two-wheel and four-wheel alignment procedures, while the 229-inch runways provide the length required for many long-wheelbase vehicles.
Key Features
- 14,000-lb. lifting capacity supports compatible cars, vans, pickups, trucks and commercial vehicles.
- Extra-long 229-inch runways accommodate many compatible long-wheelbase vehicles.
- Integrated rear slip plates support professional wheel-alignment procedures.
- Adjustable turnplate pockets accommodate different wheelbases and alignment configurations.

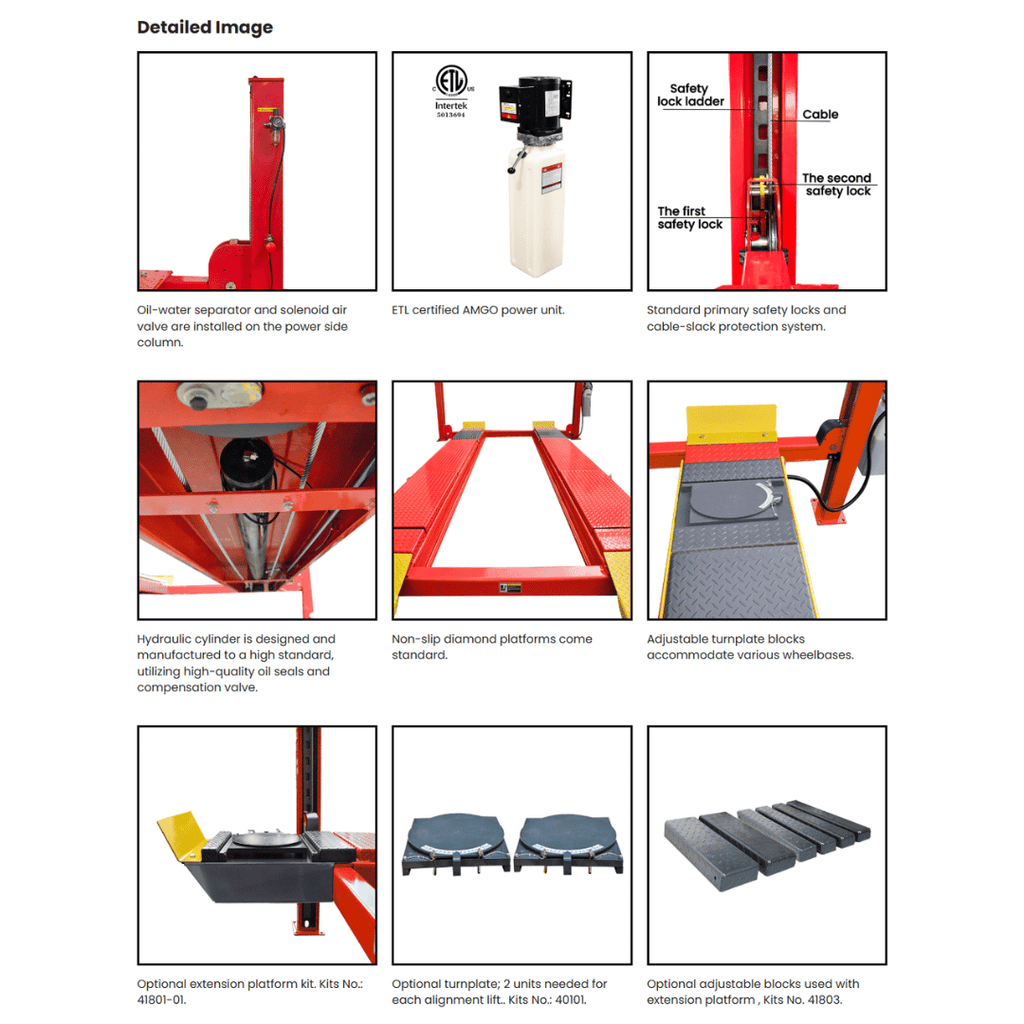

- Mechanical self-locking safety system uses an air-driven release for controlled lowering.
- Primary multiple safety locks provide secure locking points throughout the lifting range.
- Cable-slack protection system comes standard for an additional level of operational safety.
- Aircraft-standard lifting cables provide dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- Non-skid diamond platforms improve tire grip during loading and alignment service.
- ETL-certified AMGO power unit comes standard for dependable operation.
- Oil-water separator and solenoid air valve are installed on the power-side column.
Recommended Applications
Professional Alignment Shops
Integrated slip plates and adjustable turnplate pockets support precise two-wheel and four-wheel alignment work.
Long-Wheelbase Vehicle Service
The extra-long runways support many compatible trucks, vans and commercial vehicles with extended wheelbases.
High-Volume Service Centers
Commercial construction supports frequent alignment, inspection, maintenance and general repair tasks.

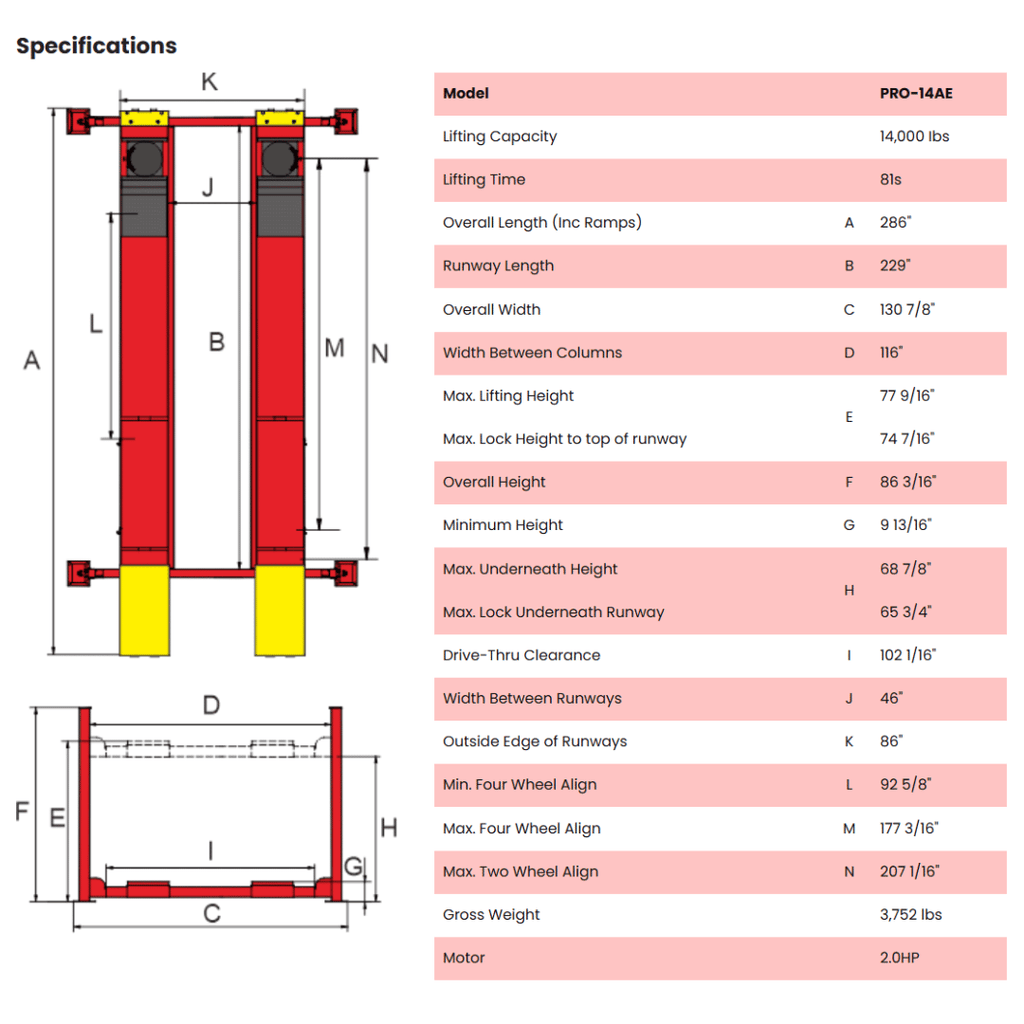

AMGO PRO-14AE Specifications
| Specification | Reference | PRO-14AE Details |
|---|---|---|
| Model | - | PRO-14AE Alignment Service Four Post Lift |
| Lifting Capacity | - | 14,000 lbs |
| Lifting Time | - | 81 seconds |
| Overall Length Including Ramps | A | 286" |
| Runway Length | B | 229" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Maximum Lifting Height | E | 77 9/16" |
| Maximum Lock Height to Top of Runway | - | 74 7/16" |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 9 13/16" |
| Maximum Underneath Height | H | 68 7/8" |
| Maximum Lock Height Underneath Runway | - | 65 3/4" |
| Drive-Through Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Minimum Four-Wheel Alignment Wheelbase | L | 92 5/8" |
| Maximum Four-Wheel Alignment Wheelbase | M | 177 3/16" |
| Maximum Two-Wheel Alignment Wheelbase | N | 207 1/16" |
| Gross Weight | - | 3,752 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-14AE indoors on a flat reinforced concrete foundation using qualified personnel. Confirm concrete strength and thickness, electrical and compressed-air requirements, bay dimensions, anchoring specifications and all safety instructions stated in the official manual.
Alignment Equipment and Optional Accessories
- Integrated rear slip plates supplied for professional alignment service.
- Adjustable turnplate pockets accommodate different vehicle wheelbases.
- Optional turnplates — Kit No. 40101; two units are required for each alignment lift.

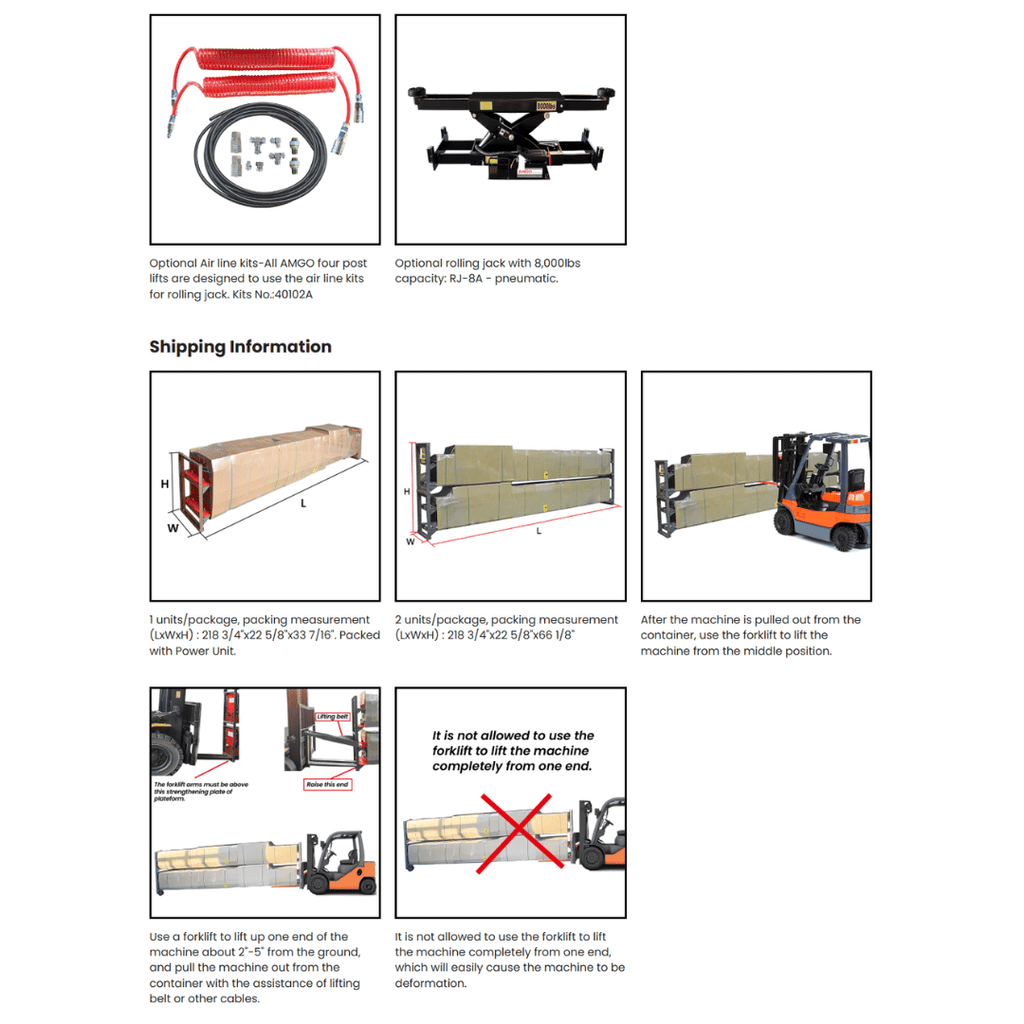

- Optional RJ-8A pneumatic hydraulic rolling jack — 8,000-lb. capacity.
- Optional air-line kit for rolling-jack operation — Kit No. 40102A.
- Optional extension platform kit — Kit No. 41801-01.
- Optional adjustable blocks for the extension platform — Kit No. 41803.
Why Choose the AMGO PRO-14AE?
- Commercial-grade 14,000-lb. lifting capacity.
- Extra-long 229-inch runways support extended wheelbases.
- Integrated slip plates for professional wheel alignment.
- Maximum two-wheel alignment wheelbase of 207 1/16 inches.
- Air-released mechanical safety system simplifies operation.
- Optional 8,000-lb. rolling jack supports wheel-free service.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-14AE combines heavy-duty 14,000-lb. lifting strength, extra-long runways and integrated alignment functionality. Its slip plates, adjustable turnplate pockets, air-released safety locks, cable-slack protection and long alignment range make it a strong solution for professional shops servicing passenger vehicles, trucks and long-wheelbase commercial vehicles.
Before purchasing or operating the lift, verify vehicle dimensions and weight, wheelbase compatibility, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
