AMGO PRO-14 Four Post General Service Lift – 14,000-lb Capacity
AMGO PRO-14 Four Post General Service Lift – 14,000-lb Capacity

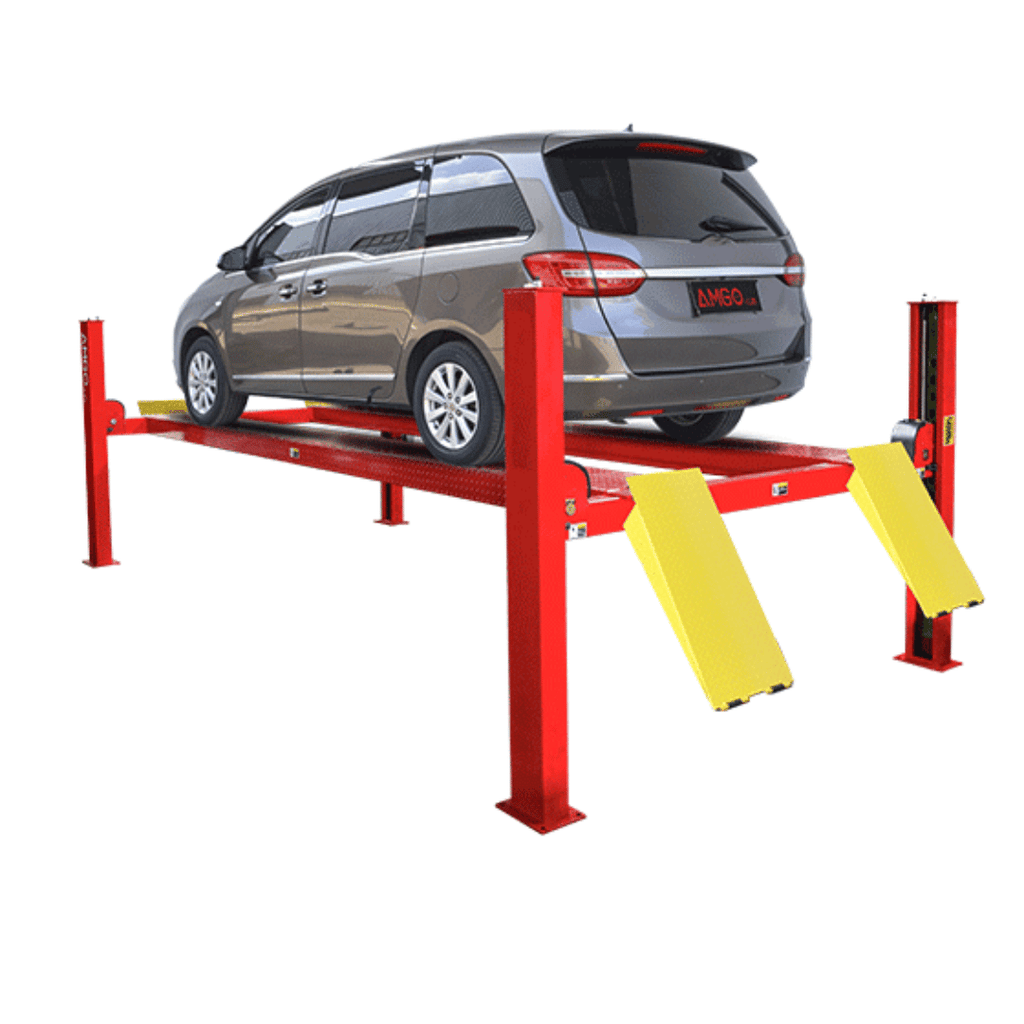

AMGO PRO-14: A commercial-grade 14,000-lb. general-service four post lift with adjustable runway positioning, double safety locks, air-powered lock release and heavy-duty non-skid platforms.
About the AMGO PRO-14
The AMGO PRO-14 is a commercial-grade four post lift engineered for general service work involving compatible cars, vans, pickups, trucks and motorhomes. Its 14,000-lb. lifting capacity and heavy-duty construction make it suitable for demanding professional workshops.
The lift combines adjustable runway positioning with a dual safety mechanism and multiple lock points. The safety locks engage mechanically and release using compressed air for controlled, convenient operation.
Key Features
- 14,000-lb. lifting capacity supports compatible cars, vans, pickups, trucks and motorhomes.
- Commercial-grade heavy-duty construction is designed for regular professional service work.
- Adjustable runway positioning helps accommodate vehicles with different wheel tracks.

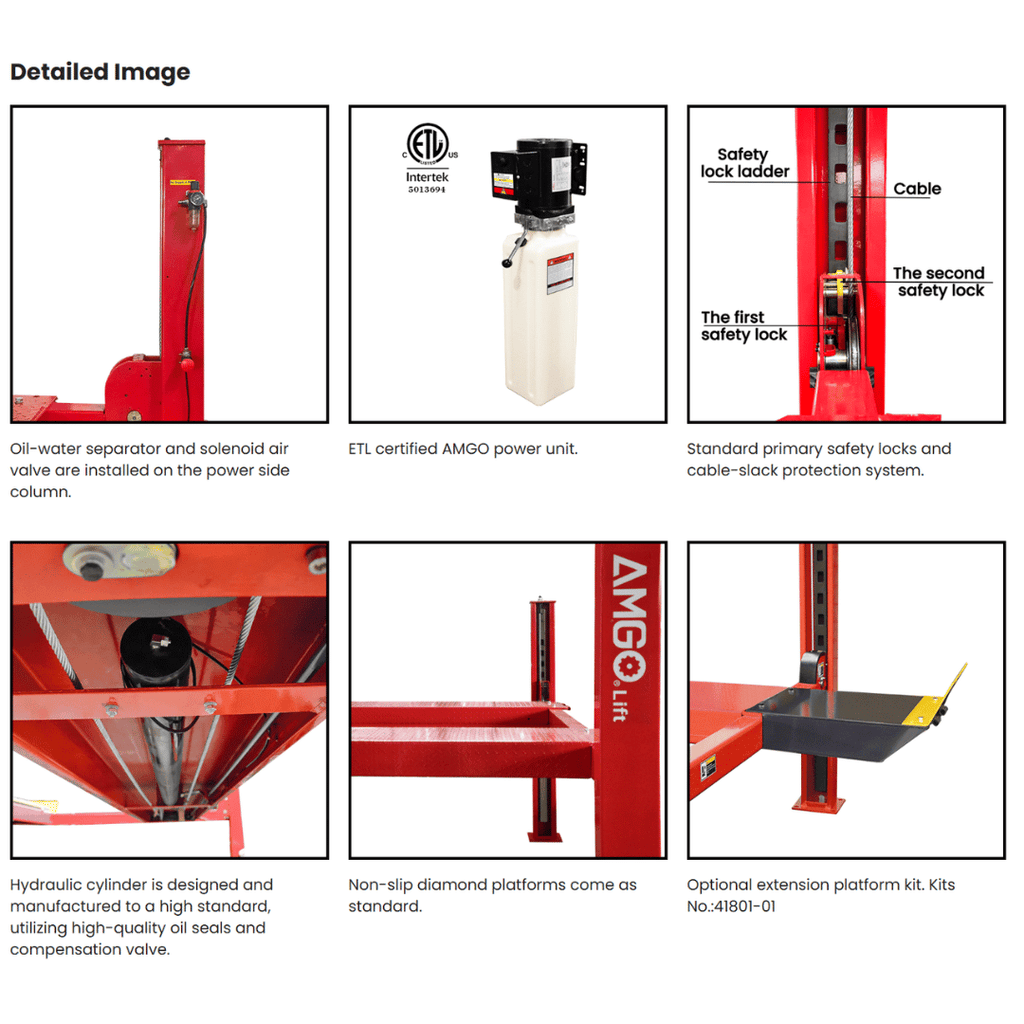

- Mechanical self-locking safety system uses an air-powered release for controlled lowering.
- Primary multiple safety locks provide secure locking points throughout the lifting range.
- Secondary safety locks create a double-safety locking arrangement.
- Cable-slack protection system comes standard for additional operational protection.
- Aircraft-standard lifting cables provide dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- Reinforced non-skid diamond platforms improve tire grip during loading and servicing.
- ETL-certified AMGO power unit comes standard.
- Oil-water separator and solenoid air valve are installed on the power-side column.
Recommended Applications
Commercial Service Shops
Suitable for inspections, preventive maintenance and general repair work in professional automotive facilities.
Truck and Motorhome Service
The 14,000-lb. capacity supports many compatible trucks, commercial vans and motorhomes.
Mixed Vehicle Fleets
The heavy-duty runways and adjustable positioning accommodate a broad range of compatible wheel tracks.

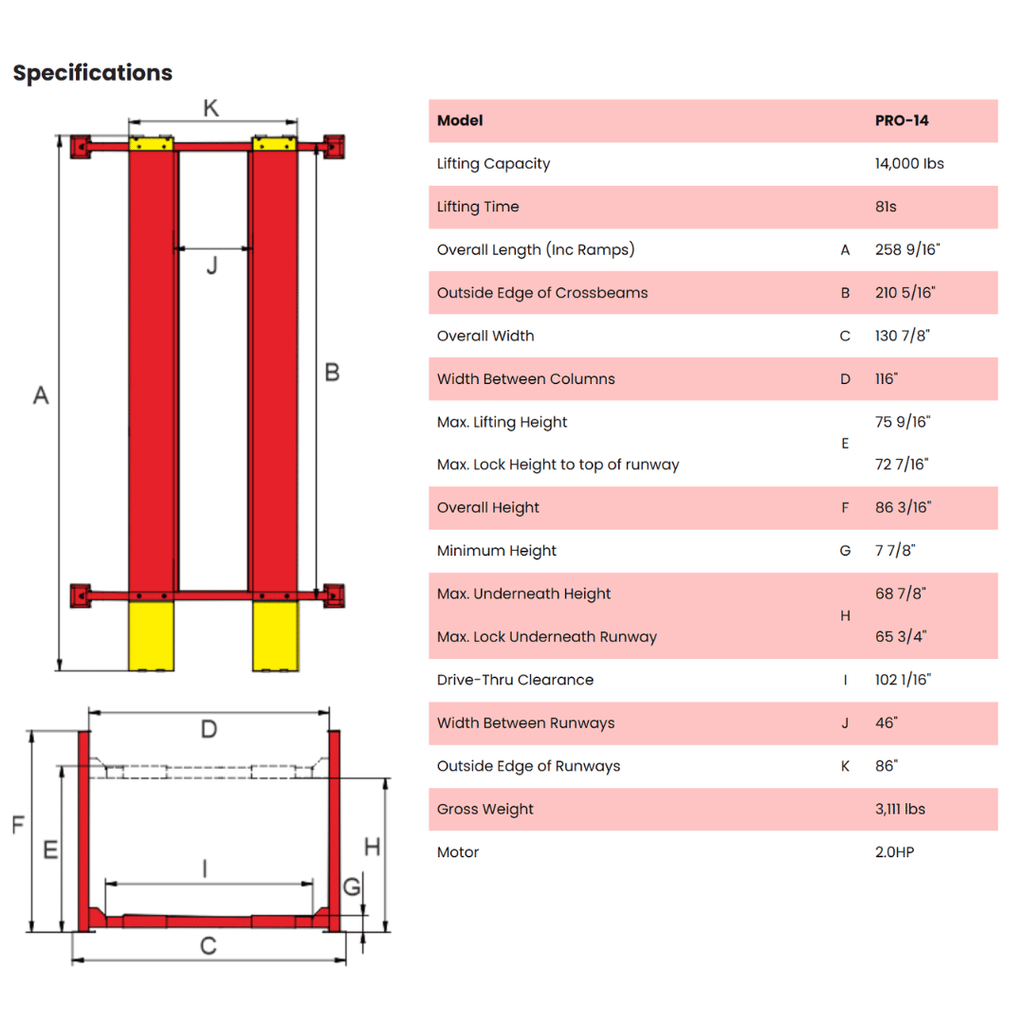

AMGO PRO-14 Specifications
| Specification | Reference | PRO-14 Details |
|---|---|---|
| Model | - | PRO-14 General Service Four Post Lift |
| Lifting Capacity | - | 14,000 lbs |
| Lifting Time | - | 81 seconds |
| Overall Length Including Ramps | A | 258 9/16" |
| Overall Length Excluding Ramps | B | 210 5/16" |
| Overall Width | C | 130 7/8" |
| Width Between Columns | D | 116" |
| Maximum Lifting Height | E | 75 9/16" |
| Maximum Lock Height to Top of Runway | - | 72 7/16" |
| Overall Height | F | 86 3/16" |
| Minimum Height | G | 7 7/8" |
| Maximum Underneath Height | - | 68 7/8" |
| Maximum Lock Height Underneath Runway | H | 65 3/4" |
| Drive-Through Clearance | I | 102 1/16" |
| Width Between Runways | J | 46" |
| Outside Edge of Runways | K | 86" |
| Gross Weight | - | 3,111 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-14 indoors on a flat reinforced concrete foundation using qualified personnel. The official manual specifies concrete at least 4 inches thick with a minimum strength of 3,000 psi, an air supply of 0.8 MPa and electrical installation by a licensed electrician. Confirm all bay dimensions, anchoring and local safety requirements before installation.

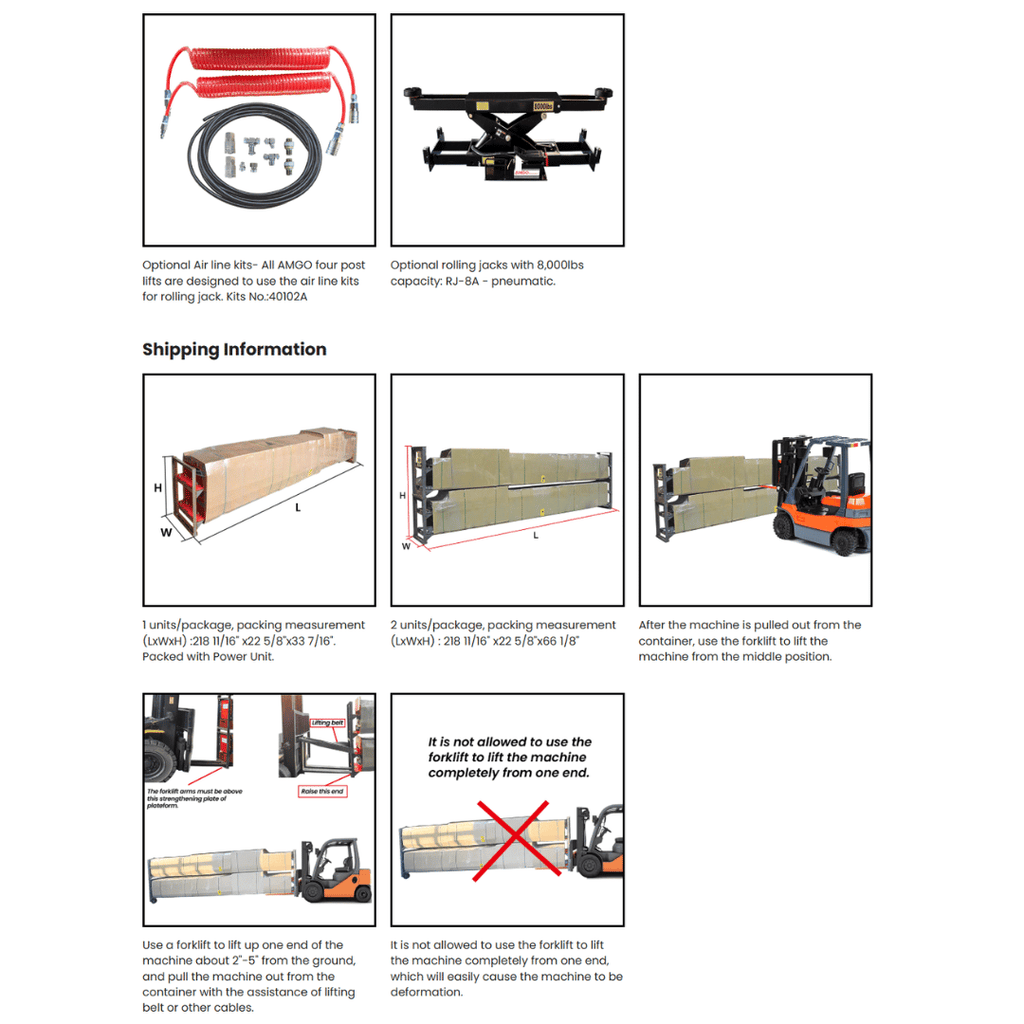

Optional Accessories
- Optional RJ-8A pneumatic hydraulic rolling jack — 8,000-lb. capacity.
- Optional air-line kit for rolling-jack operation — Kit No. 40102A.
- Optional extension platform kit — Kit No. 41801-01.
- Optional adjustable blocks for use with the extension platform — Kit No. 41803.
Why Choose the AMGO PRO-14?
- Commercial-grade 14,000-lb. lifting capacity.
- Suitable for cars, vans, trucks and compatible motorhomes.
- Adjustable runway positioning supports different wheel tracks.
- Primary and secondary locks provide double-safety protection.
- Air-powered safety release simplifies lowering operation.
- Optional 8,000-lb. rolling jack expands service capability.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-14 combines heavy-duty 14,000-lb. lifting performance with reinforced non-skid platforms, adjustable runway positioning and a comprehensive double-safety lock system. It is a practical general-service solution for professional workshops handling passenger vehicles, vans, trucks and compatible motorhomes.
Before purchasing or operating the lift, verify vehicle dimensions and weight, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
