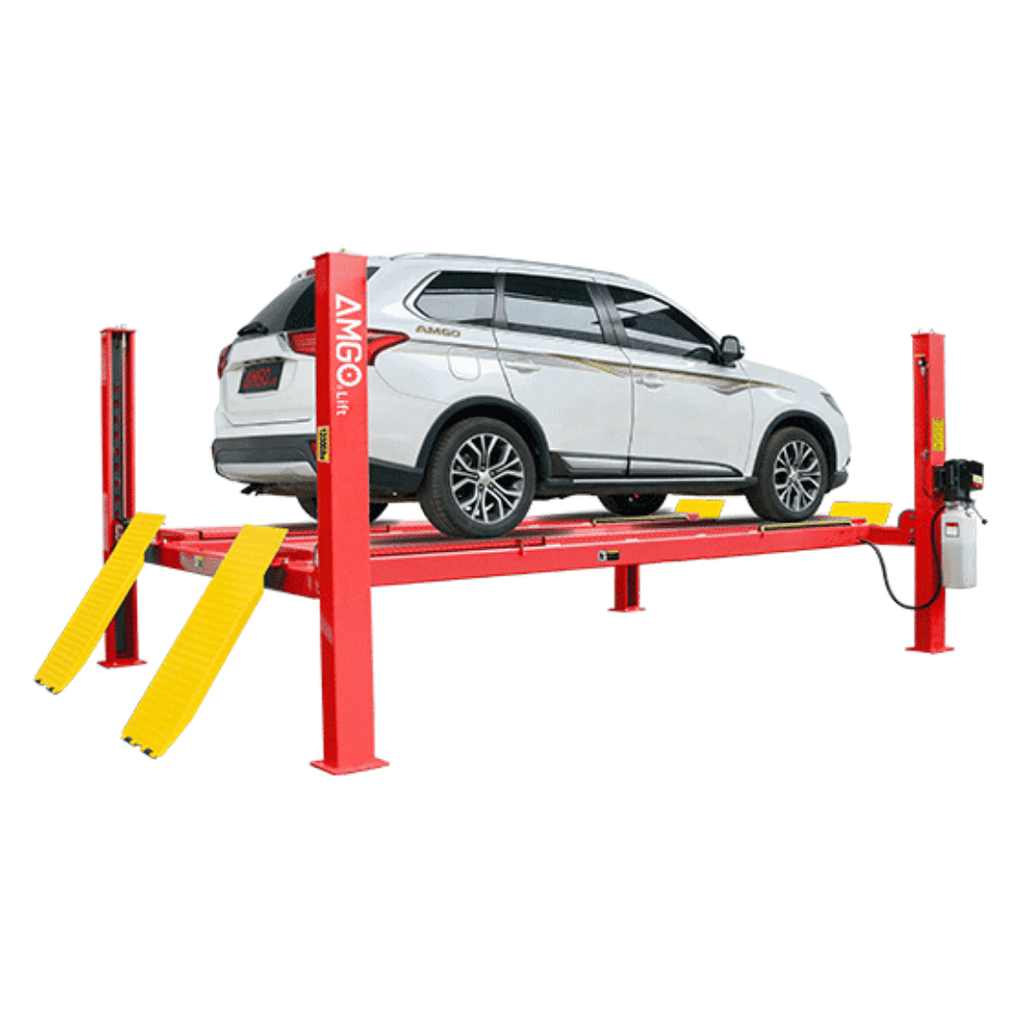

AMGO PRO-12ASX: An extra-wide 12,000-lb. alignment four post lift with integrated rear slip plates, adjustable turnplate pockets, stepless runway-width adjustment and air-released mechanical safety locks.
About the AMGO PRO-12ASX
The AMGO PRO-12ASX combines the extra-wide commercial design of the PRO-12SX with integrated wheel-alignment functionality. Its 12,000-lb. capacity supports many compatible cars, SUVs, pickups and vans used in professional service and alignment facilities.
Integrated rear slip plates and adjustable turnplate pockets support two-wheel and four-wheel alignment procedures, while stepless runway-width adjustment accommodates different vehicle wheel tracks. The extra-wide column spacing and generous drive-through clearance simplify vehicle entry and positioning.
Key Features
- 12,000-lb. lifting capacity supports compatible passenger cars, SUVs, pickups and vans.
- Integrated rear slip plates support professional wheel-alignment procedures.
- Adjustable turnplate pockets accommodate different vehicle wheelbases.
- Extra-wide commercial design provides 118 1/8 inches of clear space between the columns.
- 104 3/16-inch drive-through clearance simplifies vehicle entry and positioning.
- Stepless runway-width adjustment fits a broad range of vehicle wheel tracks.

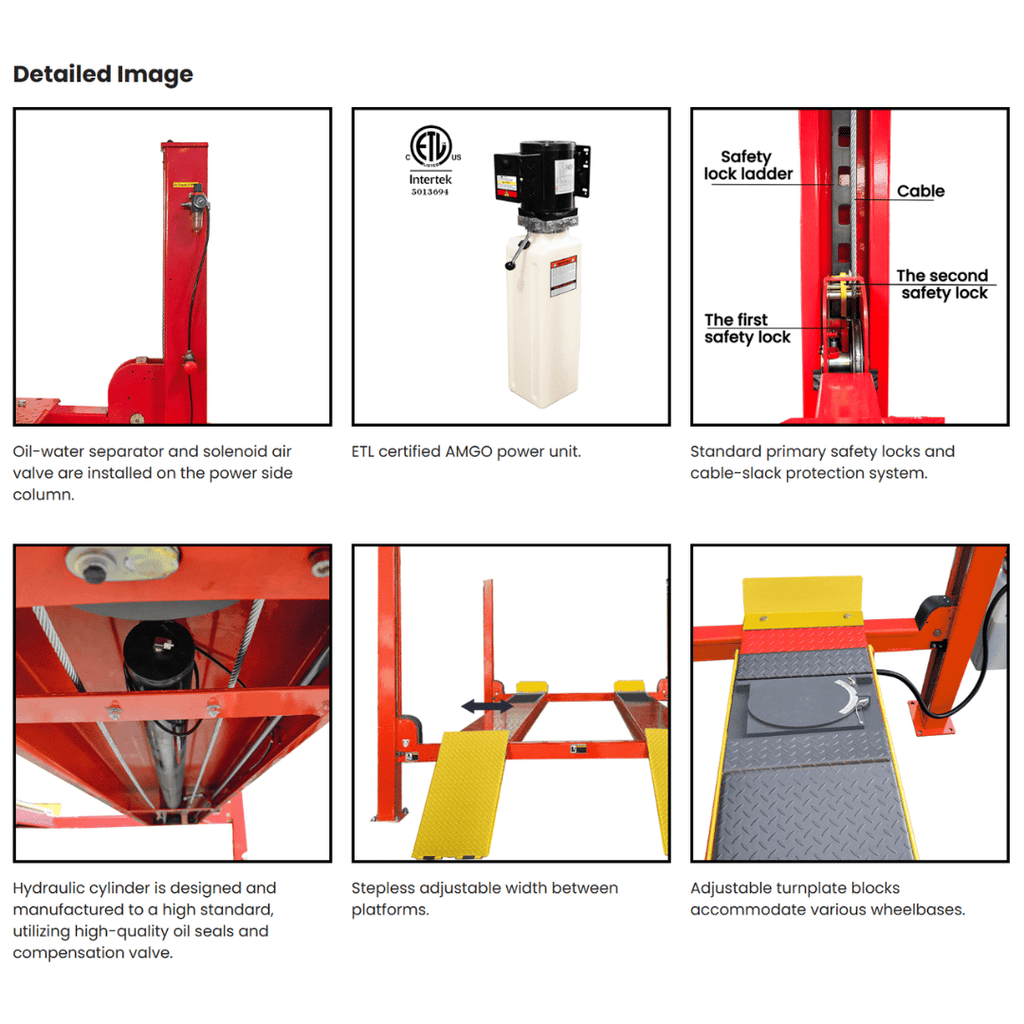

- Mechanical self-locking safety system uses an air-driven release for convenient lowering.
- Primary multiple safety locks provide secure locking positions throughout the lifting range.
- Cable-slack protection system adds another level of operational safety.
- Aircraft-standard lifting cables support dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- ETL-certified AMGO power unit comes standard for dependable electrical and hydraulic operation.
Recommended Applications
Professional Alignment Shops
Integrated slip plates and adjustable turnplate pockets support precise two-wheel and four-wheel alignment work.
High-Volume Service Centers
The commercial construction supports frequent alignment, inspection, maintenance and general automotive service tasks.
Wide Vehicle Service
The extra-wide columns, generous drive-through clearance and adjustable runways simplify positioning compatible wider vehicles.

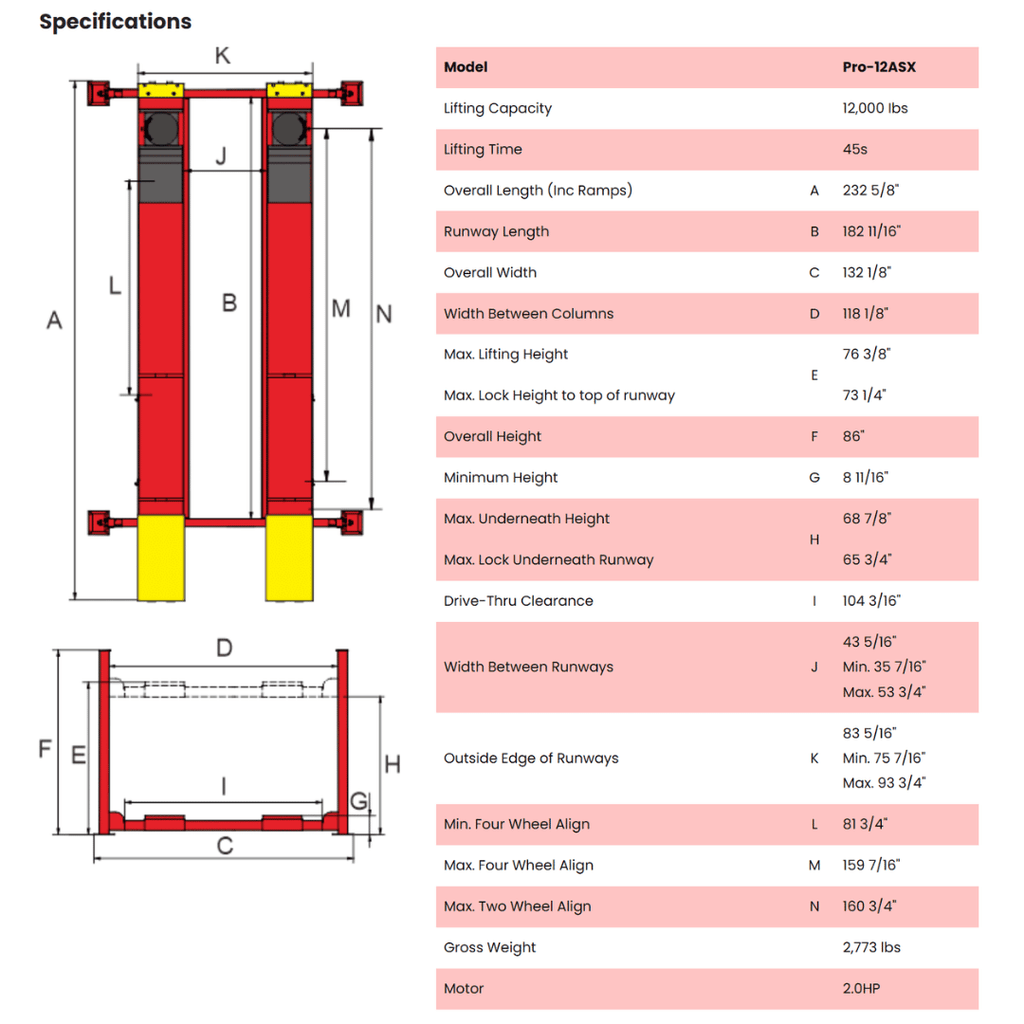

AMGO PRO-12ASX Specifications
| Specification | Reference | PRO-12ASX Details |
|---|---|---|
| Model | - | PRO-12ASX Alignment Service Four Post Lift |
| Lifting Capacity | - | 12,000 lbs |
| Lifting Time | - | 45 seconds |
| Overall Length Including Ramps | A | 232 5/8" |
| Runway Length | B | 182 11/16" |
| Overall Width | C | 132 1/8" |
| Width Between Columns | D | 118 1/8" |
| Maximum Lifting Height | E | 76 3/8" |
| Maximum Lock Height to Top of Runway | - | 73 1/4" |
| Overall Height | F | 86" |
| Minimum Height | G | 8 11/16" |
| Maximum Underneath Height | H | 68 7/8" |
| Maximum Lock Height Underneath Runway | - | 65 3/4" |
| Drive-Through Clearance | I | 104 3/16" |
| Standard Width Between Runways | J | 43 5/16" |
| Adjustable Width Between Runways | J | 35 7/16" to 53 3/4" |
| Standard Outside Edge of Runways | K | 83 5/16" |
| Adjustable Outside Edge of Runways | K | 75 7/16" to 93 3/4" |
| Minimum Four-Wheel Alignment Wheelbase | L | 81 3/4" |
| Maximum Four-Wheel Alignment Wheelbase | M | 159 7/16" |
| Maximum Two-Wheel Alignment Wheelbase | N | 160 3/4" |
| Gross Weight | - | 2,773 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-12ASX indoors on a flat reinforced concrete foundation using qualified personnel. The official manual specifies concrete at least 4 inches thick with a minimum strength of 3,000 psi, an air supply of 0.8 MPa and a suitable 2 HP electrical source. Confirm all bay dimensions, anchoring and local safety requirements before installation.

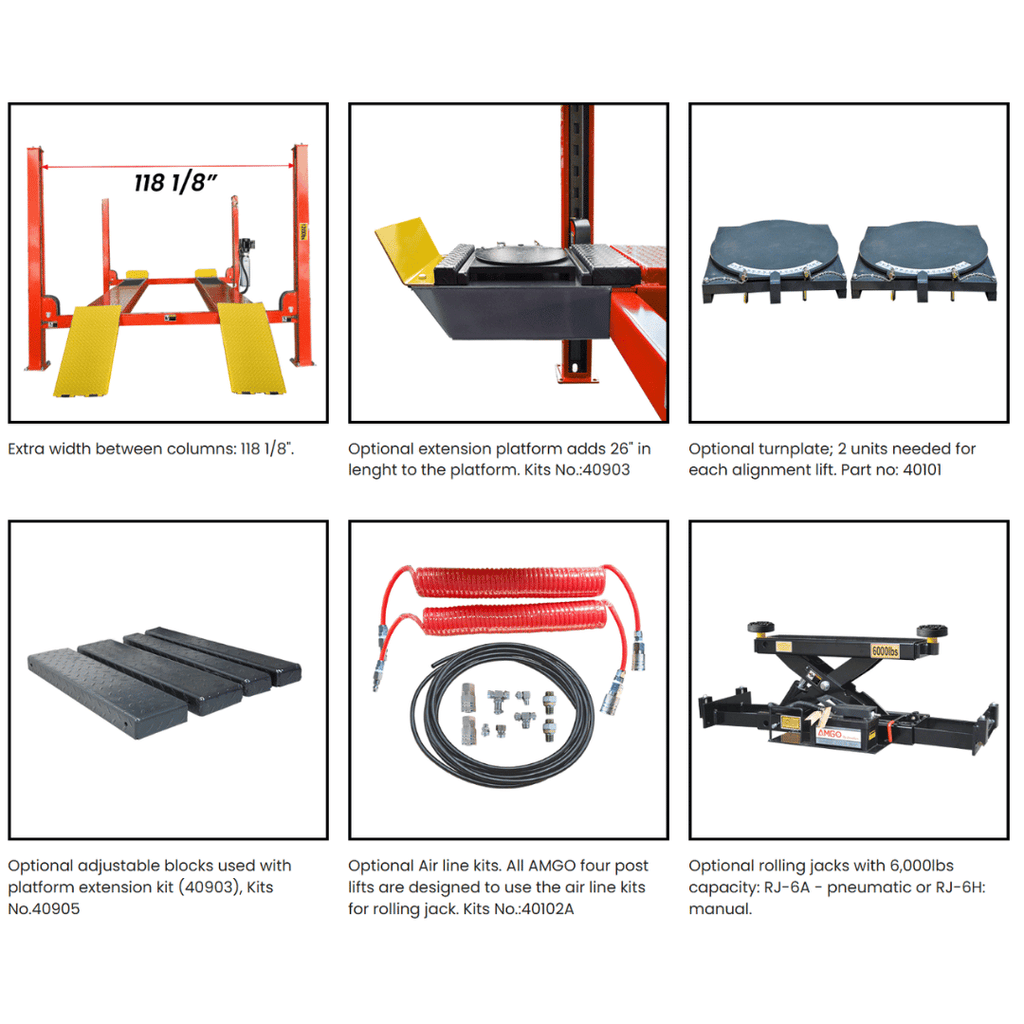

Alignment Equipment and Optional Accessories
- Integrated rear slip plates supplied for professional alignment service.
- Adjustable turnplate pockets accommodate different vehicle wheelbases.
- Optional turnplates — Part No. 40101; two units are required for each alignment lift.
- Optional 26-inch runway extension platform — Kit No. 40903.
- Optional adjustable blocks for use with the extension platform — Kit No. 40905.
- Optional air-line kit for pneumatic rolling-jack operation — Kit No. 40102A.
- Optional RJ-6H manual hydraulic rolling jack — 6,000-lb. capacity.
- Optional RJ-6A pneumatic hydraulic rolling jack — 6,000-lb. capacity.
Why Choose the AMGO PRO-12ASX?
- Commercial 12,000-lb. lifting capacity.
- Integrated alignment equipment for specialized wheel service.
- More than 118 inches between columns.
- Over 104 inches of drive-through clearance.
- Stepless runway-width adjustment fits different wheel tracks.
- Optional rolling jacks support wheel-free service work.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-12ASX combines commercial 12,000-lb. lifting strength, extra-wide dimensions and integrated alignment functionality. Its rear slip plates, adjustable turnplate pockets, stepless runway adjustment, air-released safety locks and cable-slack protection make it a practical solution for high-volume alignment and general service facilities.
Before purchasing or operating the lift, verify vehicle dimensions and weight, wheelbase compatibility, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
