AMGO PRO-12 Four Post General Service Lift – 12,000-lb Capacity
AMGO PRO-12 Four Post General Service Lift – 12,000-lb Capacity
AMGO PRO-12: A commercial-grade 12,000-lb. four post lift for general vehicle service, featuring stepless runway-width adjustment, air-released mechanical locks and cable-slack protection.

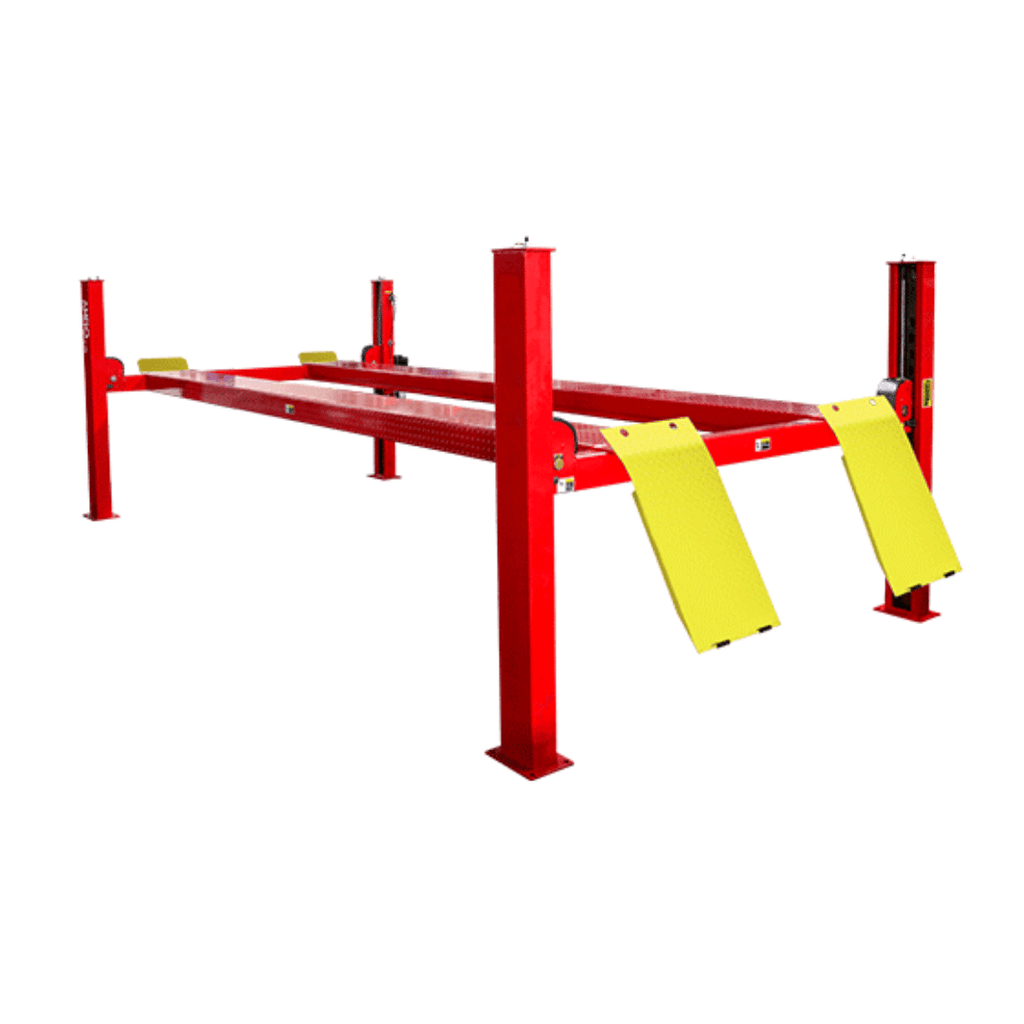

About the AMGO PRO-12
The AMGO PRO-12 is a commercial-grade four post lift designed for daily servicing of compatible cars, SUVs, pickups and vans weighing up to 12,000 pounds. Its rugged construction makes it suitable for professional service shops and well-equipped garages.
Stepless runway-width adjustment helps accommodate different wheel tracks, while the clear drive-on platform layout simplifies vehicle positioning for inspections, maintenance and general undercar service.
Key Features
- 12,000-lb. lifting capacity supports compatible passenger vehicles, SUVs, pickups and vans.
- Commercial-grade four post construction provides rugged durability for regular professional service.
- Stepless runway-width adjustment adapts to a variety of vehicle wheel tracks.
- Mechanical self-locking safety system uses an air-operated release for convenient lowering.
- Primary multiple safety locks provide secure locking positions throughout the lifting range.
- Cable-slack protection system comes standard for an additional level of operational safety.
- Aircraft-standard lifting cables provide dependable cable-driven lifting performance.
- High-standard hydraulic cylinder uses quality oil seals and a compensation valve.
- Non-skid diamond runways improve tire grip during vehicle loading and service.
- ETL-certified AMGO power unit comes standard for dependable electrical and hydraulic operation.

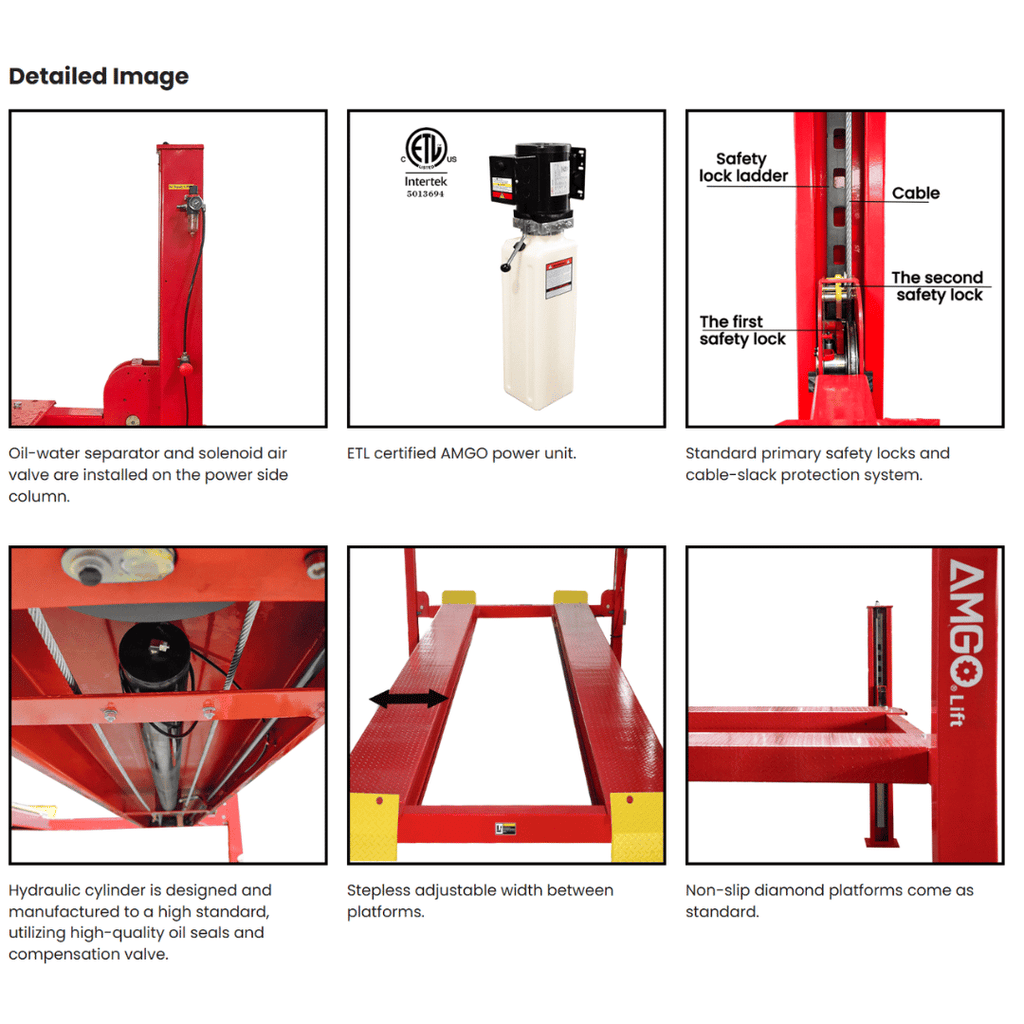

- Oil-water separator and solenoid air valve are installed on the power-side column.
- Open general-service layout supports routine inspections, maintenance and undercar work.
Recommended Applications
Commercial Service Shops
Designed for routine inspections, maintenance and general repair work in professional automotive facilities.
Mixed Vehicle Service
The 12,000-lb. capacity supports many compatible cars, SUVs, pickups and vans.
Garage Service Bays
The drive-on four post layout offers convenient vehicle positioning and stable access for undercar work.

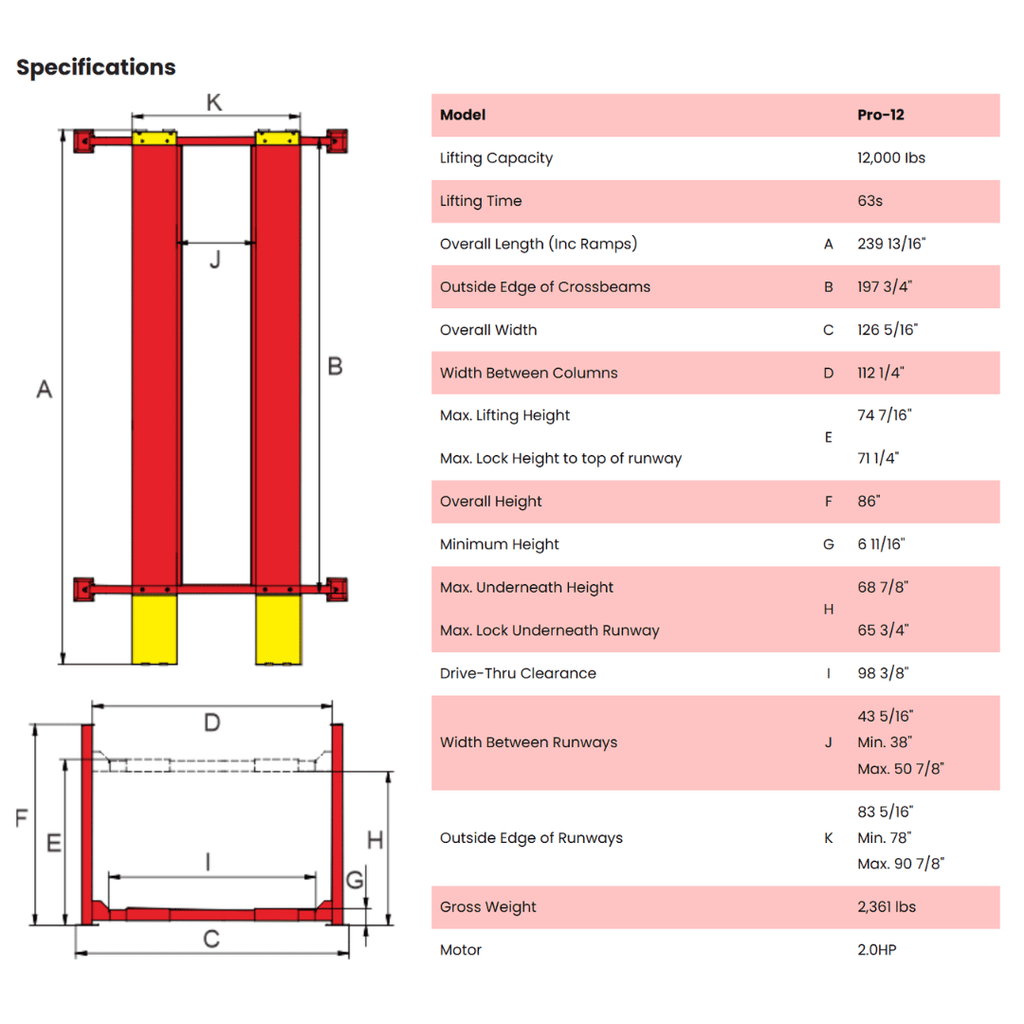

AMGO PRO-12 Specifications
| Specification | Reference | PRO-12 Details |
|---|---|---|
| Model | - | PRO-12 General Service Four Post Lift |
| Lifting Capacity | - | 12,000 lbs |
| Lifting Time | - | 63 seconds |
| Overall Length Including Ramps | A | 239 13/16" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 126 5/16" |
| Width Between Columns | D | 112 1/4" |
| Maximum Lifting Height | E | 74 7/16" |
| Maximum Lock Height to Top of Runway | - | 71 1/4" |
| Overall Height | F | 86" |
| Minimum Height | G | 6 11/16" |
| Maximum Underneath Height | H | 68 7/8" |
| Maximum Lock Underneath Runway | - | 65 3/4" |
| Drive-Through Clearance | I | 98 3/8" |
| Width Between Runways | J | 43 5/16", adjustable from 38" to 50 7/8" |
| Outside Edge of Runways | K | 83 5/16", adjustable from 78" to 90 7/8" |
| Gross Weight | - | 2,361 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: Install the PRO-12 indoors on a suitable reinforced concrete foundation using qualified personnel. Confirm electrical and compressed-air requirements, bay dimensions, runway spacing, anchoring requirements and all safety instructions in the official manual.

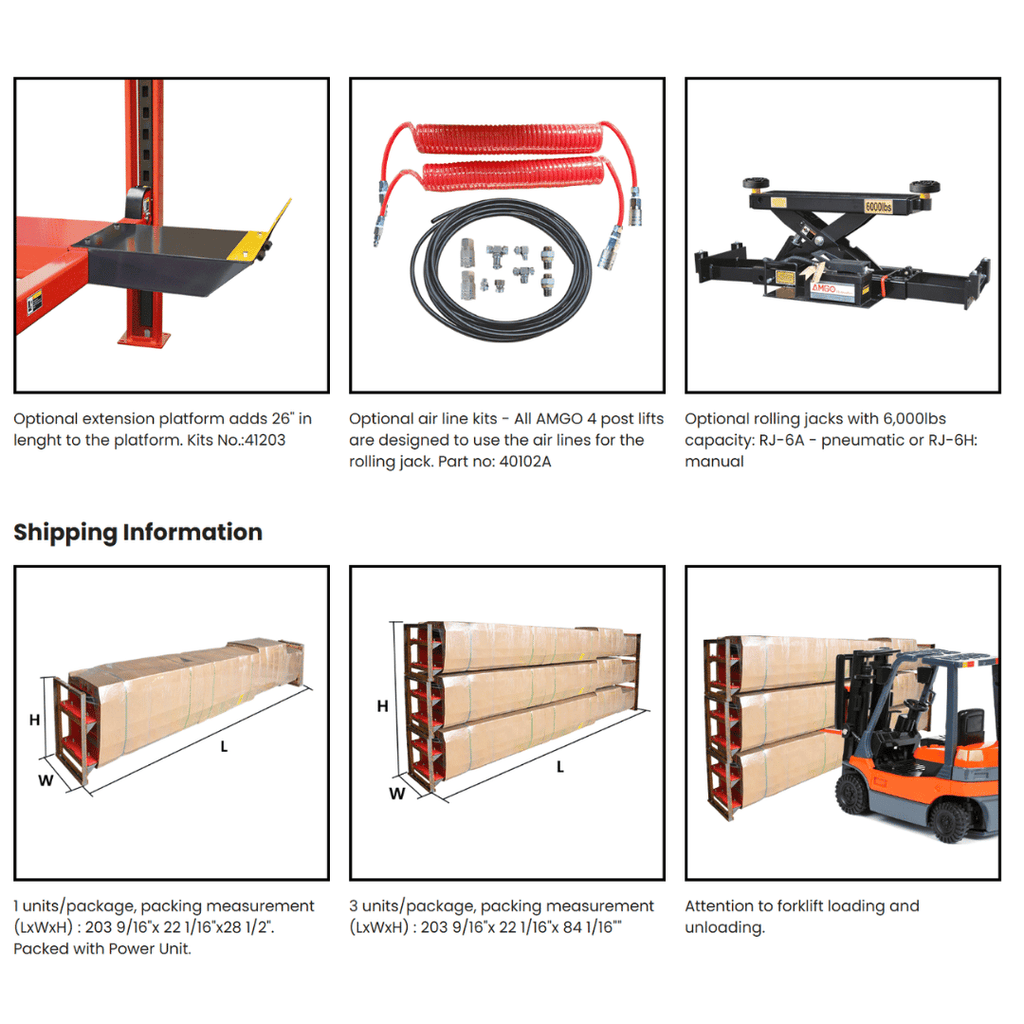

Optional Accessories
- Optional 26-inch runway extension platform — Kit No. 41203.
- Optional adjustable blocks for use with the runway extension — Kit No. 40905.
- Optional air-line kit for rolling-jack operation — Part No. 40102A.
- Optional RJ-6H manual hydraulic rolling jack — 6,000-lb. capacity.
- Optional RJ-6A pneumatic hydraulic rolling jack — 6,000-lb. capacity.
Why Choose the AMGO PRO-12?
- Commercial 12,000-lb. lifting capacity.
- Suitable for cars, SUVs, pickups and vans.
- Stepless runway-width adjustment fits different wheel tracks.
- Air-released mechanical locks simplify lowering operation.
- Primary safety locks and cable-slack protection come standard.
- Optional rolling jacks expand wheel-free service capability.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO PRO-12 combines commercial-grade 12,000-lb. lifting strength with stepless runway-width adjustment and a comprehensive safety system. Its non-skid platforms, air-released mechanical locks and cable-slack protection make it a practical general-service lift for professional workshops and garages.
Before purchasing or operating the lift, verify vehicle dimensions and weight, reinforced concrete requirements, electrical and compressed-air supply, available bay dimensions and all applicable workplace safety regulations.
