AMGO OH-9: A versatile 9,000-lb. clear-floor two post lift with Super Asymmetric arms, two standard height settings, dual direct-drive cylinders and single-point safety release.

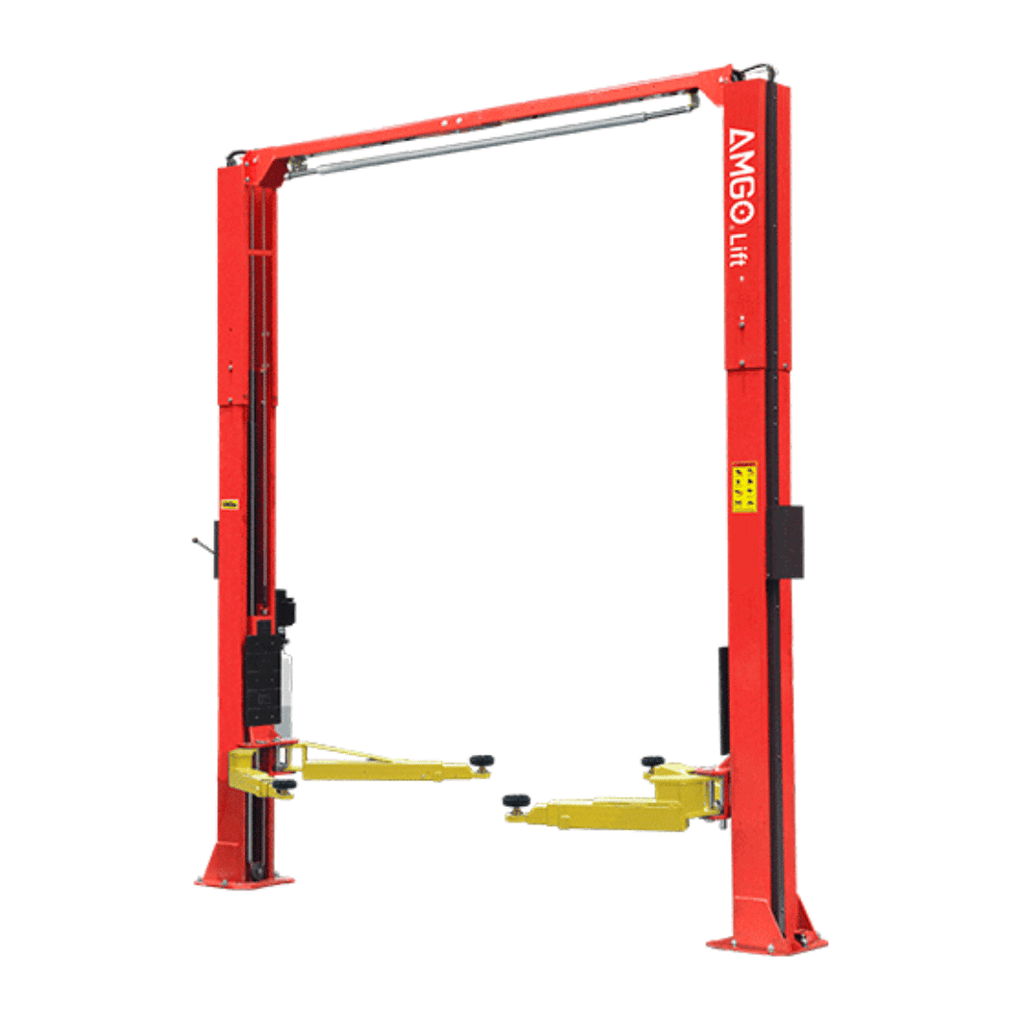

About the AMGO OH-9
The AMGO OH-9 is a clear-floor two post lift designed to maximize usable space in professional service shops and home garages. Its overhead configuration leaves the floor between the columns unobstructed, making vehicle positioning, tool movement and undercar access more convenient.
With a 9,000-lb. capacity, two standard height settings and AMGO Super Asymmetric arm technology, the OH-9 can support compatible vehicles in symmetric or asymmetric loading configurations while maintaining practical door clearance.

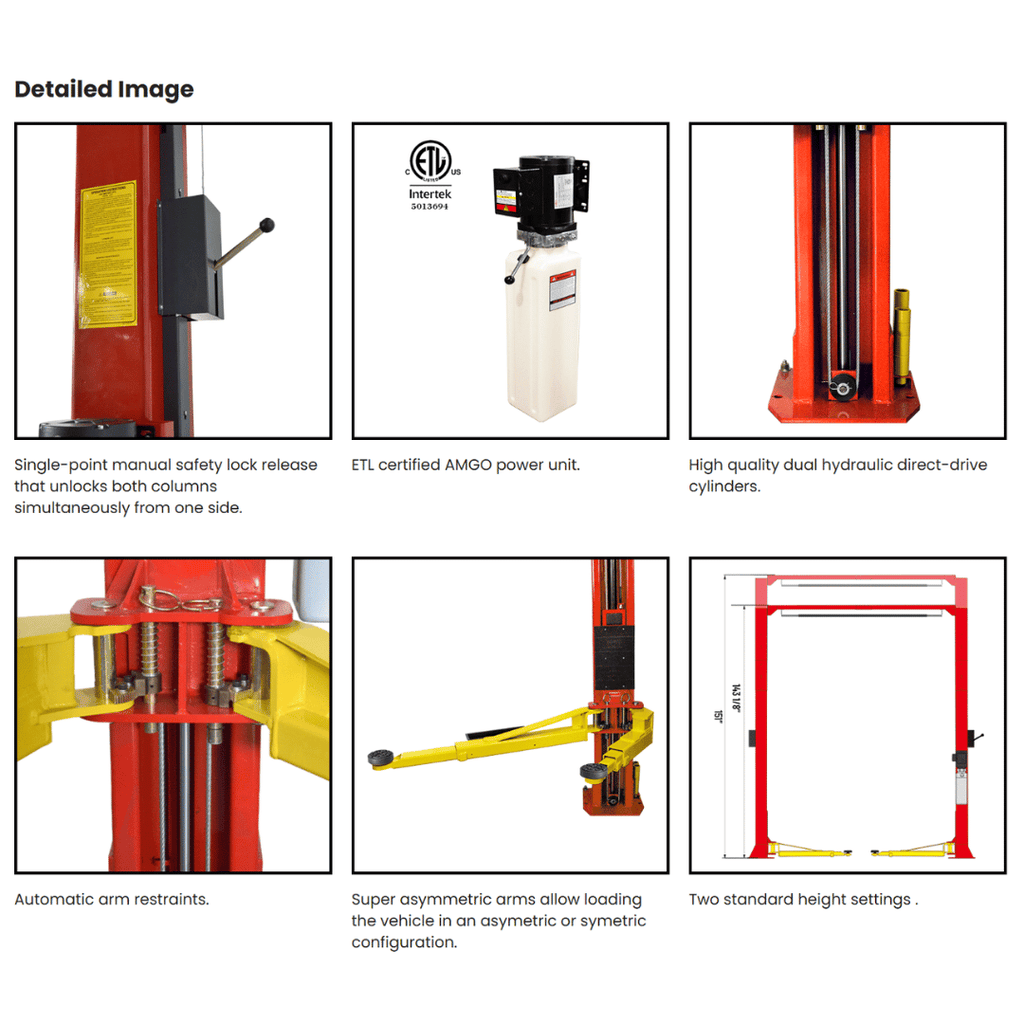

Key Features
- 9,000-lb. lifting capacity supports compatible passenger vehicles and light-duty automotive service applications.
- Clear-floor configuration keeps the area between the columns free from floor plates and obstructions.
- Super Asymmetric arms allow compatible vehicles to be loaded in symmetric or asymmetric configurations.
- Dual hydraulic direct-drive cylinders provide efficient power transmission with fewer wear components.
- Single-point manual safety release unlocks both columns simultaneously from one operating side.
- Overhead safety shut-off device helps protect vehicles from contacting the top beam.
- Two standard height settings allow installation at 143 1/8 inches or 151 inches overall height.
- Automatic arm restraints help secure the lifting arms when the vehicle is raised.
- Self-lubricating UHMW polyethylene sliders support smooth carriage travel and reduced maintenance.
- Aero synchronization cables come standard for coordinated lifting performance.
- Detachable toe guards and tool trays are included for service-bay convenience.
- Double-screw rubber pads use 2-inch pins and include 3-inch extension adapters.
Recommended Applications
Commercial Service Shops
Suitable for inspections, maintenance, repairs and general automotive service work in professional facilities.
Home Garages
A professional lifting solution for suitable garages with adequate ceiling height, floor strength and electrical service.
Unobstructed Work Bays
The clear-floor design improves access beneath vehicles and allows tools and equipment to move freely between columns.

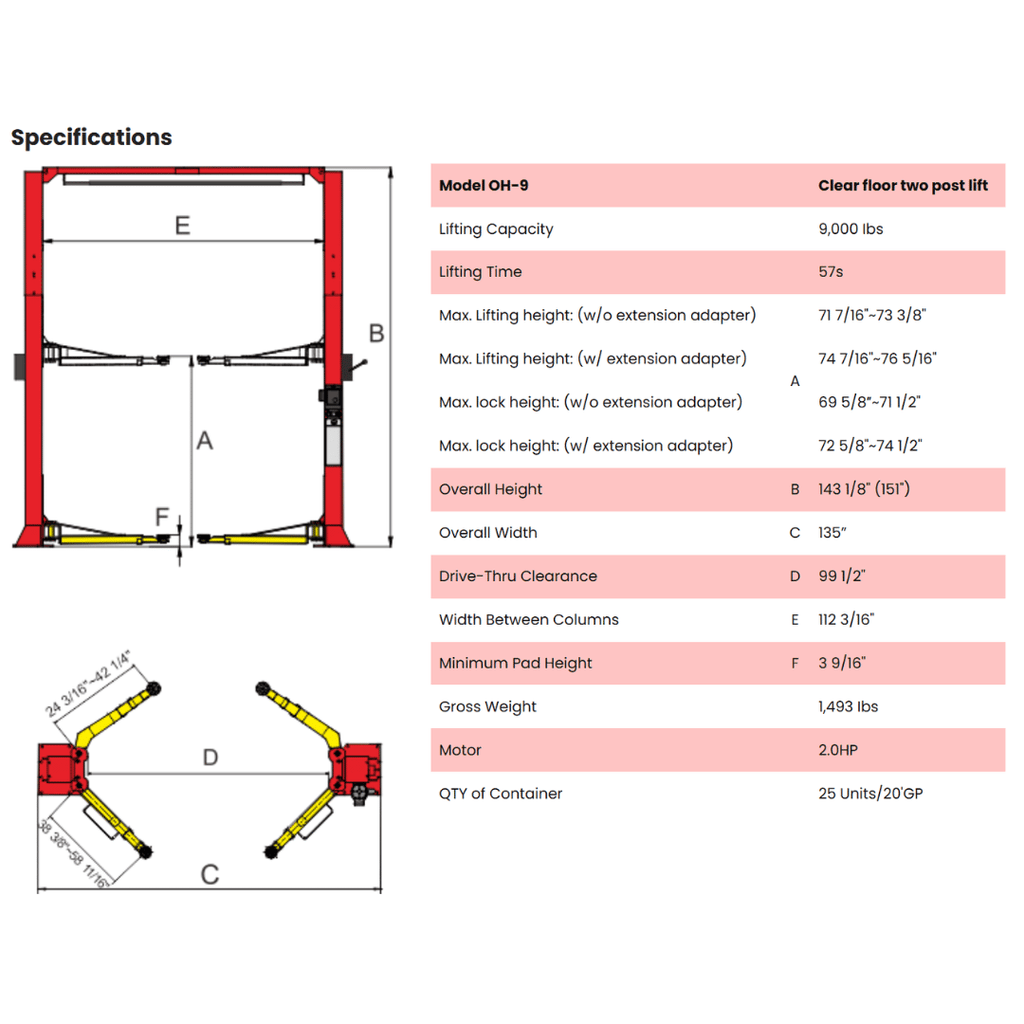

AMGO OH-9 Specifications
| Specification | Reference | OH-9 Details |
|---|---|---|
| Model | - | OH-9 Clear-Floor Two Post Lift |
| Lifting Capacity | - | 9,000 lbs |
| Lifting Time | - | 57 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 71 7/16" to 73 3/8" |
| Maximum Lifting Height With Extension Adapter | A | 74 7/16" to 76 5/16" |
| Maximum Lock Height Without Extension Adapter | - | 69 5/8" to 71 1/2" |
| Maximum Lock Height With Extension Adapter | - | 72 5/8" to 74 1/2" |
| Overall Height | B | 143 1/8" or 151" |
| Overall Width | C | 135" |
| Drive-Through Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 9/16" |
| Gross Weight | - | 1,493 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
| Container Quantity | - | 25 units per 20-foot GP container |
Installation note: The OH-9 is approved for indoor installation on a flat reinforced concrete foundation. Confirm ceiling height, selected height setting, electrical supply, anchor requirements, bay dimensions and all safety clearances specified in the official manual.

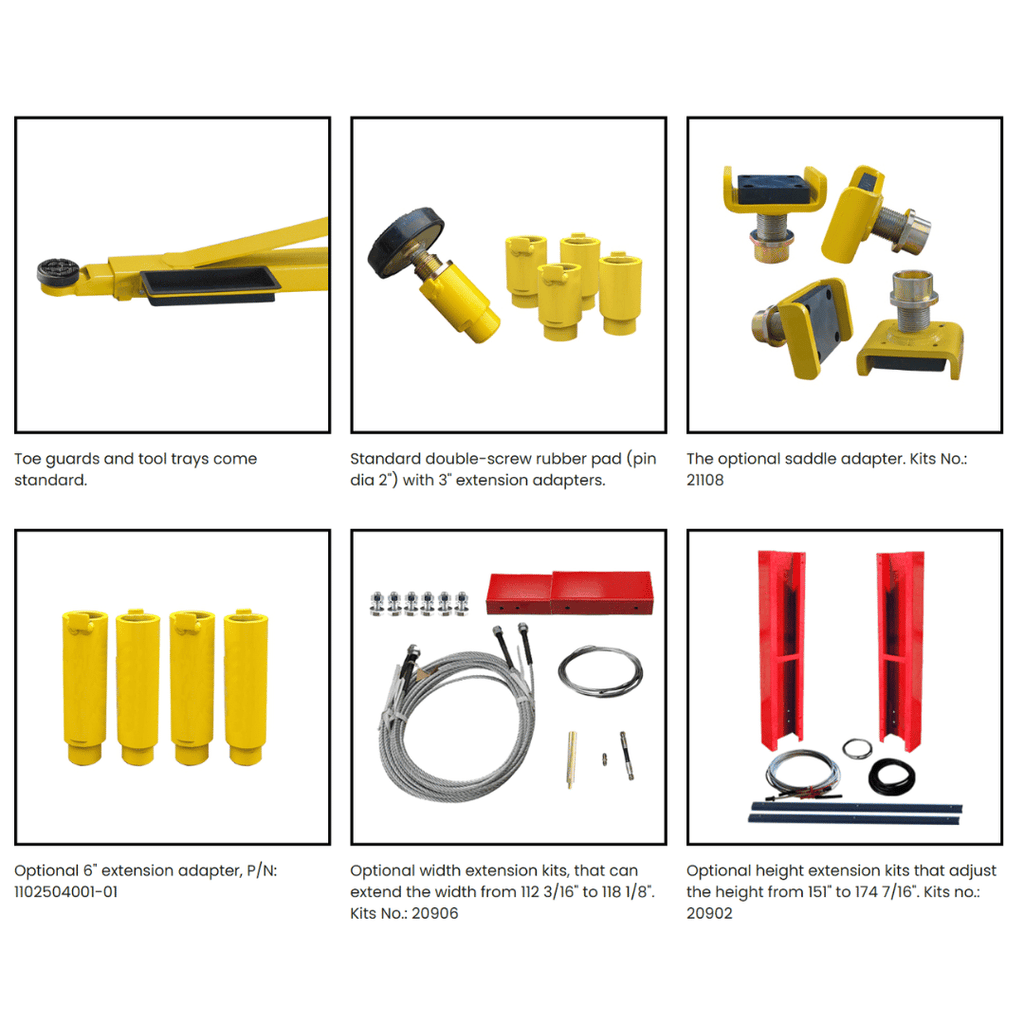

Optional Accessories
- Optional saddle adapter — Kit No. 21108.
- Optional 6-inch extension adapter — Part No. 1102504001-01.
- Optional width extension kit increases the width between columns from 112 3/16 inches to 118 1/8 inches — Kit No. 20906.
- Optional height extension kit increases overall height from 151 inches to 174 7/16 inches — Kit No. 20902.
Why Choose the AMGO OH-9?
- Professional 9,000-lb. lifting capacity.
- Clear-floor design provides an unobstructed workspace.
- Super Asymmetric arms support symmetric or asymmetric loading.
- Two standard height settings accommodate different ceiling heights.
- Dual direct-drive cylinders reduce wear components.
- Single-point release unlocks both columns from one side.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO OH-9 combines an unobstructed clear-floor layout with flexible vehicle positioning and two installation heights. Its 9,000-lb. capacity, Super Asymmetric arms, dual direct-drive cylinders and overhead shut-off system make it a practical choice for professional workshops and suitably equipped home garages.
Before purchasing or operating the lift, verify vehicle weight and approved lifting points, concrete requirements, electrical specifications, selected height configuration, available bay dimensions and all applicable workplace safety regulations.
