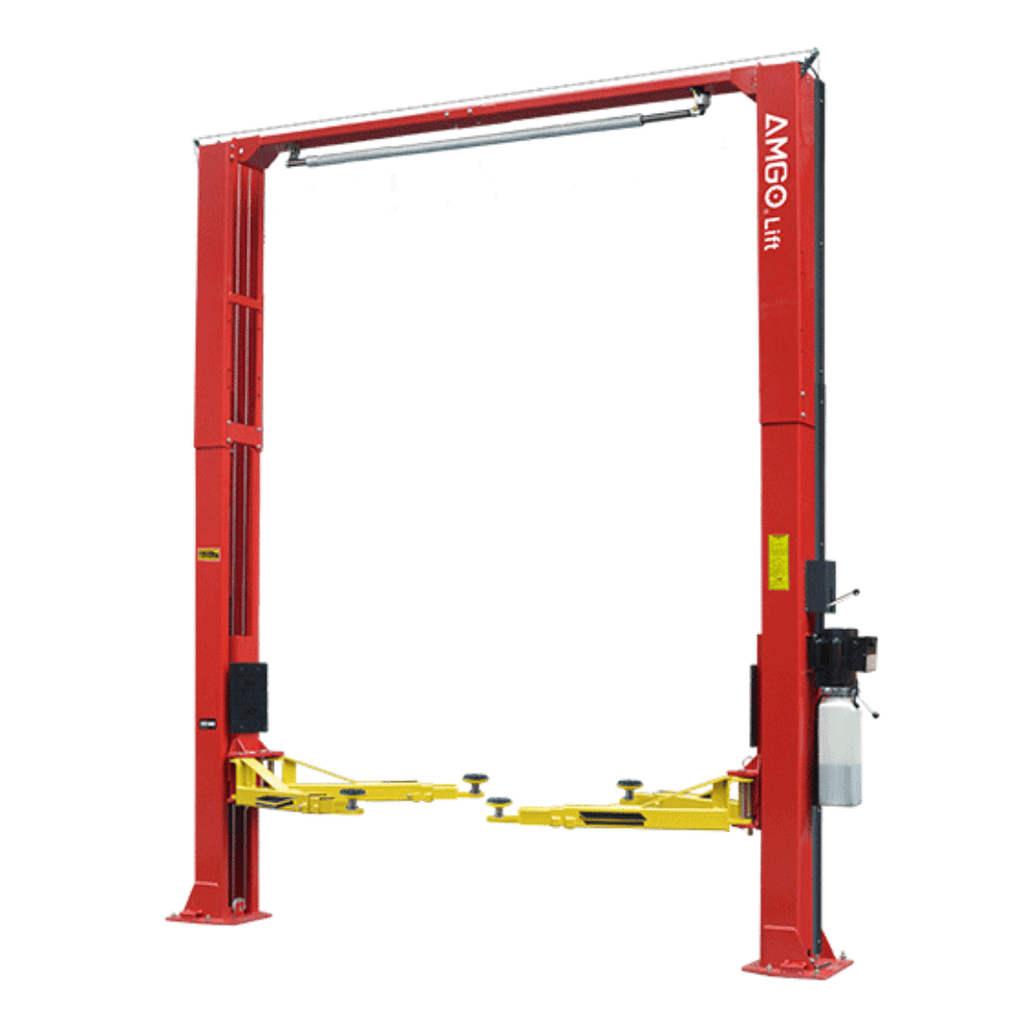

AMGO OH-12S Clear-Floor Two Post Lift – 12,000-lb Capacity
AMGO OH-12S Clear-Floor Two Post Lift – 12,000-lb Capacity
AMGO OH-12S: A heavy-duty 12,000-lb. clear-floor two post lift with three height settings, four 3-stage arms, dual direct-drive cylinders and single-point safety release.
About the AMGO OH-12S
The AMGO OH-12S is a heavy-duty clear-floor two post lift developed for commercial workshops and professional garages that service vehicles ranging from compact cars to full-size pickups and longer-wheelbase models.
Its 12,000-lb. lifting capacity, four 3-stage arms and three adjustable height settings provide the strength and flexibility required for demanding service environments while keeping the floor between the columns unobstructed.

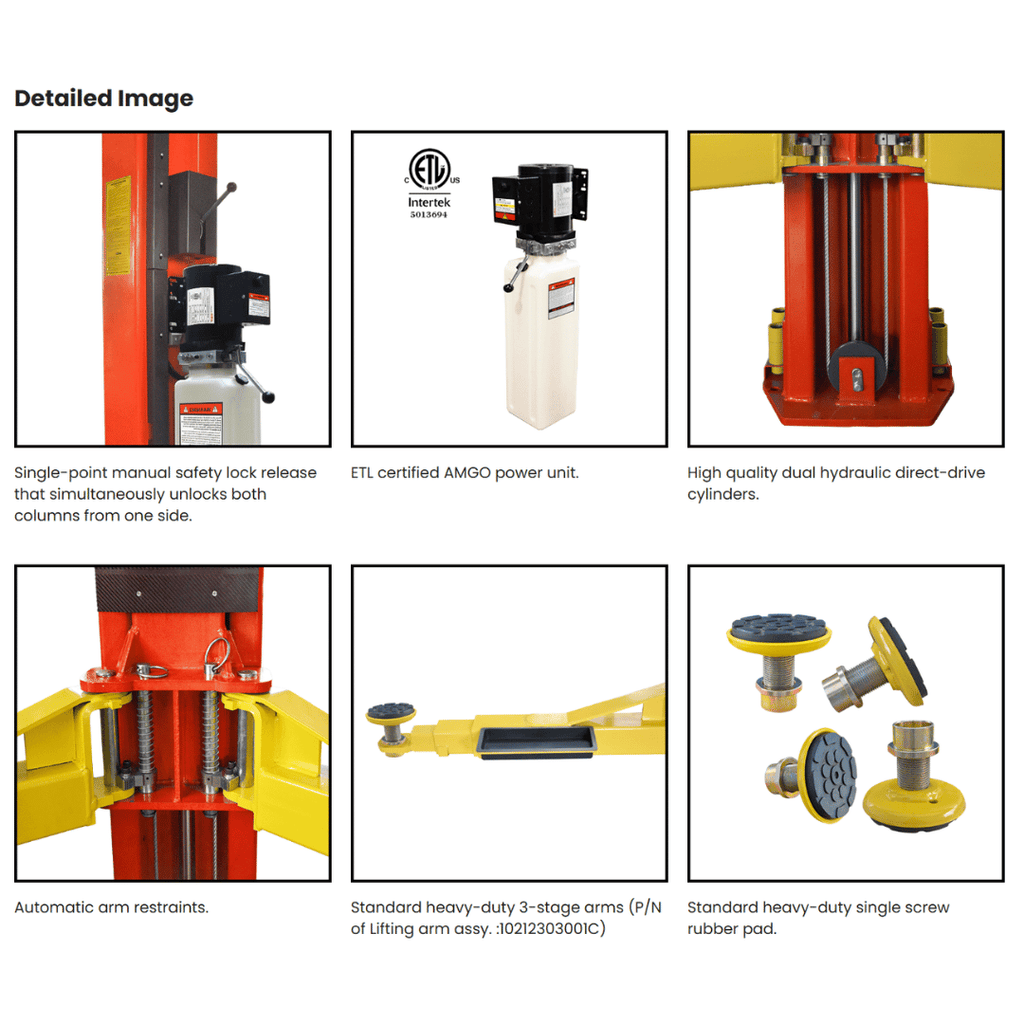

Key Features
- 12,000-lb. lifting capacity supports compatible passenger vehicles, SUVs, pickups and heavier automotive applications.
- Clear-floor configuration keeps the service area between the columns free from floor plates and obstructions.
- Four 3-stage arms provide the reach needed for vehicles with short or long wheelbases.
- High-quality dual hydraulic direct-drive cylinders deliver dependable lifting power with fewer wear components.
- Single-point manual safety release unlocks both columns simultaneously from one operating side.
- Overhead safety shut-off device helps protect vehicles from contacting the top beam.
- Three adjustable height settings accommodate different service-bay ceiling heights.
- Automatic arm restraints help secure the lifting arms while the vehicle is raised.
- Self-lubricating UHMW polyethylene sliders support smooth carriage movement and reduced maintenance.
- Aero synchronization cables come standard for coordinated lifting performance.
- Detachable toe guards and tool trays are supplied as standard equipment.
- Heavy-duty single-screw rubber pads use 2-inch pins and include 3-inch and 6-inch extension adapters.
Recommended Applications
Commercial Repair Shops
Designed for heavy-duty inspections, maintenance, repairs and regular professional automotive service work.
Pickup and Fleet Service
The 12,000-lb. capacity and long 3-stage arms support many compatible pickups and longer-wheelbase vehicles.
High-Ceiling Garages
Three height settings provide installation flexibility for suitably equipped professional or residential garages.

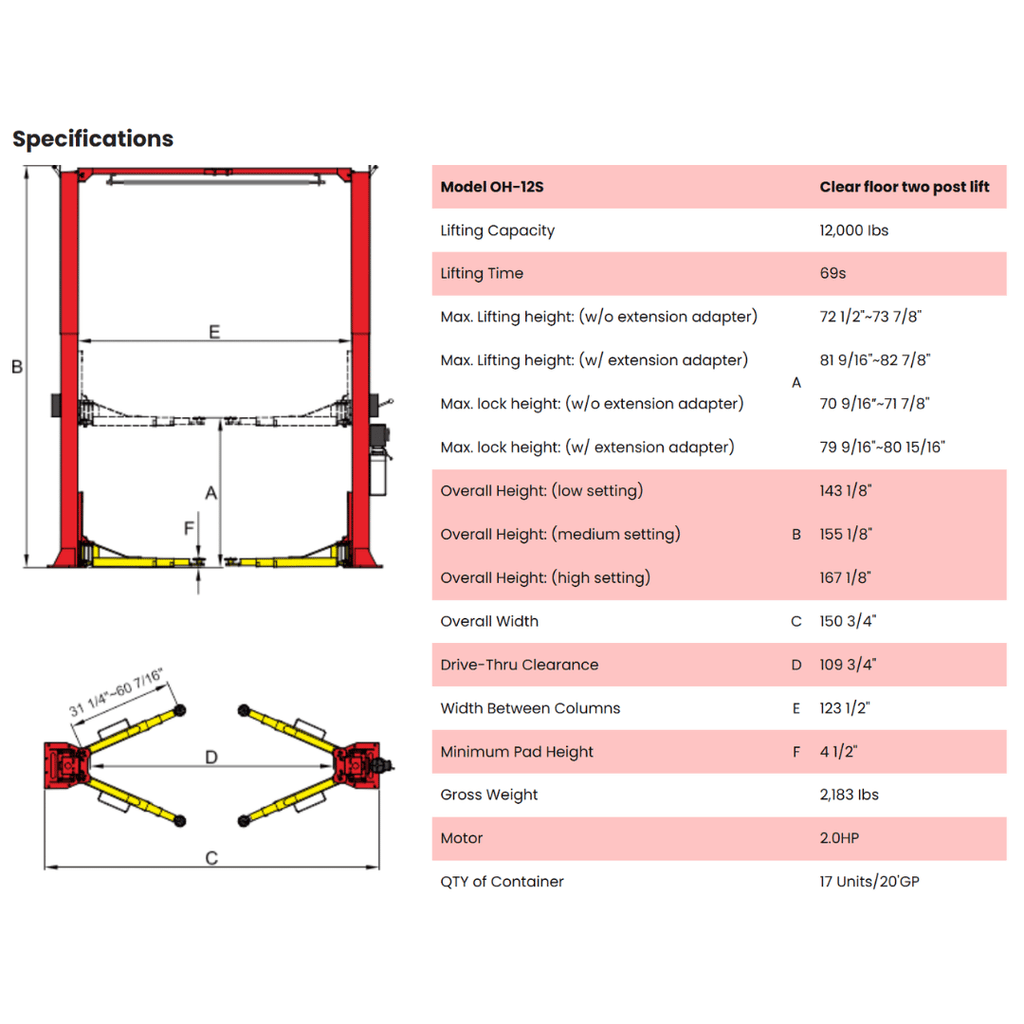

AMGO OH-12S Specifications
| Specification | Reference | OH-12S Details |
|---|---|---|
| Model | - | OH-12S Clear-Floor Two Post Lift |
| Lifting Capacity | - | 12,000 lbs |
| Lifting Time | - | 69 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 72 1/2" to 73 7/8" |
| Maximum Lifting Height With Extension Adapter | A | 81 9/16" to 82 7/8" |
| Maximum Lock Height Without Extension Adapter | - | 70 9/16" to 71 7/8" |
| Maximum Lock Height With Extension Adapter | - | 79 9/16" to 80 15/16" |
| Overall Height — Low Setting | B | 143 1/8" |
| Overall Height — Medium Setting | B | 155 1/8" |
| Overall Height — High Setting | B | 167 1/8" |
| Overall Width | C | 150 3/4" |
| Drive-Through Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | - | 2,183 lbs |
| Motor | - | 2.0 HP |
| Container Quantity | - | 17 units per 20-foot GP container |
Installation note: Install the OH-12S indoors on a flat reinforced concrete foundation using qualified personnel. Confirm the selected height setting, ceiling clearance, anchoring requirements, electrical supply, bay dimensions and all safety clearances stated in the official manual.

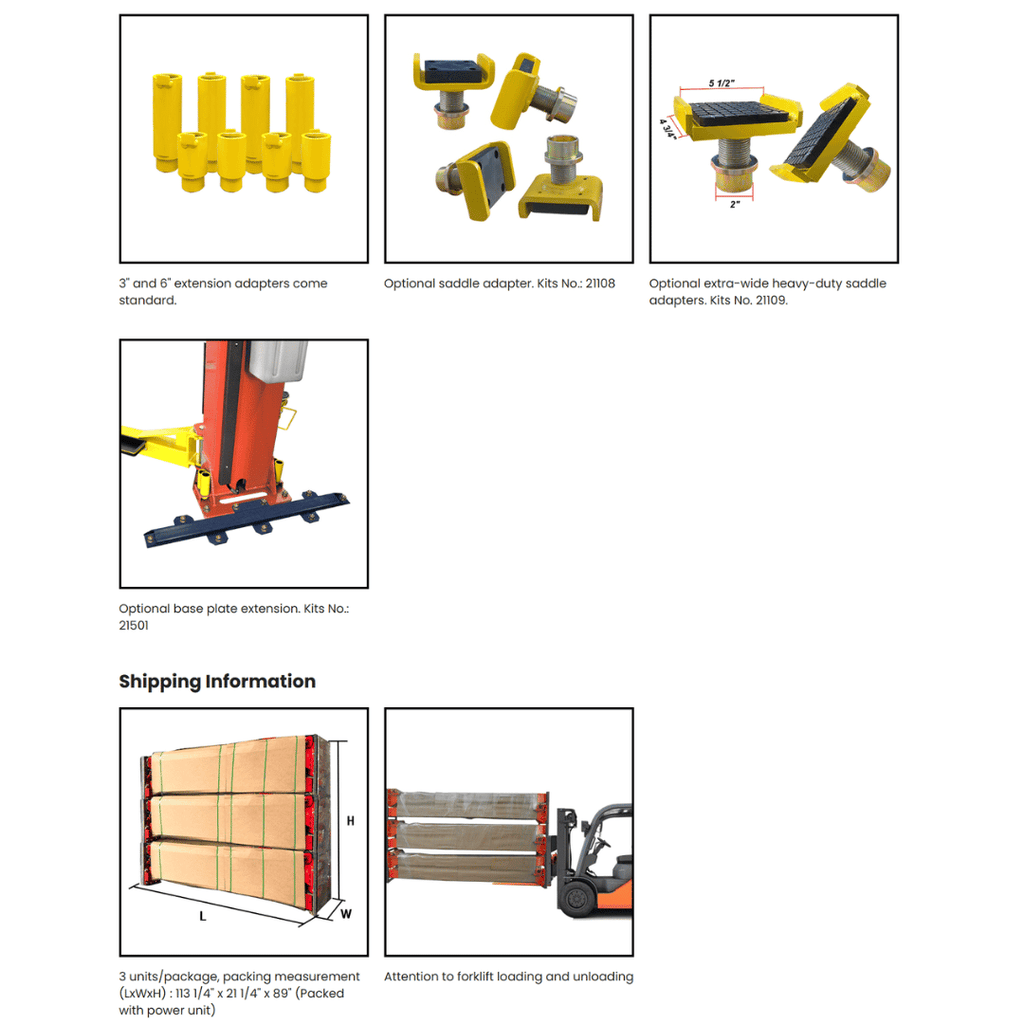

Standard and Optional Equipment
- Heavy-duty single-screw rubber pads included as standard.
- Standard 3-inch and 6-inch extension adapters.
- Detachable toe guards and tool trays included as standard.
- Optional heavy-duty extra-wide saddle adapter — Kit No. 21109.
- Optional base plate extension — Kit No. 21501.
Why Choose the AMGO OH-12S?
- Heavy-duty 12,000-lb. lifting capacity.
- Clear-floor layout provides an unobstructed workspace.
- Four 3-stage arms cover short and long wheelbases.
- Three height settings accommodate different ceilings.
- Dual direct-drive cylinders improve reliability.
- Single-point release unlocks both columns from one side.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO OH-12S combines heavy-duty 12,000-lb. lifting strength with a versatile clear-floor layout. Its three height settings, four 3-stage arms, dual direct-drive cylinders and overhead shut-off system make it a dependable choice for commercial workshops and professional garages.
Before purchasing or operating the lift, verify vehicle weight and approved lifting points, reinforced concrete requirements, electrical specifications, selected height setting, available bay dimensions and all applicable workplace safety regulations.
