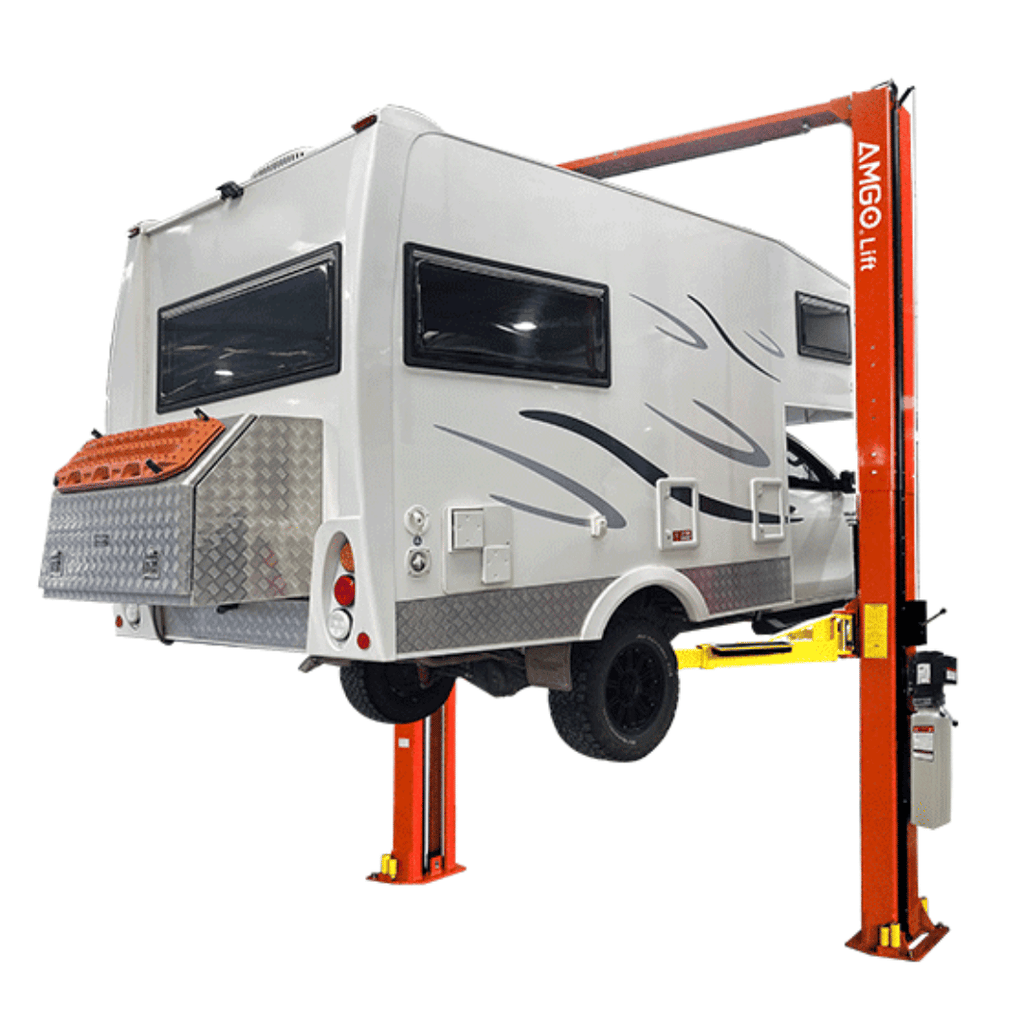

AMGO OH-12: A high-clearance 12,000-lb. clear-floor two post lift with three height settings up to 198 inches, four heavy-duty 3-stage arms and dual direct-drive cylinders.
About the AMGO OH-12
The AMGO OH-12 is a heavy-duty clear-floor two post lift engineered for professional workshops and high-ceiling service facilities. Its 12,000-lb. lifting capacity supports a broad range of compatible vehicles, from compact cars to commercial pickups.
Three adjustable height settings reach up to 198 inches, while four heavy-duty 3-stage arms provide the reach required for short- and long-wheelbase vehicles. AMGO's 3-in-1 height technology helps the lift adapt to different service-bay ceiling heights.

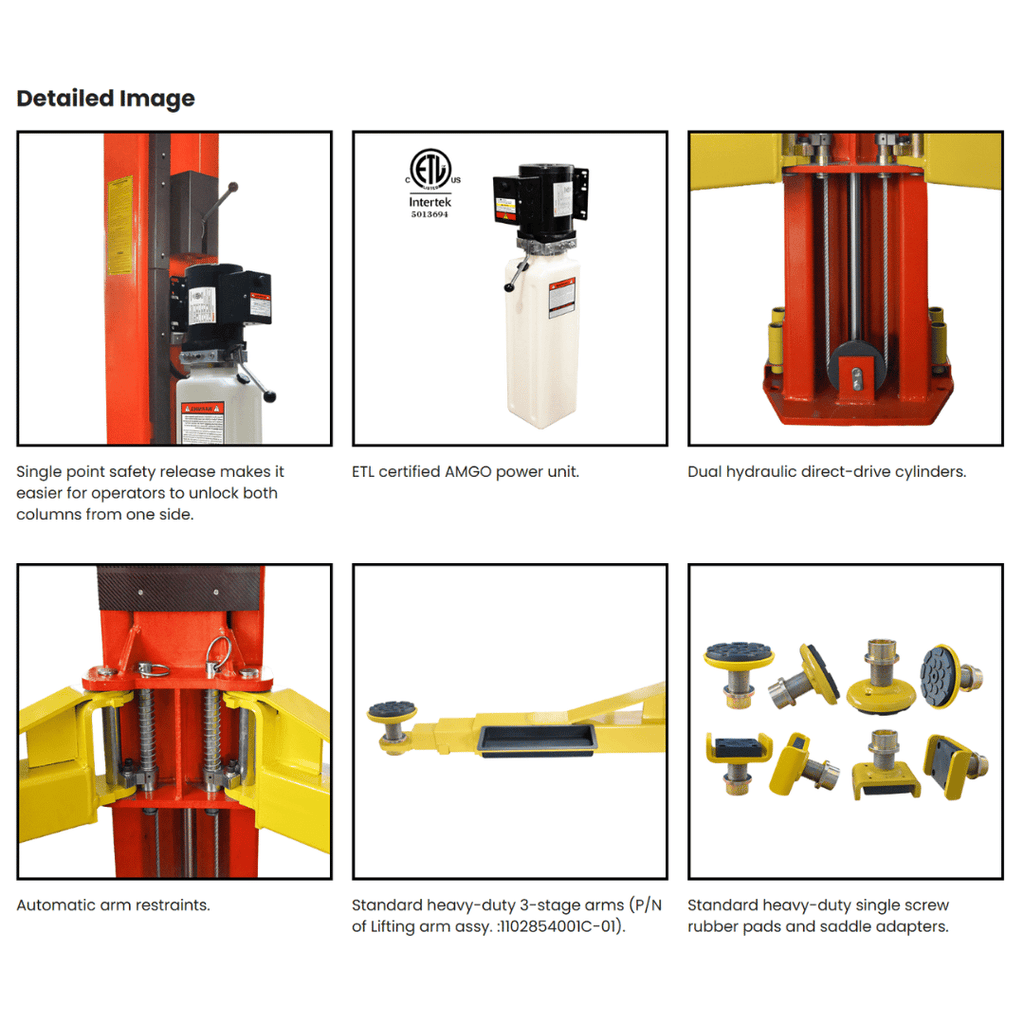

Key Features
- 12,000-lb. lifting capacity supports compatible cars, SUVs, pickups and heavier service applications.
- Clear-floor configuration keeps the service area between columns unobstructed for easier access and tool movement.
- Four heavy-duty 3-stage arms accommodate vehicles with both short and long wheelbases.
- High-quality dual hydraulic direct-drive cylinders provide dependable lifting power with fewer wear components.
- Single-point manual safety release unlocks both columns simultaneously from one operating side.
- Dual safety design provides additional protection while the vehicle is raised.
- Overhead safety shut-off device helps protect vehicles from contact with the top beam.
- Three adjustable height settings accommodate different professional workshop ceiling heights.
- Self-lubricating UHMW polyethylene sliders support smooth carriage movement and reduced maintenance.
- Automatic arm restraints help keep the lifting arms securely positioned during operation.
- Aero synchronization cables come standard for coordinated lifting performance.
- Heavy-duty rubber pads, saddle adapters and 3-inch and 6-inch extensions are included as standard.
Recommended Applications
Commercial Repair Shops
Designed for heavy-duty inspections, maintenance, repair and regular professional automotive service work.
Pickup and Fleet Service
The 12,000-lb. capacity and long 3-stage arms support many compatible pickups and longer-wheelbase vehicles.
High-Ceiling Facilities
Three height settings up to 198 inches provide substantial clearance for taller service bays.

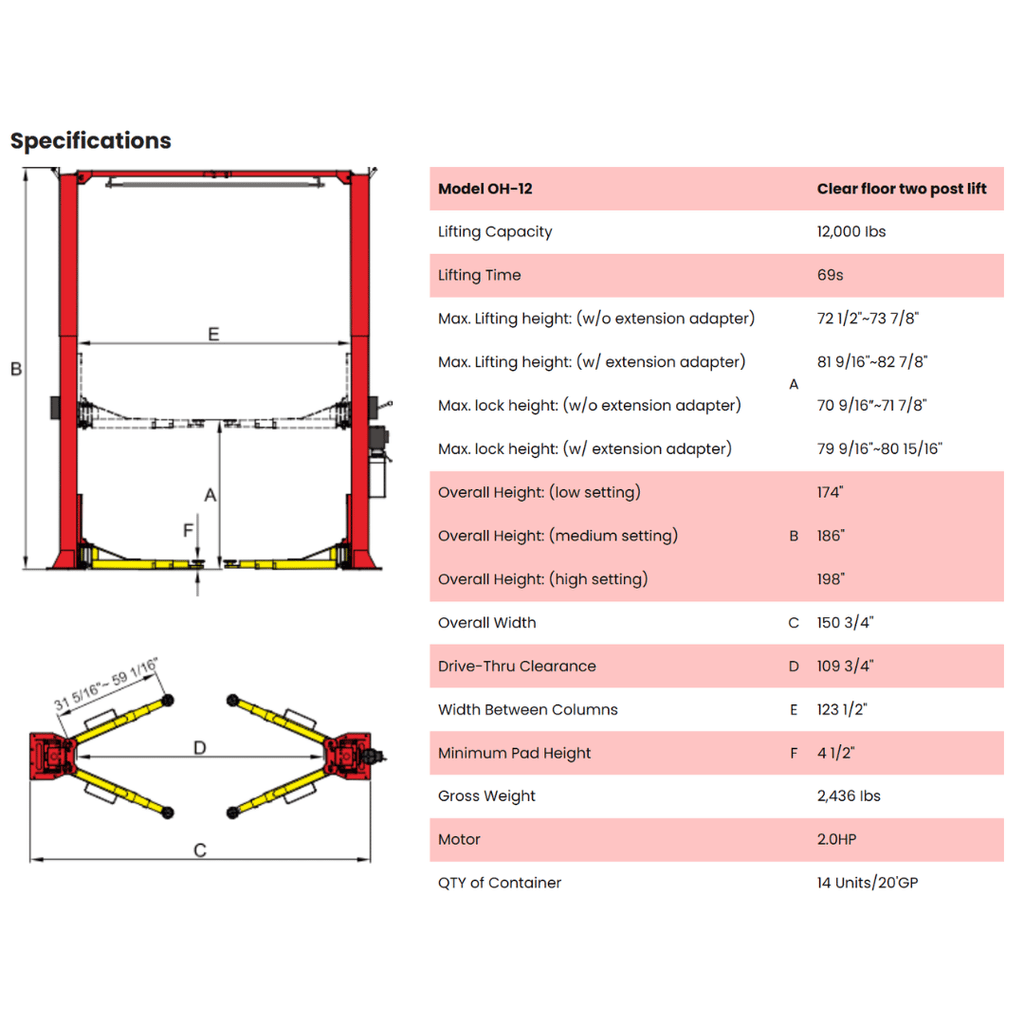

AMGO OH-12 Specifications
| Specification | Reference | OH-12 Details |
|---|---|---|
| Model | - | OH-12 Clear-Floor Two Post Lift |
| Lifting Capacity | - | 12,000 lbs |
| Lifting Time | - | 69 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 72 1/2" to 73 7/8" |
| Maximum Lifting Height With Extension Adapter | A | 81 9/16" to 82 7/8" |
| Maximum Lock Height Without Extension Adapter | - | 70 9/16" to 71 7/8" |
| Maximum Lock Height With Extension Adapter | - | 79 9/16" to 80 15/16" |
| Overall Height — Low Setting | B | 174" |
| Overall Height — Medium Setting | B | 186" |
| Overall Height — High Setting | B | 198" |
| Overall Width | C | 150 3/4" |
| Drive-Through Clearance | D | 109 3/4" |
| Width Between Columns | E | 123 1/2" |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | - | 2,436 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
| Container Quantity | - | 14 units per 20-foot GP container |
Installation note: Install the OH-12 indoors on a flat reinforced concrete foundation using qualified personnel. Confirm the selected height setting, ceiling clearance, anchoring requirements, electrical supply, bay dimensions and all safety clearances stated in the official manual.

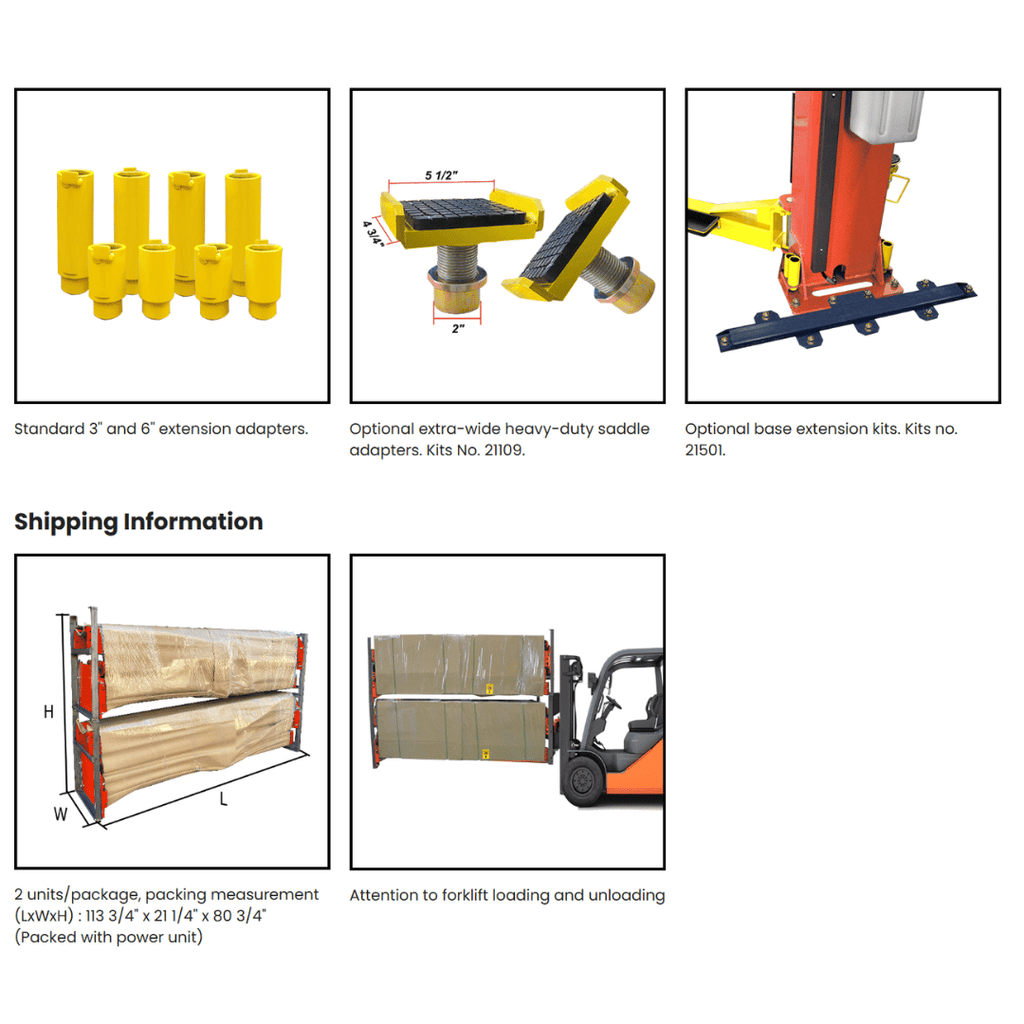

Standard and Optional Equipment
- Heavy-duty single-screw rubber pads included as standard.
- Heavy-duty saddle adapters included as standard.
- Standard 3-inch and 6-inch extension adapters.
- Detachable toe guards and tool trays included as standard.
- Optional extra-wide heavy-duty saddle adapter — Kit No. 21109.
- Optional base extension kit — Kit No. 21501.
Why Choose the AMGO OH-12?
- Heavy-duty 12,000-lb. lifting capacity.
- Clear-floor layout provides an unobstructed workspace.
- Three height settings reach up to 198 inches.
- Four 3-stage arms cover short and long wheelbases.
- Dual direct-drive cylinders improve reliability.
- Rubber pads, saddle adapters and two extension sizes are included.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO OH-12 combines heavy-duty 12,000-lb. lifting strength with a high-clearance clear-floor design. Its three height settings, four 3-stage arms, dual direct-drive cylinders and standard saddle adapters make it a versatile choice for commercial workshops servicing cars, pickups and longer-wheelbase vehicles.
Before purchasing or operating the lift, verify vehicle weight and approved lifting points, reinforced concrete requirements, electrical specifications, selected height setting, available bay dimensions and all applicable workplace safety regulations.
