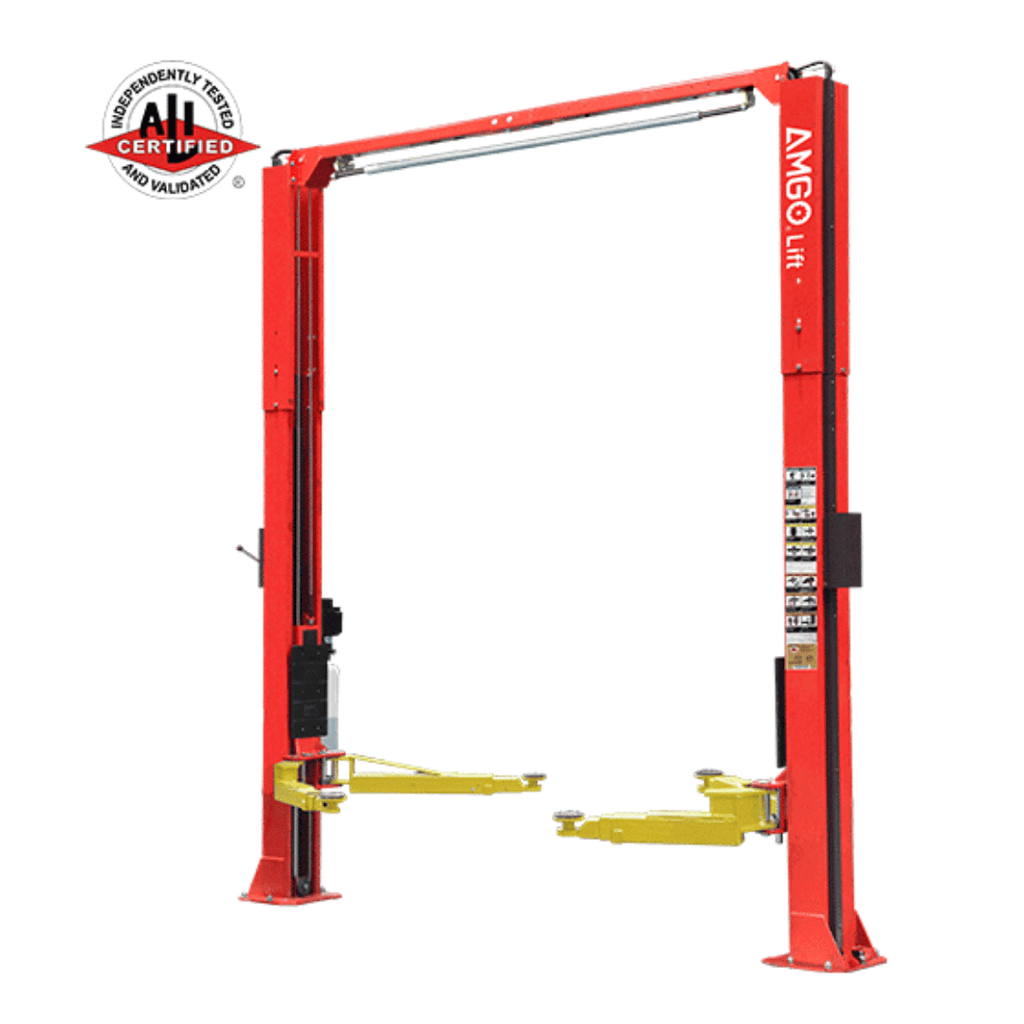

AMGO OH-10 Clear-Floor Two Post Lift – 10,000-lb Capacity
AMGO OH-10 Clear-Floor Two Post Lift – 10,000-lb Capacity
AMGO OH-10: An ALI-certified 10,000-lb. clear-floor two post lift with Super Asymmetric arms, dual direct-drive cylinders, two standard height settings and single-point safety release.
About the AMGO OH-10
The AMGO OH-10 is an industrial-grade, ALI-certified clear-floor two post lift engineered for professional workshops and demanding home-garage applications. Its overhead structure leaves the floor between the columns unobstructed for easier vehicle positioning, tool movement and undercar access.
With a 10,000-lb. lifting capacity, Super Asymmetric arm technology and two standard height settings, the OH-10 combines flexible vehicle loading with dependable long-term performance.

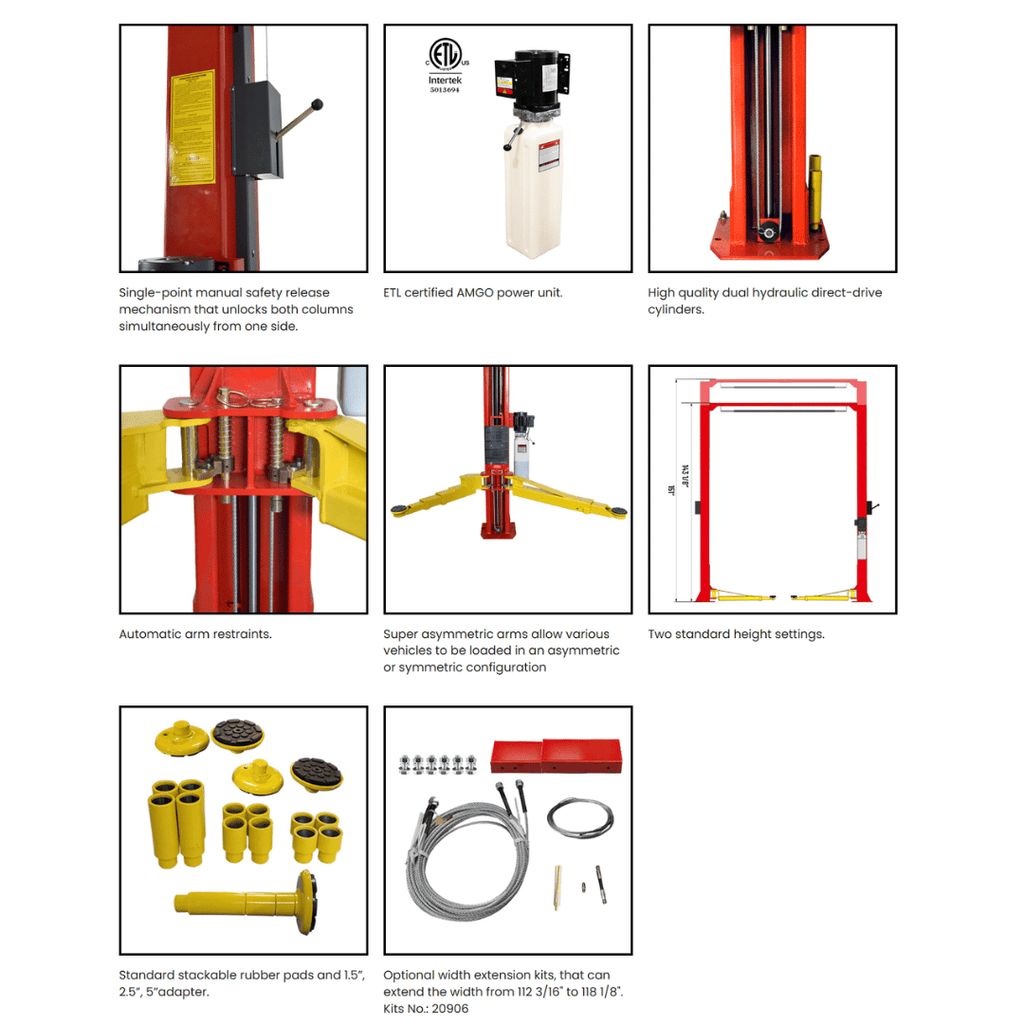

Key Features
- 10,000-lb. lifting capacity supports compatible passenger vehicles, SUVs, pickups and light-duty service applications.
- ALI-certified design meets recognized automotive lift safety and performance standards.
- Clear-floor configuration keeps the service area between the columns free from floor plates and obstructions.
- Super Asymmetric arms allow compatible vehicles to be positioned in symmetric or asymmetric configurations.
- Dual hydraulic direct-drive cylinders provide efficient power transmission with fewer wear components.
- Single-point manual safety release unlocks both columns simultaneously from one operating side.
- Overhead safety shut-off device helps protect vehicles from contact with the top beam.
- Aero synchronization cables support coordinated lifting performance.
- Self-lubricating UHMW polyethylene sliders help provide smooth carriage movement and reduced maintenance.
- Automatic arm restraints help secure the lifting arms while the vehicle is raised.
- Two standard height settings accommodate different ceiling heights and workshop layouts.
- Stackable rubber pads and adapters include 1.5-inch, 2.5-inch and 5-inch sizes as standard.
Recommended Applications
Commercial Service Shops
Suitable for inspections, maintenance, repairs and general automotive service work in professional facilities.
Home Garages
A professional-quality solution for suitable garages with adequate ceiling height, reinforced concrete and electrical service.
Unobstructed Service Bays
The clear-floor layout improves under-vehicle access and allows tools and equipment to move freely between the columns.

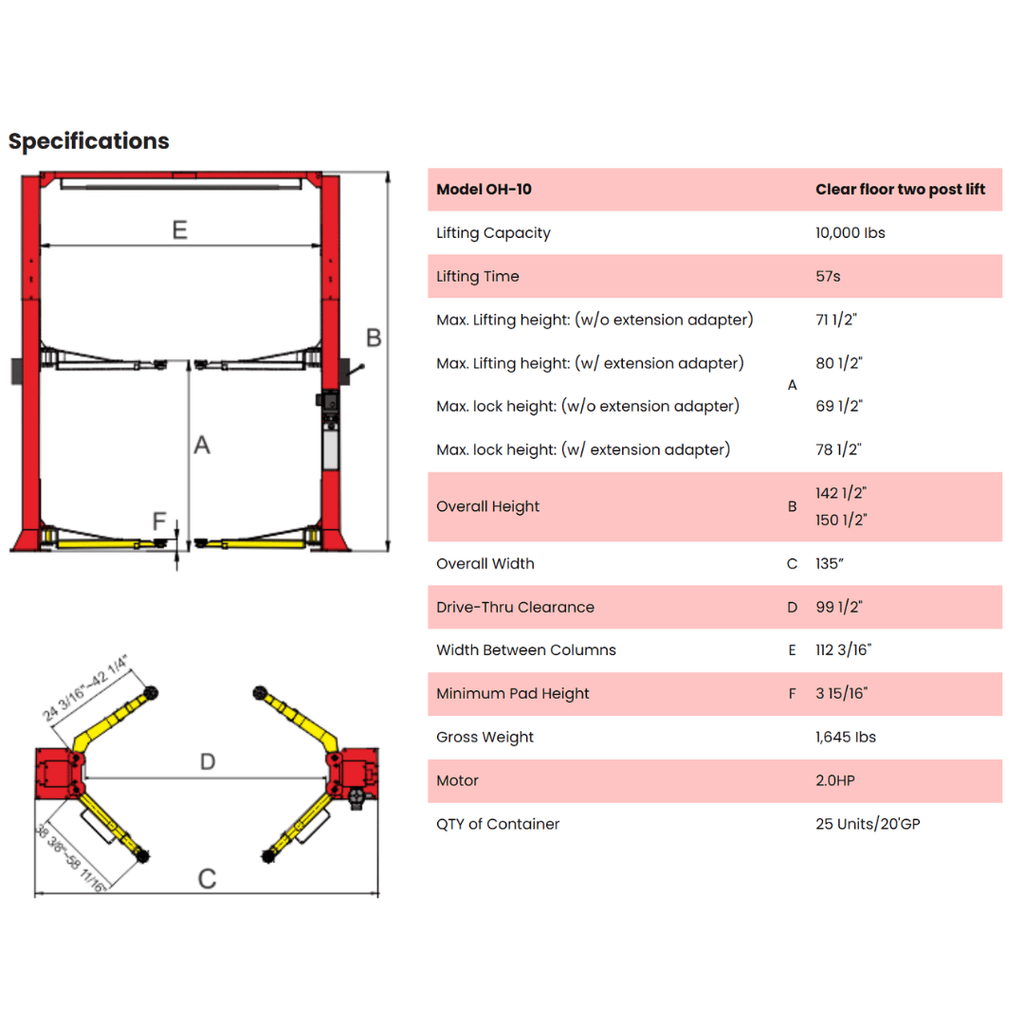

AMGO OH-10 Specifications
| Specification | Reference | OH-10 Details |
|---|---|---|
| Model | - | OH-10 Clear-Floor Two Post Lift |
| Lifting Capacity | - | 10,000 lbs |
| Lifting Time | - | 57 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 71 1/2" |
| Maximum Lifting Height With Extension Adapter | A | 80 1/2" |
| Maximum Lock Height Without Extension Adapter | - | 69 1/2" |
| Maximum Lock Height With Extension Adapter | - | 78 1/2" |
| Overall Height | B | 142 1/2" or 150 1/2" |
| Overall Width | C | 135" |
| Drive-Through Clearance | D | 99 1/2" |
| Width Between Columns | E | 112 3/16" |
| Minimum Pad Height | F | 3 15/16" |
| Gross Weight | - | 1,645 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
| Container Quantity | - | 25 units per 20-foot GP container |
Installation note: Install the OH-10 indoors on a flat reinforced concrete foundation using qualified personnel. Confirm the selected height setting, ceiling clearance, anchoring requirements, electrical supply, bay dimensions and all safety requirements stated in the official manual.
Optional Accessories
- Optional width extension kit increases the width between columns from 112 3/16 inches to 118 1/8 inches — Kit No. 20906.
- Standard stackable rubber pads with 1.5-inch, 2.5-inch and 5-inch adapters.
- Toe guards and tool trays included as standard equipment.
Why Choose the AMGO OH-10?
- ALI-certified industrial-grade construction.
- Professional 10,000-lb. lifting capacity.
- Clear-floor design provides an unobstructed workspace.
- Super Asymmetric arms support flexible vehicle positioning.
- Dual direct-drive cylinders reduce wear components.
- Two standard height settings accommodate different ceilings.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO OH-10 combines ALI-certified safety, professional 10,000-lb. lifting performance and a versatile clear-floor layout. Its Super Asymmetric arms, dual direct-drive cylinders, overhead shut-off system and two height settings make it a dependable choice for commercial shops and properly equipped home garages.
Before purchasing or operating the lift, verify vehicle weight and approved lifting points, concrete requirements, electrical specifications, selected height configuration, available bay dimensions and all applicable workplace safety regulations.
