AMGO LR10 Portable Low-Rise Lift – 10,000-lb Capacity
AMGO LR10 Portable Low-Rise Lift – 10,000-lb Capacity

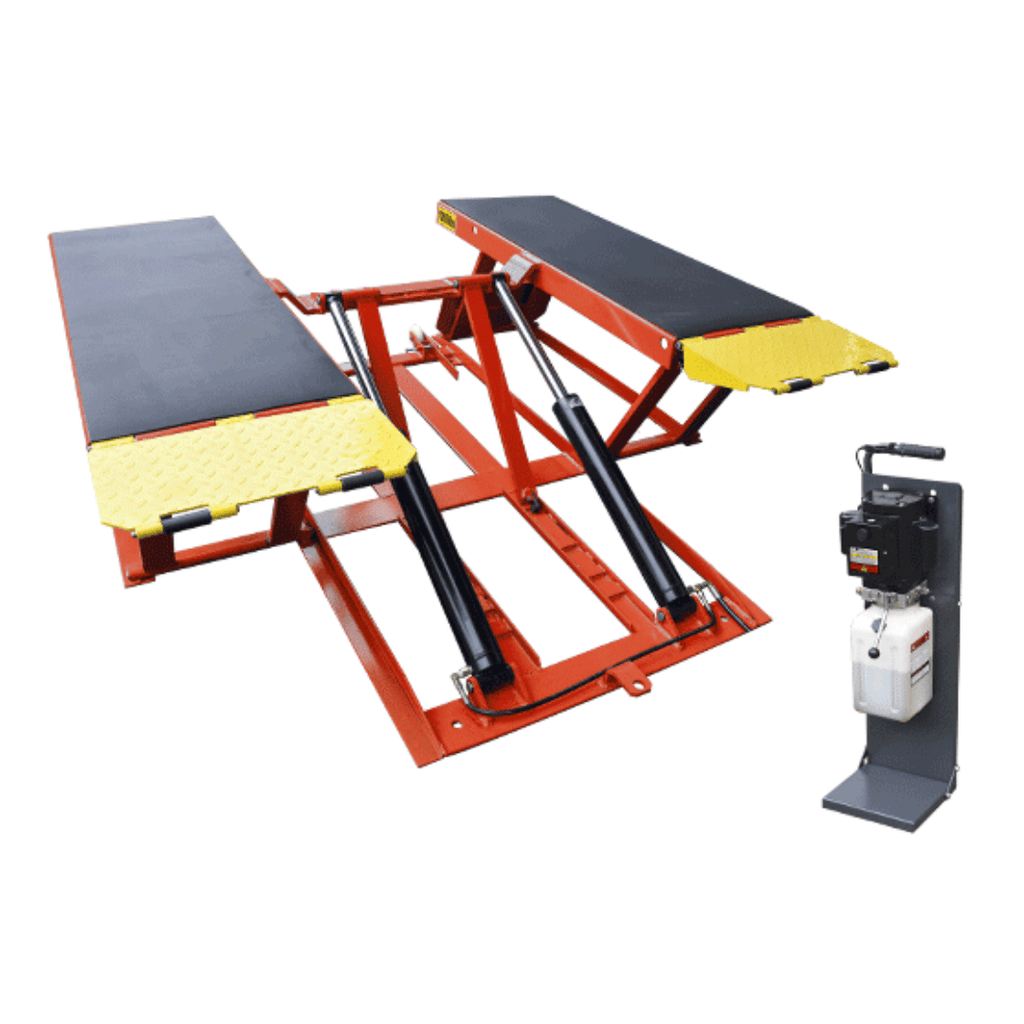

AMGO LR10: A portable 10,000-lb. low-rise lift with a recessed low-profile frame, extra-wide heavy-duty platforms, multiple mechanical lock points, automatic gravitational lock release, extension-style drive-in ramps and a detachable power-unit stand with telescoping dolly.
About the AMGO LR10
The AMGO LR10 is a heavy-duty portable low-rise lift designed for tire, brake, suspension and body-service work on compatible vehicles ranging from compact cars to SUVs and vans. Its recessed frame and expanded platforms combine a low 4 1/8-inch entry height with a professional 10,000-lb. lifting capacity.
A detachable power-unit stand and telescoping dolly allow trained operators to reposition the lift on a suitable level floor. The compact no-anchor design is especially useful for flexible service bays, seasonal workloads and low-ceiling garages.
Key Features
- 10,000-lb. lifting capacity supports compatible compact cars, passenger vehicles, SUVs and vans.
- Recessed low-profile frame provides a 4 1/8-inch minimum height for easier vehicle access.
- Extra-wide heavy-duty platforms improve stability for larger compatible vehicles.
- Hard-rubber platform surfaces help prevent direct vehicle-to-platform contact.
- New telescoping dolly supports easier movement between suitable service locations.
- Detachable power-unit stand improves mobility and compact storage.
- Multiple mechanical lock points provide practical working positions at different heights.
- Automatic gravitational lock release eliminates the need for an external compressed-air source.
- Dual-way drive-in ramps maximize usable space and allow approach from either end.
- Ramp extension function lets the drive-in ramps serve as additional platform length.
- Portable installation allows use without permanently fixing the lift to the floor.
- 1 1/2-inch and 2 3/4-inch rubber pads come standard for compatible lifting points.
Recommended Applications
Tire and Brake Service
The low-rise working height keeps wheels accessible for tire, brake, hub and suspension work.
SUV and Van Service
The 10,000-lb. rating and wider platform support many compatible SUVs, vans and heavier passenger vehicles.
Flexible Service Bays
The detachable power-unit stand and telescoping dolly simplify repositioning when shop layouts change.

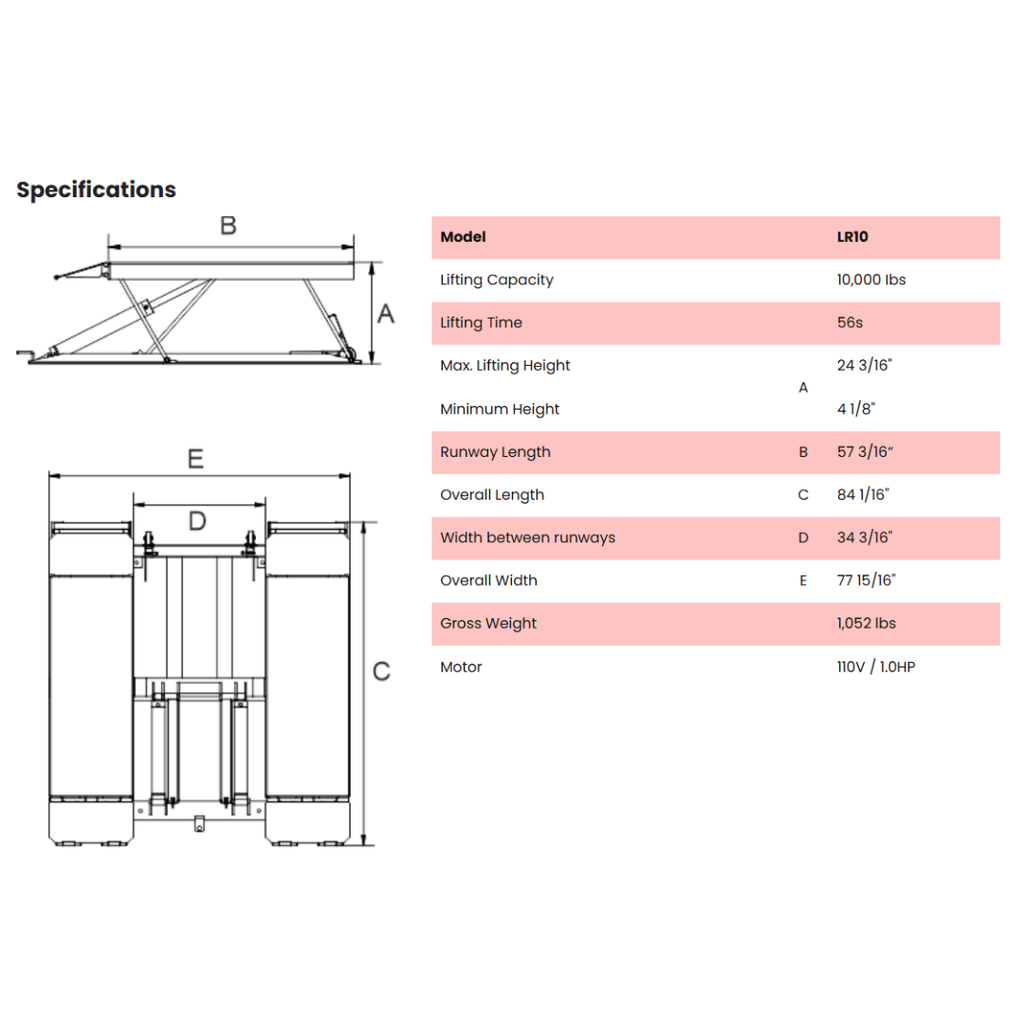

AMGO LR10 Specifications
| Specification | Reference | LR10 Details |
|---|---|---|
| Model | - | LR10 Portable Low-Rise Lift |
| Lifting Capacity | - | 10,000 lbs |
| Lifting Time | - | 56 seconds |
| Maximum Lifting Height | A | 24 3/16" |
| Minimum Height | - | 4 1/8" |
| Runway Length | B | 57 3/16" |
| Overall Length Including Ramps | C | 84 1/16" |
| Width Between Runways | D | 34 3/16" |
| Overall Width | E | 77 15/16" |
| Gross Weight | - | 1,052 lbs |
| Motor | - | 1.0 HP, 110V / 60Hz, Single Phase |
Installation and operation note: AMGO approves the LR10 for indoor installation and use only. Operate it on a suitable level surface, connect it to a properly grounded electrical supply and have electrical work completed by a licensed electrician. Center the vehicle on the runways, confirm approved lifting points and lower the lift onto a mechanical safety lock before beginning service.

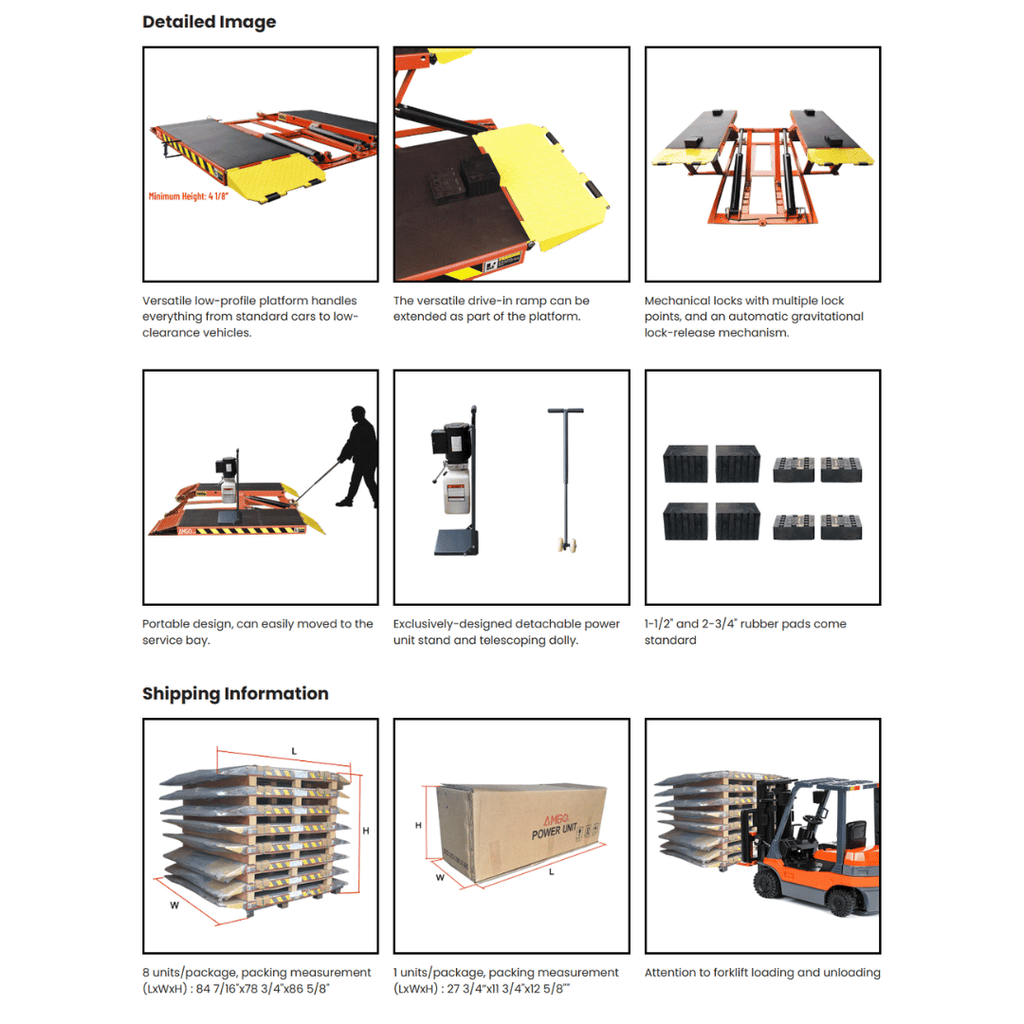

Standard Equipment
- Detachable power-unit stand for flexible placement and compact storage.
- New telescoping dolly assembly for portable movement.
- Heavy-duty expanded platforms with hard-rubber contact surfaces.
- Multiple mechanical safety-lock positions.
- Automatic gravitational lock-release mechanism.
- Dual-way drive-in ramps that also serve as platform extensions.
- Four 1 1/2-inch rubber lifting pads.
- Four 2 3/4-inch rubber lifting pads.
- 110V / 60Hz single-phase power unit.
Why Choose the AMGO LR10?
- Heavy-duty 10,000-lb. capacity in a portable low-rise design.
- Low 4 1/8-inch entry height suits many low-clearance vehicles.
- Wide platforms accommodate compatible SUVs and vans.
- Mechanical locks require no external compressed-air source.
- Dual-entry ramps also expand the usable platform length.
- Compact 1,052-lb. structure can be repositioned with the standard dolly.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO LR10 combines a 10,000-lb. capacity, 4 1/8-inch low-profile entry and portable no-anchor design in a wide, heavy-duty low-rise platform. Its hard-rubber surfaces, telescoping dolly, detachable power-unit stand, multiple locks and extension-style dual-entry ramps make it a practical choice for tire, brake, suspension, body and detailing work.
Before purchasing or operating the lift, verify vehicle weight, dimensions and approved lifting points, available working clearance, floor condition, electrical requirements and all applicable workplace safety regulations.
