AMGO J5H: A 5,000-lb. hand-pump rolling jack for rail-less four post and scissors lifts, featuring adjustable arms, an extendable sliding base, smooth plastic sliders, manual safety locks and standard 2.5-inch stackable adapters.
About the AMGO J5H

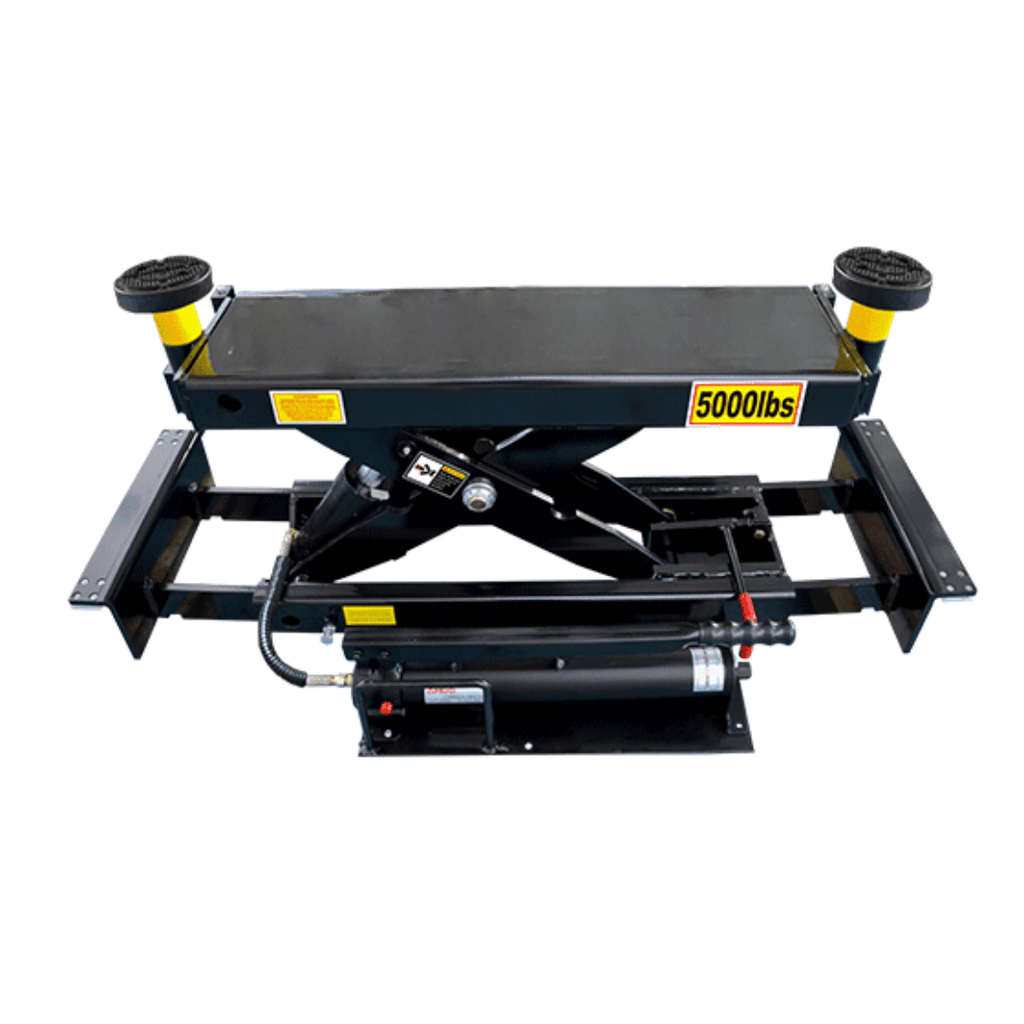

The AMGO J5H is a commercial hand-pump rolling jack designed for rail-less four post and scissors lifts. Its adjustable lower sliding assembly fits a wide range of runway spacing, allowing the jack to work with compatible AMGO lifts and many other lift brands.
The manual hydraulic pump requires no compressed-air or electrical connection. Adjustable arms, sturdy rubber pads and standard 2.5-inch stackable adapters help technicians position the jack beneath approved vehicle support points for wheel-free service.
Key Features
- 5,000-lb. lifting capacity supports wheel-free service on compatible passenger cars and light-duty vehicles.
- Commercial-grade hand pump provides hydraulic lifting without an external air or electrical source.
- Extendable lower sliding assembly adjusts to fit runway spacing from 35 5/8 inches to 50 3/16 inches.
- Durable plastic sliders help the jack move smoothly along compatible lift runways.
- Adjustable long-reach arms position the rubber pads under approved vehicle support points.
- 33 1/8-inch to 53 7/16-inch arm-pad reach supports varied chassis widths.
- Manual safety locking system provides secure working positions during service.
- Sturdy drop-in rubber pads come standard for secure chassis contact.
- 2.5-inch stackable adapters increase lifting reach for vehicles with higher chassis points.
- Ergonomic guardrail doubles as a booster handle for moving the jack along the runways.
- High-quality hydraulic cylinder and hose support dependable commercial operation.
- Indoor-use design suits professional workshops and compatible home-garage lifts.
Recommended Applications
Wheel-Free Service
Raise the vehicle by its approved chassis points for brake, tire, wheel-bearing and suspension work.
Four Post Parking Lifts
The rail-less sliding design is especially suited to compatible parking lifts without dedicated jack rails.
Scissors and General-Service Lifts
The adjustable support base and arms improve compatibility with many runway layouts and vehicle widths.

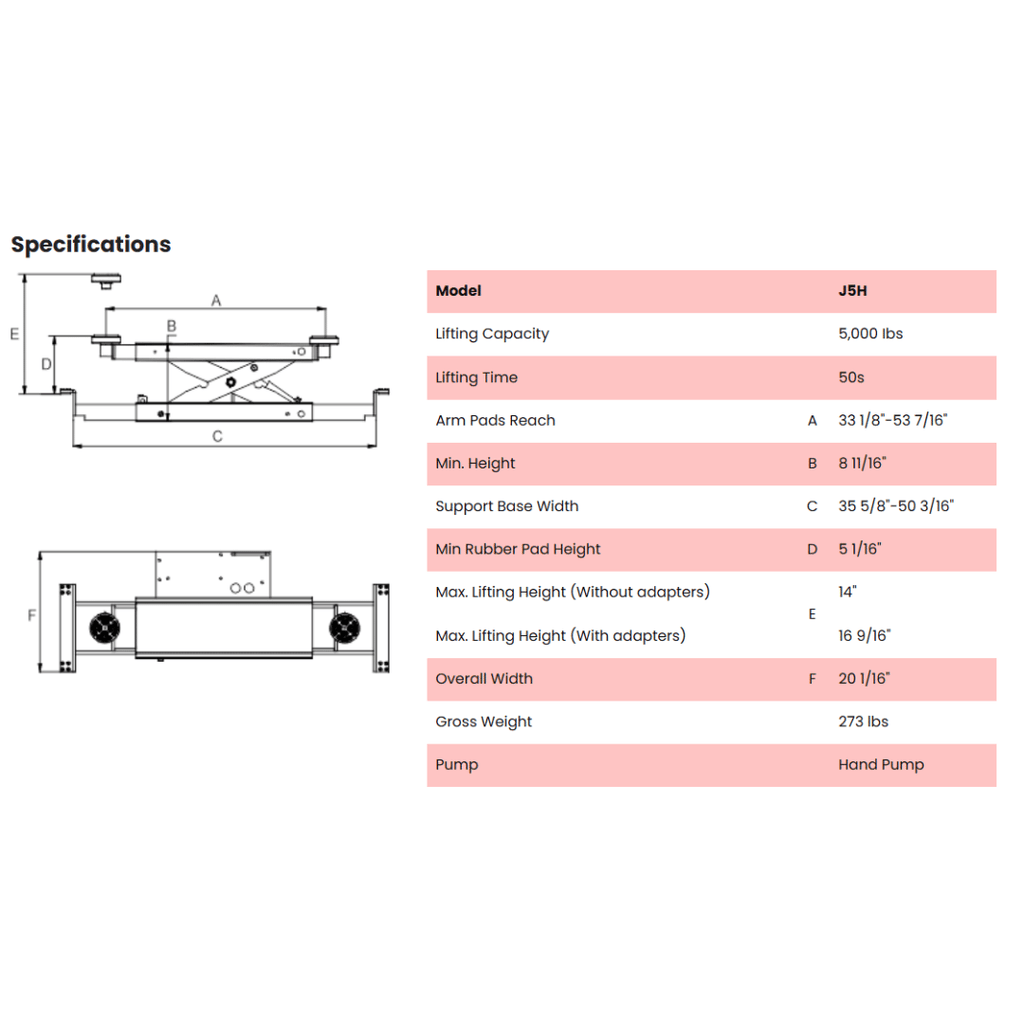

AMGO J5H Specifications
| Specification | Reference | J5H Details |
|---|---|---|
| Model | - | J5H Hand-Pump Rolling Jack |
| Lifting Capacity | - | 5,000 lbs |
| Lifting Time | - | 50 seconds |
| Arm-Pad Reach | A | 33 1/8" to 53 7/16" |
| Minimum Jack Height | B | 8 11/16" |
| Adjustable Support-Base Width | C | 35 5/8" to 50 3/16" |
| Minimum Rubber-Pad Height | D | 5 1/16" |
| Maximum Height Without Adapters | E | 14" |
| Maximum Height With Adapters | - | 16 9/16" |
| Overall Width | F | 20 1/16" |
| Gross Weight | - | 273 lbs |
| Pump | - | Manual hand pump |
Compatibility and operation note: Confirm the host lift's runway spacing, structure and rated capacity before installing the J5H. The rolling jack is approved for indoor use only and must be installed and maintained by qualified personnel. Always position the pads beneath manufacturer-approved vehicle support points and lower the jack onto its mechanical safety lock before beginning service.

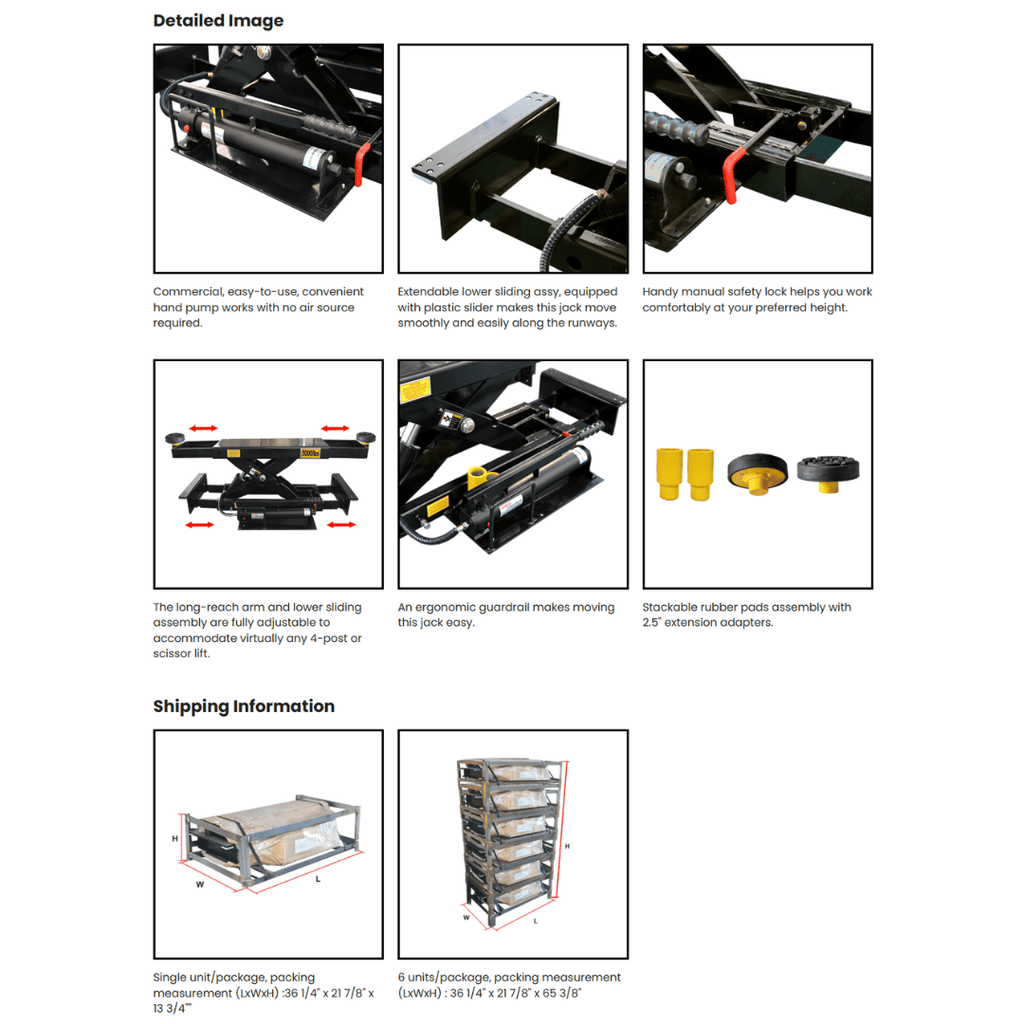

Standard Equipment
- Commercial-grade manual hydraulic hand pump.
- Adjustable long-reach lifting arms.
- Extendable lower sliding assembly with plastic sliders.
- Manual safety-lock system with secure working positions.
- Drop-in sturdy rubber-pad assemblies.
- Standard 2.5-inch stackable extension adapters.
- Ergonomic guardrail and booster handle.
- High-pressure hydraulic hose and commercial-grade cylinder.
Why Choose the AMGO J5H?
- Provides 5,000-lb. wheel-free lifting capability.
- Requires no compressed-air or electrical connection.
- Adjustable base fits many rail-less four post and scissors lifts.
- Long-reach arms accommodate varied approved lifting points.
- Plastic sliders support smooth movement along runways.
- Standard rubber pads and 2.5-inch adapters add versatility.
Every AMGO Lift Is Guaranteed
Every AMGO lift and rolling jack is supplied with a user manual containing installation, operation, maintenance and troubleshooting guidance. Following these instructions supports reliable daily operation and safer wheel-free service.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its lifting equipment with comprehensive warranty coverage:
Product Overview
The AMGO J5H combines a 5,000-lb. capacity with fully manual hydraulic operation, making it a practical rolling jack where compressed air is unavailable. Its adjustable support base, long-reach arms, smooth plastic sliders, rubber pads, stackable adapters and manual safety locks support dependable wheel-free service on compatible four post and scissors lifts.
Before purchasing or operating the jack, verify host-lift compatibility, runway spacing and capacity, vehicle weight and approved lifting points, available clearance and all applicable workshop safety requirements.
