AMGO DX-12A: A heavy-duty 12,000-lb. double-scissors alignment lift with 9,000-lb. auxiliary lifting platforms, photocell synchronization, hose-burst protection and full-rise under-vehicle access.
About the AMGO DX-12A

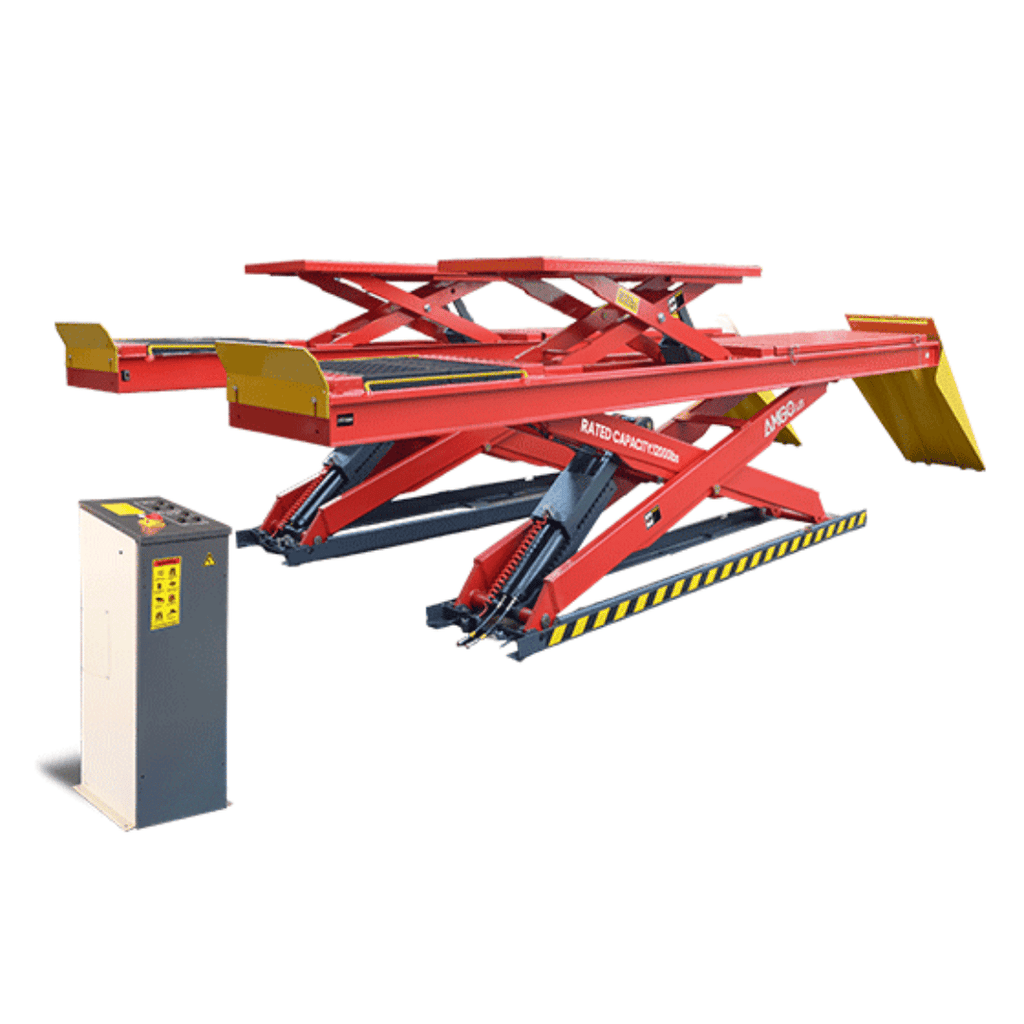

The AMGO DX-12A is a heavy-duty double-scissors alignment lift designed for professional workshops performing wheel alignment, brake, tire, suspension and general undercar service. Its main platforms provide a 12,000-lb. lifting capacity, while the integrated auxiliary scissors lift supports up to 9,000 pounds.
The auxiliary platforms lift all four wheels clear of the main runways, allowing technicians to complete wheel-free service without adding a separate rolling jack. Large non-skid diamond platforms, specialized hydraulic cylinders and a reinforced X-scissor structure support demanding daily workloads.
Key Features
- 12,000-lb. main lifting capacity supports compatible cars, vans, pickups and light trucks.
- 9,000-lb. auxiliary scissors lift raises all wheels clear of the main platforms for wheel-free service.
- Double-scissors configuration combines alignment and auxiliary lifting functions in one service platform.
- Full-rise design provides generous standing workspace beneath raised vehicles.
- Heavy-duty X-scissor structure uses large steel tubes for strength under demanding workloads.
- Non-skid extended diamond platforms improve tire grip and accommodate different wheelbases.
- Extendable auxiliary platforms adjust from 63 inches to 74 inches for varied lifting-point layouts.
- Photocell synchronization system monitors platform equalization during operation.
- Hydraulic hose-burst valves add safety protection within the cylinder system.
- Mechanical air-release locks provide secure locking with controlled pneumatic release.
- Automatic safety stop comes standard for additional protection near floor level.
- ETL-certified AMGO power unit and electro-hydraulic control cabinet come standard.
Recommended Applications
Professional Wheel Alignment
The long alignment range, optional turnplates and auxiliary lift support precise two-wheel and four-wheel service.
Brake, Tire and Suspension Work
The 9,000-lb. auxiliary scissors lift raises all wheels for convenient wheel-free repairs and inspections.
General Automotive Service
The full-rise double-scissors design provides practical access for undercar maintenance and repair work.

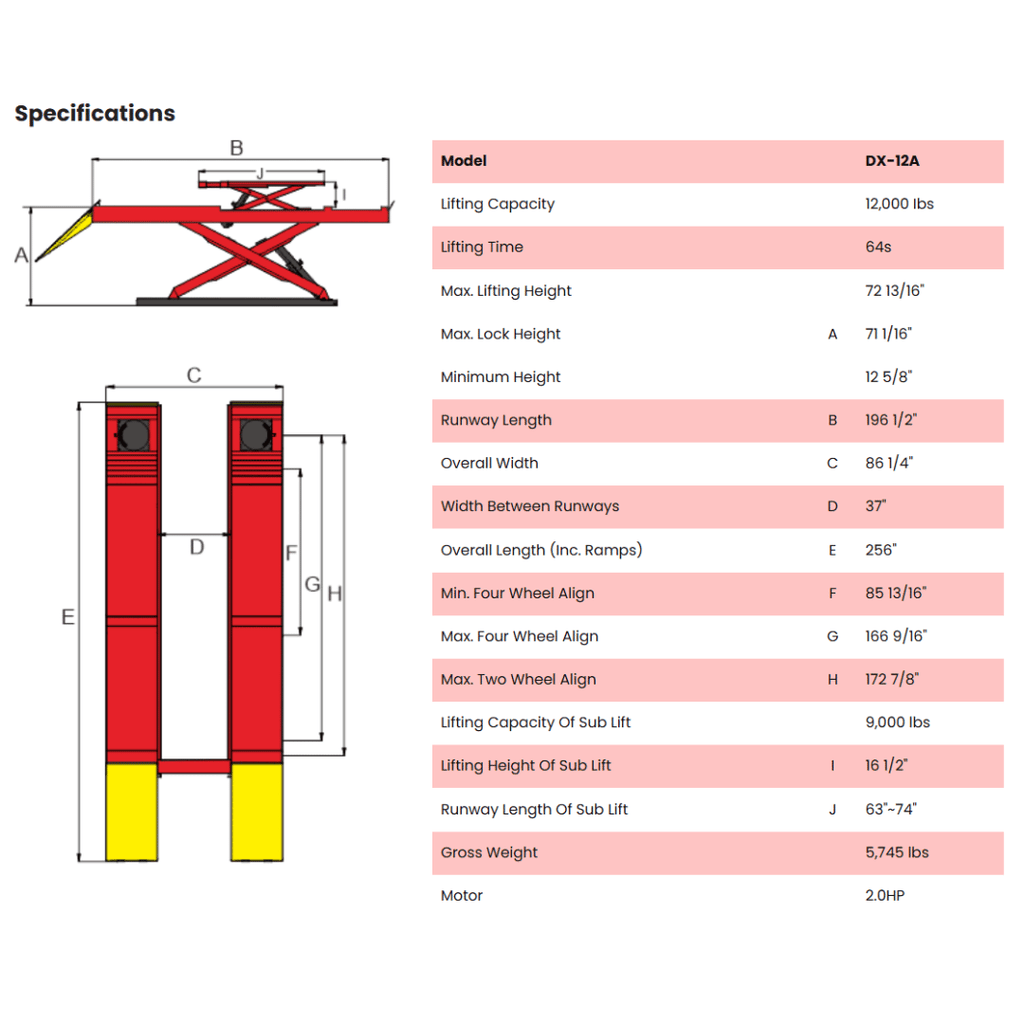

AMGO DX-12A Specifications
| Specification | Reference | DX-12A Details |
|---|---|---|
| Model | - | DX-12A Double-Scissors Alignment Lift |
| Main Lifting Capacity | - | 12,000 lbs |
| Auxiliary Lift Capacity | - | 9,000 lbs |
| Lifting Time | - | 64 seconds |
| Maximum Lifting Height | A | 72 13/16" |
| Maximum Lock Height | - | 71 1/16" |
| Minimum Height | - | 12 5/8" |
| Runway Length | B | 196 1/2" |
| Overall Width | C | 86 1/4" |
| Width Between Runways | D | 37" |
| Overall Length Including Ramps | E | 256" |
| Minimum Four-Wheel Alignment Wheelbase | F | 85 13/16" |
| Maximum Four-Wheel Alignment Wheelbase | G | 166 9/16" |
| Maximum Two-Wheel Alignment Wheelbase | H | 172 7/8" |
| Auxiliary Lift Height | I | 16 1/2" |
| Adjustable Auxiliary Runway Length | J | 63" to 74" |
| Gross Weight | - | 5,745 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: The DX-12A is approved for indoor surface-mount or properly prepared flush-mount installation. The official manual specifies level concrete at least 4 inches thick with a minimum strength of 3,000 psi, a suitable electrical supply and a regulated compressed-air connection for the lock-release system. Installation must be completed by qualified personnel.

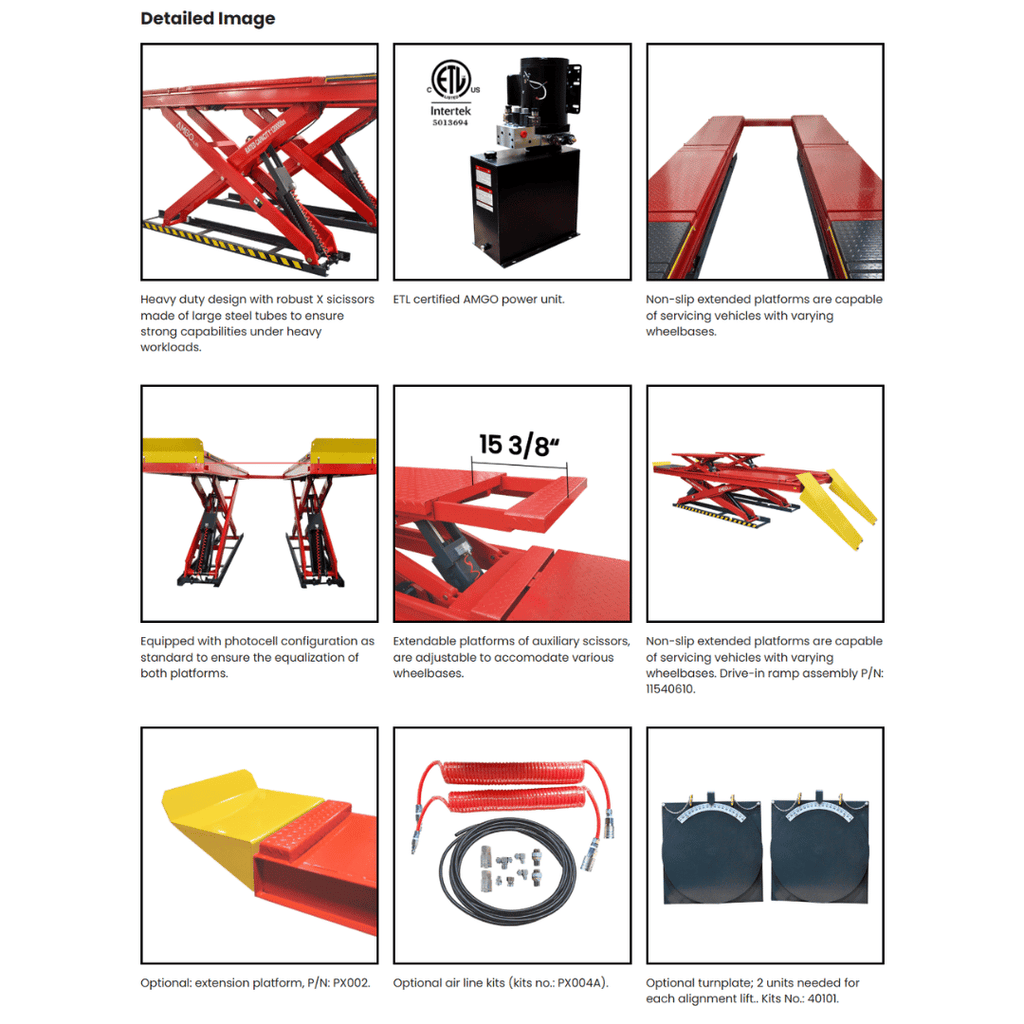

Alignment Equipment and Optional Accessories
- Integrated 9,000-lb. auxiliary scissors lift for wheel-free service.
- Extendable auxiliary platforms adjust from 63 inches to 74 inches.
- Drive-in ramp assembly — Part No. 11540610.
- Optional extension platform — Part No. PX002.
- Optional pneumatic air-line kit — Kit No. PX004A.
- Optional turnplates — Kit No. 40101; two units are required for each alignment lift.
Why Choose the AMGO DX-12A?
- Heavy-duty 12,000-lb. main lifting capacity.
- Integrated 9,000-lb. auxiliary lift eliminates the need for separate rolling jacks.
- Double-scissors design supports alignment and wheel-free service.
- Photocell synchronization helps maintain platform equalization.
- Hose-burst valves and mechanical locks enhance operational safety.
- Surface-mount and flush-mount installation options provide layout flexibility.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO DX-12A combines a 12,000-lb. full-rise alignment lift with an integrated 9,000-lb. auxiliary scissors system. Its heavy-duty X structure, extended non-skid runways, photocell synchronization, hose-burst protection and wheel-free lifting capability make it a versatile solution for alignment, brake, tire, suspension and general undercar service.
Before purchasing or operating the lift, verify vehicle dimensions and weight, alignment wheelbase compatibility, auxiliary lifting-point requirements, concrete and installation conditions, electrical and compressed-air supply, available working space and all applicable workplace safety regulations.
