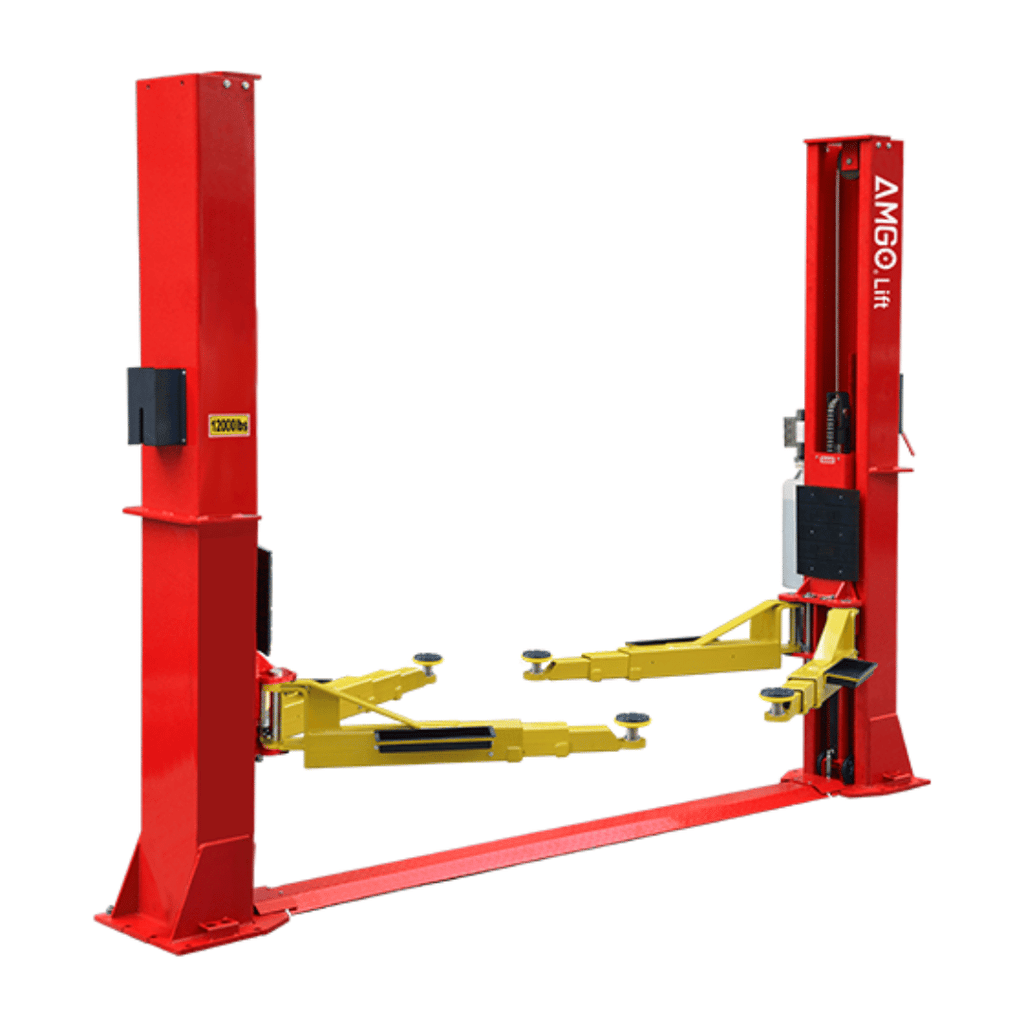

AMGO BP-12: A heavy-duty 12,000-lb. base plate two post lift with two installation widths, four 3-stage retractable arms, single-point safety release and standard saddle adapters.
About the AMGO BP-12
The AMGO BP-12 is a heavy-duty base plate two post lift engineered for commercial shops and well-equipped home garages that service everything from compact cars to full-size trucks.
Its 12,000-lb. lifting capacity, long 3-stage telescoping arms and two installation-width settings provide the strength and flexibility required for wider, taller and longer vehicles. The open-top base plate design also keeps the overhead area clear.
Key Features
- 12,000-lb. lifting capacity supports compatible compact cars, passenger vehicles, pickups and full-size trucks.
- Four 3-stage retractable arms provide extended reach for a wide range of vehicle lifting points.
- Two installation-width settings offer 118 1/8-inch or 123 1/2-inch spacing between columns.
- Single-point manual safety release unlocks both columns simultaneously from one side.
- Dual safety design provides additional protection during lifting and servicing.
- Automatic arm restraints use high-strength moon gears and arm locks to help secure the arms.
- Self-lubricating UHMW polyethylene sliders support smooth carriage travel and reduced maintenance.
- Bronze bushings contribute to dependable operation in demanding workshop environments.
- Aero synchronization cables come standard for coordinated lifting performance.
- Detachable toe guards and tool trays are included for added service-bay convenience.
- Heavy-duty single-screw rubber pads and saddle adapters are supplied as standard.
- 3-inch and 6-inch extension adapters come standard for additional lifting-point flexibility.
Recommended Applications
Commercial Repair Shops
Designed for heavy-duty inspections, maintenance, repairs and general automotive service work.
Truck and Fleet Service
The high capacity, long arms and adjustable width support many compatible pickups and full-size vehicles.
Professional Home Garages
A robust lifting solution for garages with suitable concrete, electrical supply and adequate bay dimensions.

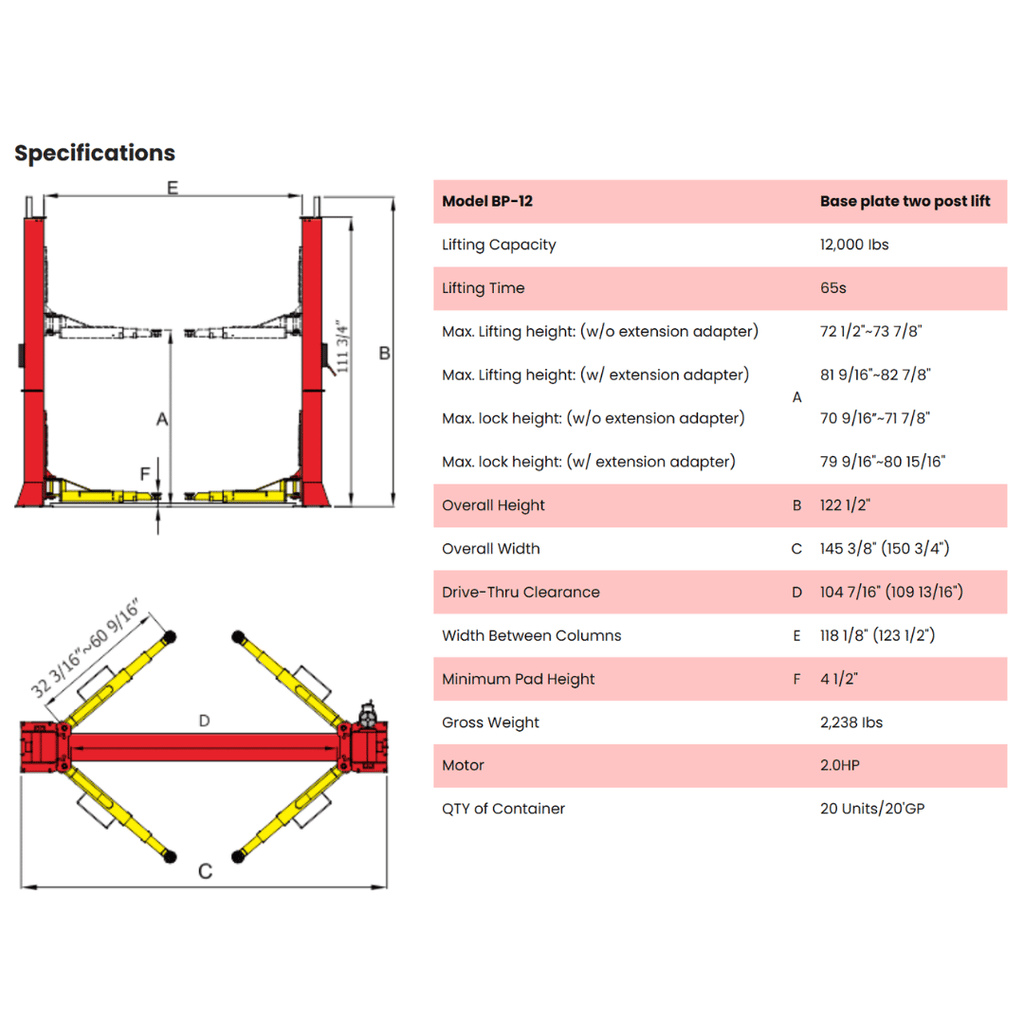

AMGO BP-12 Specifications
| Specification | Reference | BP-12 Details |
|---|---|---|
| Model | - | BP-12 Base Plate Two Post Lift |
| Lifting Capacity | - | 12,000 lbs |
| Lifting Time | - | 65 seconds |
| Maximum Lifting Height Without Extension Adapter | A | 72 1/2" to 73 7/8" |
| Maximum Lifting Height With Extension Adapter | A | 81 9/16" to 82 7/8" |
| Maximum Lock Height Without Extension Adapter | - | 70 9/16" to 71 7/8" |
| Maximum Lock Height With Extension Adapter | - | 79 9/16" to 80 15/16" |
| Overall Height | B | 122 1/2" |
| Overall Width | C | 145 3/8" or 150 3/4" |
| Drive-Through Clearance | D | 104 7/16" or 109 13/16" |
| Width Between Columns | E | 118 1/8" or 123 1/2" |
| Minimum Pad Height | F | 4 1/2" |
| Gross Weight | - | 2,238 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |

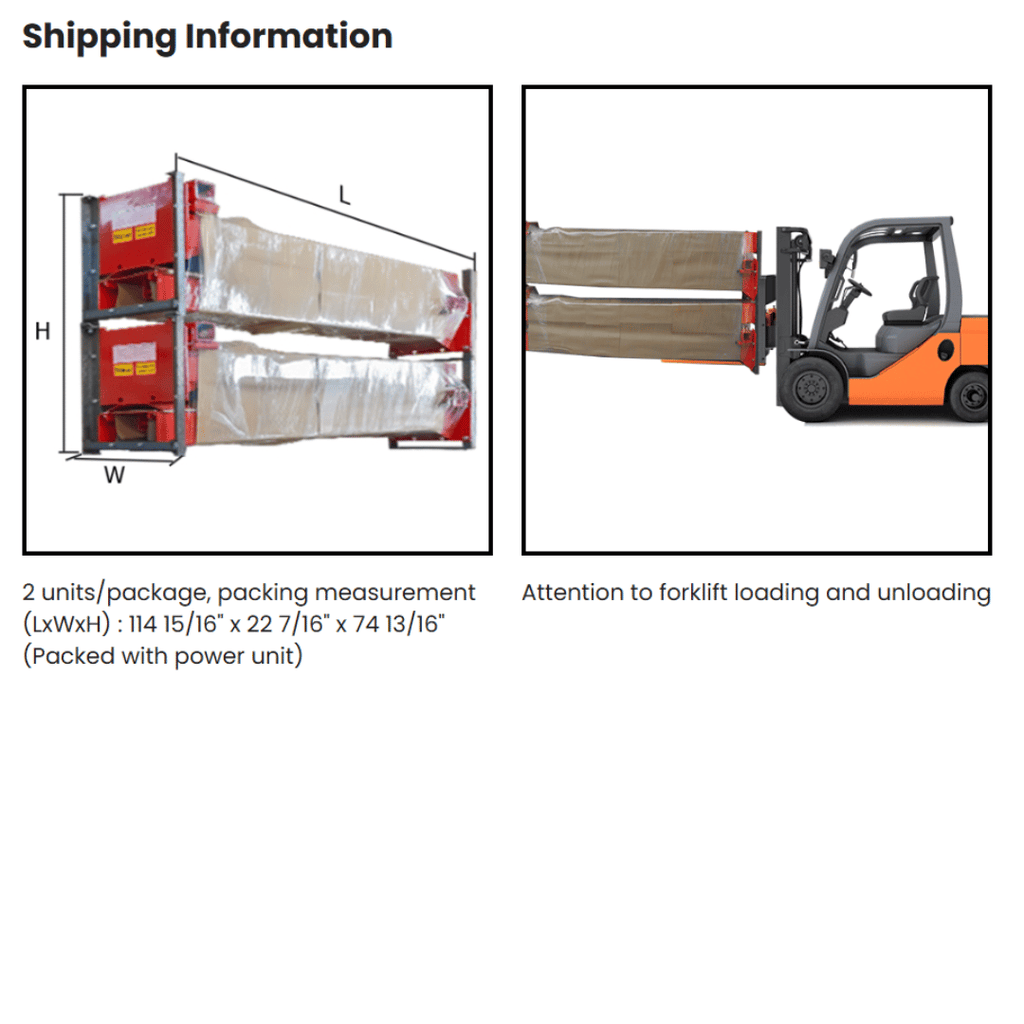

| Container Quantity | - | 20 units per 20-foot GP container |
Installation note: Install the BP-12 indoors on a suitable reinforced concrete foundation using qualified personnel. Confirm the selected column width, ceiling clearance, anchoring requirements, electrical supply and all safety clearances stated in the official manual.

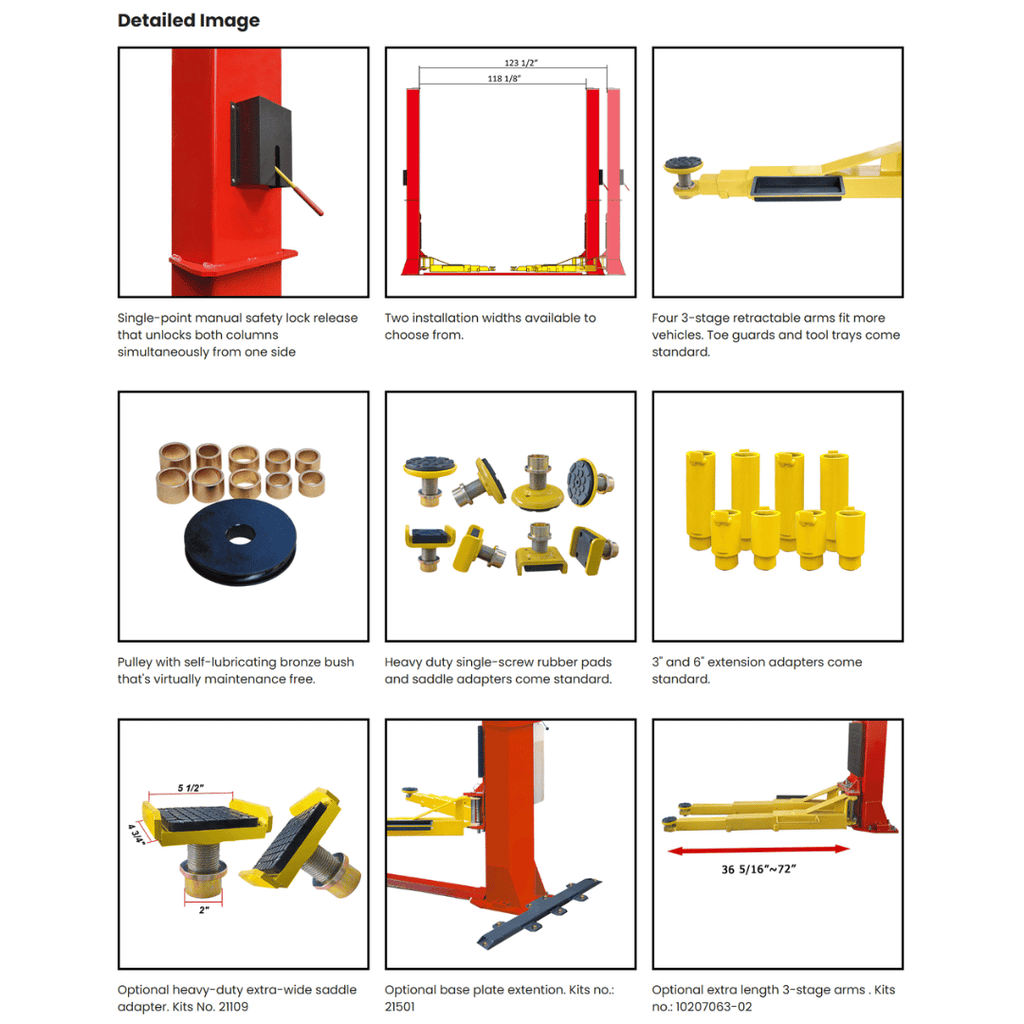

Standard and Optional Equipment
- Heavy-duty single-screw rubber pads and saddle adapters included as standard.
- Standard 3-inch and 6-inch extension adapters.
- Optional heavy-duty extra-wide saddle adapter — Kit No. 21109.
- Optional base plate extension — Kit No. 21501.
- Optional extra-length 3-stage arm kit — Kit No. 10207063-02.
Why Choose the AMGO BP-12?
- Heavy-duty 12,000-lb. lifting capacity.
- Two installation widths for compact cars, pickups and wider trucks.
- Four long 3-stage arms for broad lifting-point coverage.
- Single-point release unlocks both columns from one side.
- Automatic arm restraints and dual safety design.
- Rubber pads, saddle adapters and two extension-adapter sizes included.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO BP-12 combines heavy-duty lifting strength with an adaptable base plate layout. Its 12,000-lb. capacity, two column-width settings, long 3-stage arms and standard saddle adapters make it a versatile solution for servicing compact vehicles, pickups and full-size trucks.
Before purchasing or operating the lift, verify vehicle weight and approved lifting points, reinforced concrete requirements, electrical specifications, selected installation width, available ceiling height and all applicable workplace safety regulations.
