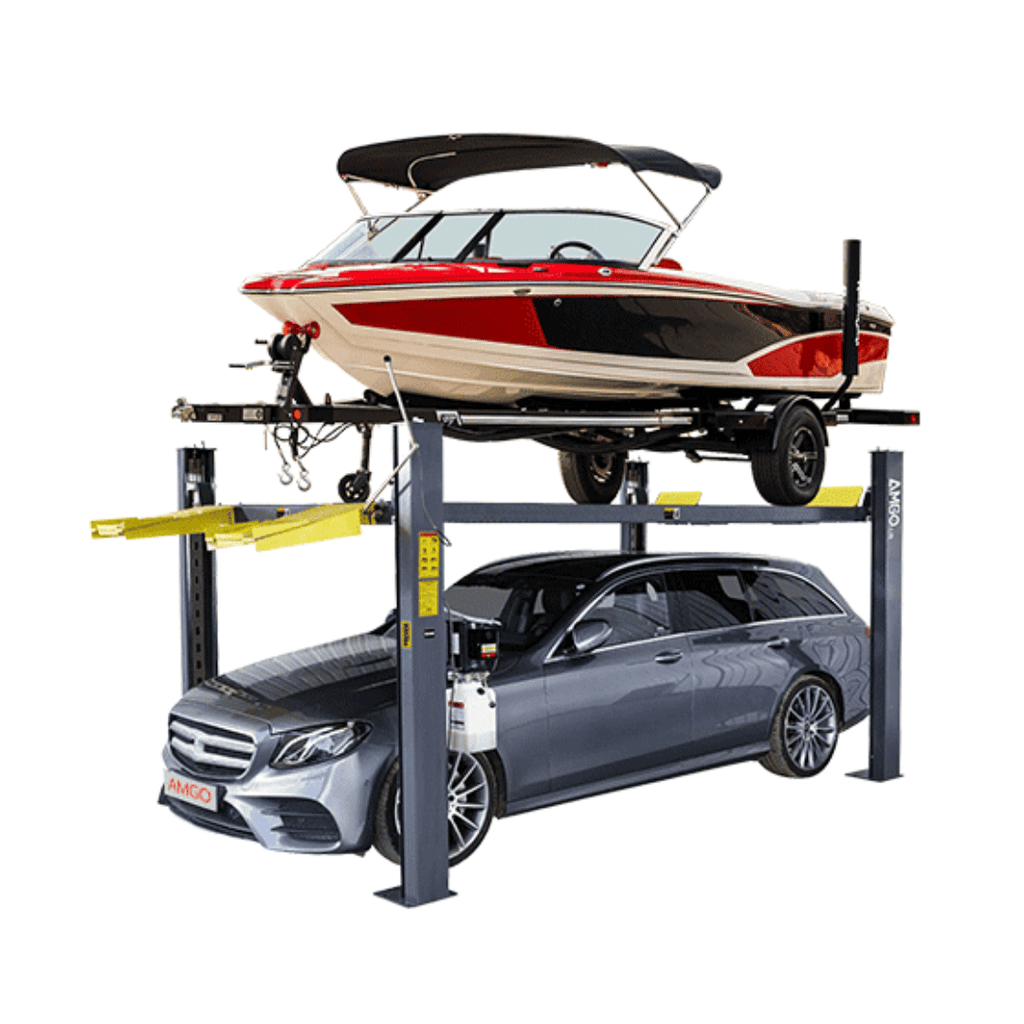

AMGO 409-HPX: A 9,000-lb. extended boat and wide-vehicle storage lift with a longer frame than the 408-HPX, two runway-width settings, 111-inch drive-through clearance, concealed single-point release and dual safety protection.
About the AMGO 409-HPX
The AMGO 409-HPX is the higher-capacity, extended-length model in AMGO's boat and wide-vehicle storage range. Its 9,000-lb. rating and approximately 16 inches of additional frame length over the 408-HPX make it suitable for many heavier boats, longer trailers and large specialty vehicles.
Two runway-width settings provide flexibility for different trailer tracks, while the 111-inch drive-through clearance supports easier loading. The lift combines non-skid platforms, foldable ramps, a concealed manual release and layered mechanical safety protection.
Key Features
- 9,000-lb. lifting capacity supports compatible heavier boats, trailers and large vehicles.
- Extended frame design adds approximately 16 inches of length compared with the 408-HPX.
- Two runway-width settings accommodate different trailer tracks and vehicle configurations.
- 111-inch drive-through clearance provides generous access between the lift posts.
- Single-cylinder cable-drive system provides coordinated platform lifting.
- Concealed single-point manual release simplifies lowering without an external air source.
- Automatic mechanical primary locks secure the lift at multiple storage heights.
- Cable-slack secondary protection adds safety if lifting-cable tension is lost.
- Non-skid diamond platforms improve tire and trailer grip during loading.
- Adjustable safety-lock ladders support level positioning at multiple heights.
- Foldable drive-on ramps come standard for convenient loading.
- Flexible power-unit placement allows installation at any corner of the lift.
Recommended Applications
Heavy Boat and Trailer Storage
The 9,000-lb. capacity and longer frame suit many compatible heavier recreational boats and trailers.
Long or Wide Vehicle Storage
Dual-width runway settings and broad post spacing support many specialty and wide-body vehicles.
Residential and Commercial Facilities
Increase storage capacity in suitable garages, marinas, dealerships and professional storage buildings.
AMGO 409-HPX Specifications
| Specification | Reference | 409-HPX Details |
|---|---|---|
| Model | - | 409-HPX Extended Boat and Wide-Vehicle Storage Lift |
| Lifting Capacity | - | 9,000 lbs |
| Lifting Time | - | 143 seconds at 110V / 57 seconds at 220V |
| Overall Length Including Ramps | A | 238 1/8" |
| Overall Length Without Ramps | B | 204 3/4" |
| Overall Width | C | 131 7/8" |
| Width Between Posts | D | 122 1/4" |
| Maximum Lifting Height | E | 88 1/16" |
| Maximum Locking Height | - | 85 5/16" |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Maximum Height Underneath Runway | H | 82 9/16" |
| Maximum Lock Height Under Runway | - | 79 13/16" |
| Drive-Through Clearance | I | 111" |
| Width Between Runways | J | 46 1/2" narrow / 64 15/16" wide |
| Outside Edge of Runways | K | 86 1/2" narrow / 104 15/16" wide |
| Gross Weight | - | Approximately 1,980 lbs |
| Power Options | - | 110V or 220V single-phase configuration |
Installation note: The current manual specifies installation on a smooth, level concrete floor at least 4 inches thick with a minimum test strength of 3,000 psi. Use a properly grounded electrical supply and a licensed electrician. Standard approval is for indoor installation; outdoor installation requires AMGO's optional motor protective cover.
Standard and Optional Equipment
- Two foldable drive-on ramps included as standard.
- Two adjustable runway-width positions for trailer and vehicle compatibility.
- Standard concealed manual lock-release system.
- Optional extended aluminum-alloy drive-in ramps — Kit No. 40814.
- Optional 24-inch trailer extension platform — Kit No. 40818.
- Optional motor protective cover with emergency-stop switch — Kit No. 40810.
- Optional rubber wheel chock — Part No. 40811.
- Optional rolling-jack and caster-kit configurations are identified in the current manual.
Why Choose the AMGO 409-HPX?
- Higher 9,000-lb. capacity for heavier storage applications.
- Approximately 16 inches longer than the 408-HPX.
- Two runway-width settings improve trailer compatibility.
- 111-inch drive-through opening supports easier loading.
- Primary locks and cable-slack protection provide dual safety.
- Optional ramp and platform extensions support longer combinations.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO 409-HPX combines a 9,000-lb. capacity, extended frame, dual-width runway settings and 111-inch drive-through opening for heavier boats, longer trailers and large vehicles. Its concealed manual release, primary and cable-slack safety systems, non-skid platforms and standard foldable ramps make it a capable long-term storage solution.
Before purchasing or operating the lift, verify combined vehicle-and-trailer weight, tire or trailer-track dimensions, overall length and height, ceiling and drive-through clearances, concrete and electrical requirements and all applicable building and workplace safety regulations.
