AMGO 409-HP: A Pro-series 9,000-lb. high-profile four post parking lift with long, wide runways, dual direct-drive cylinders, concealed single-point safety release and generous clearance for taller vehicles.
About the AMGO 409-HP

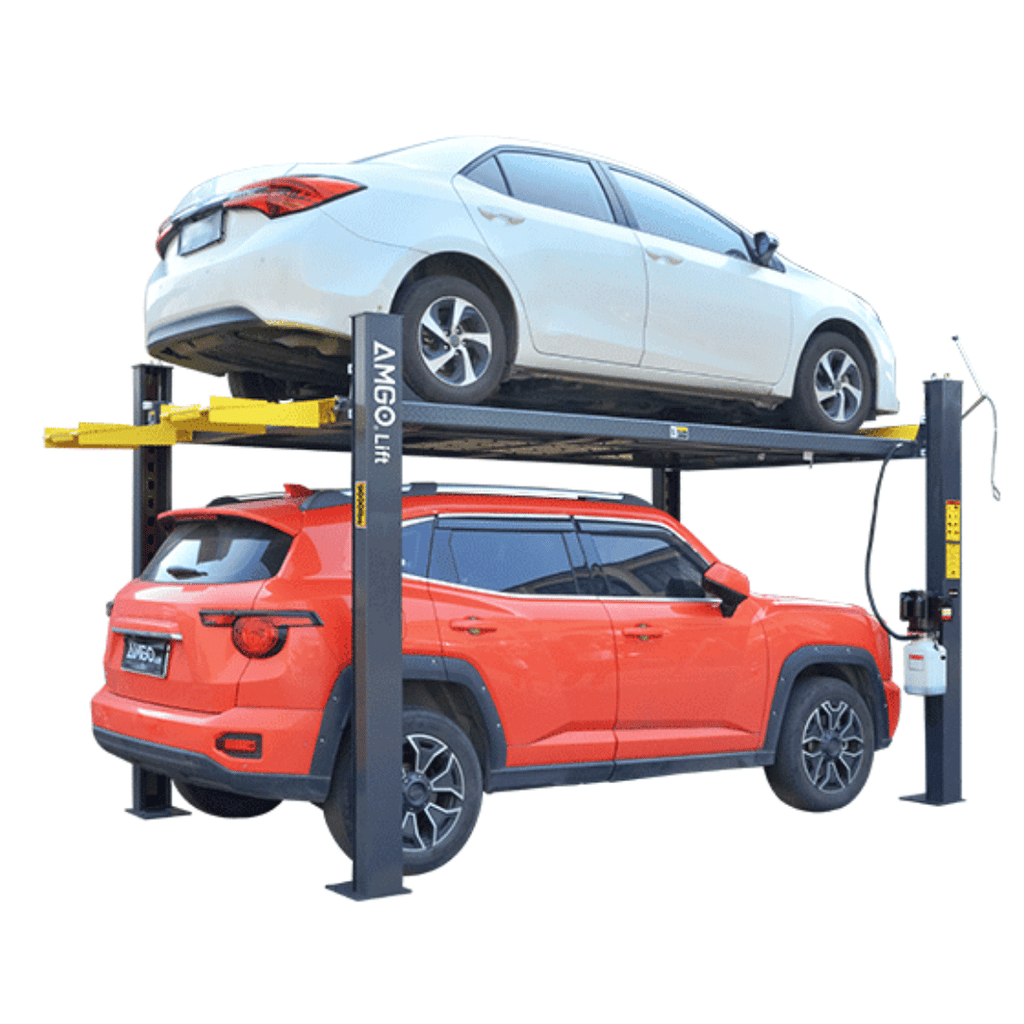

The AMGO 409-HP is a Pro-series high-profile four post parking lift built for compatible passenger cars, SUVs and light trucks. Its 9,000-lb. capacity, long runways and wide drive-through clearance support larger and taller vehicles.
The lift combines commercial-grade construction with a concealed manual lock-release system, dual direct-drive cylinders and back-to-back installation capability. Its 82 9/16-inch maximum underneath height provides generous parking clearance beneath the raised platform.
Key Features
- 9,000-lb. lifting capacity supports compatible passenger cars, SUVs and light trucks.
- Pro-series long-platform design accommodates many longer-wheelbase vehicles.
- High-profile lifting range provides additional clearance for taller vehicles parked underneath.
- Dual hydraulic direct-drive cylinders deliver dependable lifting performance.
- Concealed safety-lock control protects the mechanism and maintains a clean exterior.
- Manual single-point lock release simplifies controlled lowering without compressed air.
- Automatic primary mechanical locks secure the lift at multiple parking heights.
- Cable-slack secondary safety system adds another layer of operational protection.
- Aero-standard lifting cables support coordinated platform movement.
- Reinforced double-shaped columns increase structural strength and stability.
- Non-slip platforms with foldable ramps support safer vehicle loading and storage.
- Back-to-back installation support helps maximize available parking capacity.
Recommended Applications
SUV and Light-Truck Parking
The high-profile structure and wide entry accommodate many compatible taller and wider vehicles.
Residential Vehicle Storage
Create an additional parking position in garages with suitable ceiling height and floor conditions.
Commercial Parking Facilities
Long runways, strong columns and back-to-back layouts support efficient professional vehicle storage.

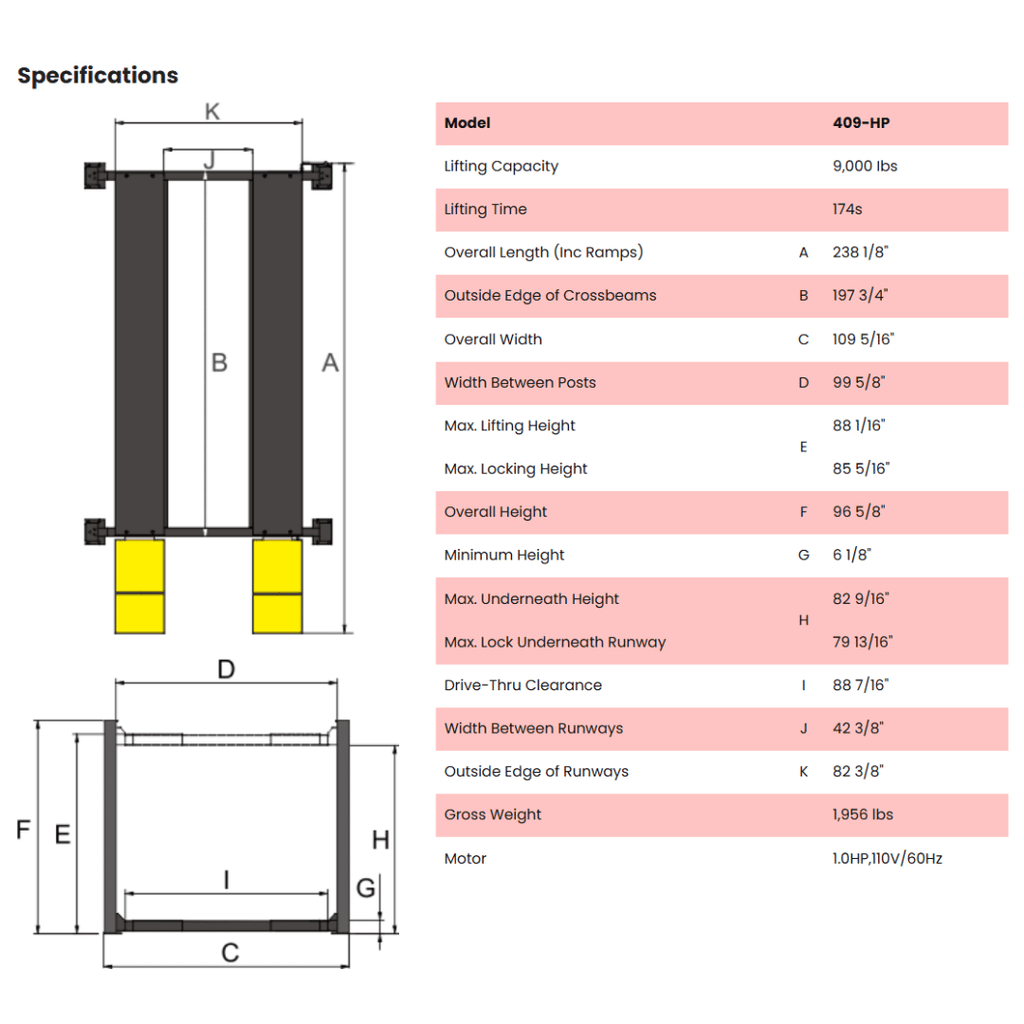

AMGO 409-HP Specifications
| Specification | Reference | 409-HP Details |
|---|---|---|
| Model | - | 409-HP Pro Four Post Parking Lift |
| Lifting Capacity | - | 9,000 lbs |
| Lifting Time | - | 174 seconds |
| Overall Length Including Ramps | A | 238 1/8" |
| Outside Edge of Crossbeams | B | 197 3/4" |
| Overall Width | C | 109 5/16" |
| Width Between Posts | D | 99 5/8" |
| Maximum Lifting Height | E | 88 1/16" |
| Maximum Locking Height | - | 85 5/16" |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 6 1/8" |
| Maximum Underneath Height | H | 82 9/16" |
| Maximum Lock Height Under Runway | - | 79 13/16" |
| Drive-Through Clearance | I | 88 7/16" |
| Width Between Runways | J | 42 3/8" |
| Outside Edge of Runways | K | 82 3/8" |
| Gross Weight | - | 1,956 lbs |
| Motor | - | 1.0 HP, 110V / 60Hz |
Installation note: The 409-HP is intended for installation on a flat, level concrete floor. The official manual specifies concrete at least 4 inches thick with a minimum strength of 3,000 psi and a properly grounded electrical supply installed by a licensed electrician. Confirm ceiling clearance, bay dimensions, anchoring and all local safety requirements before installation.

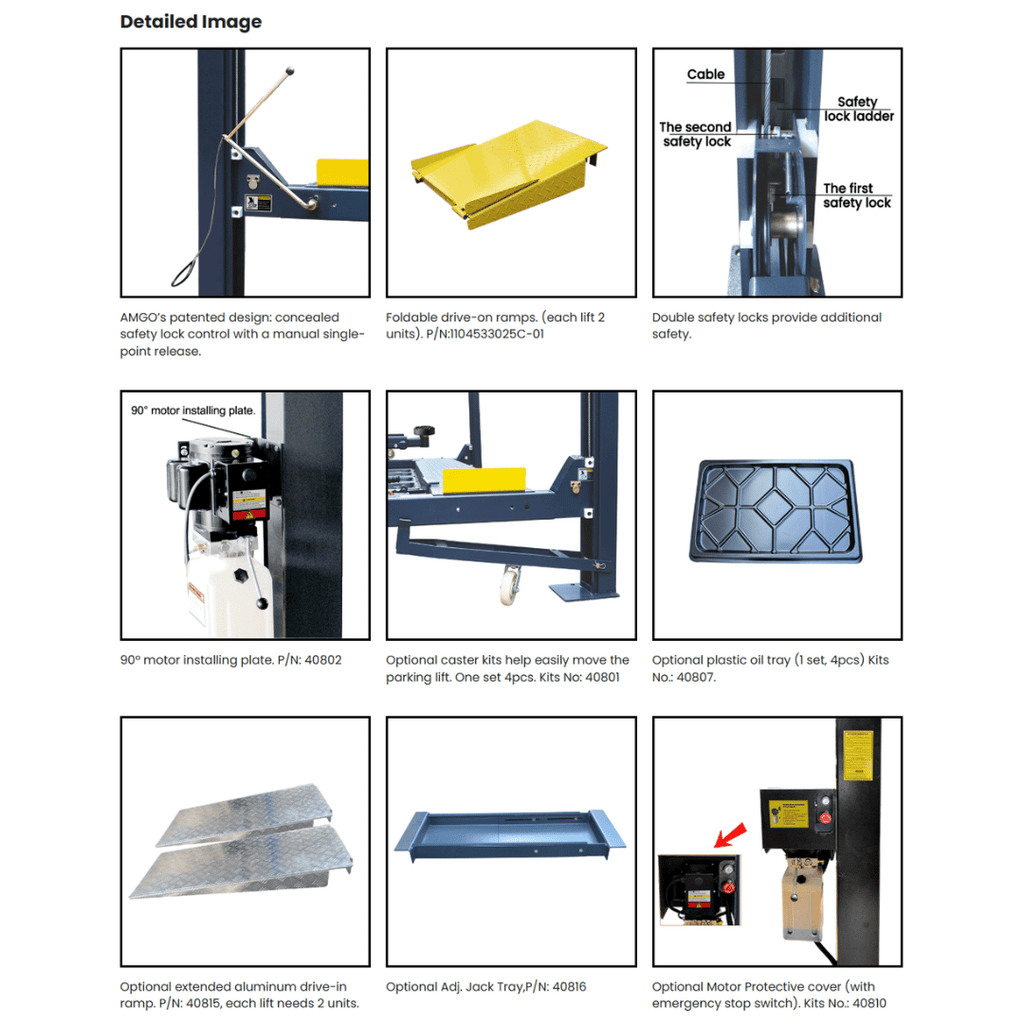

Standard and Optional Equipment
- Two foldable drive-on ramps included as standard — Part No. 1104533025C-01.
- Standard pull rope for convenient safety-lock operation.
- Standard 90-degree motor installation plate — Part No. 40802.
- Optional caster kit with four casters — Kit No. 40801.
- Optional plastic oil-tray set with four trays — Kit No. 40807.
- Optional extended aluminum drive-in ramps — Part No. 40815; two required.
- Optional adjustable jack tray — Part No. 40816.
- Optional motor protective cover with emergency-stop switch — Kit No. 40810.

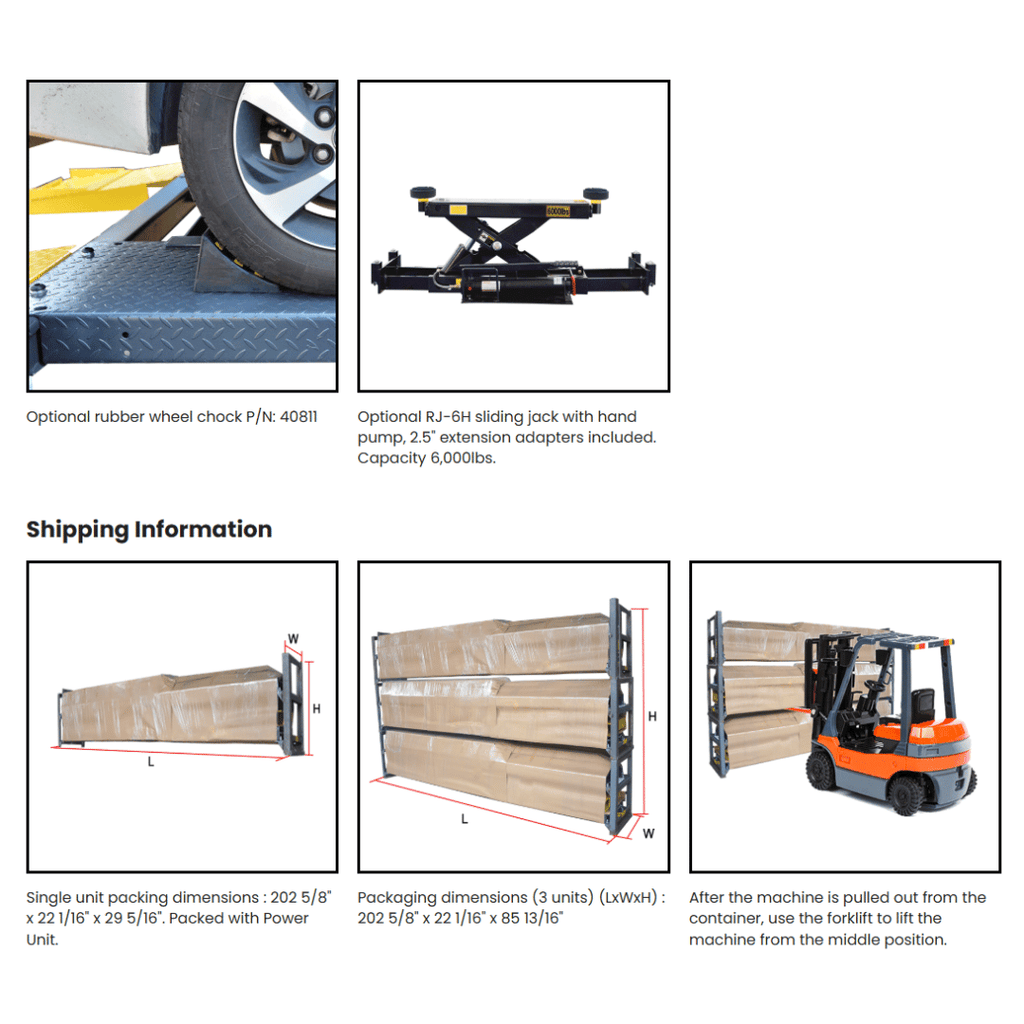

- Optional rubber wheel chock — Part No. 40811.
- Optional RJ-6H hand-pump sliding jack with 2.5-inch adapters — 6,000-lb. capacity.
Why Choose the AMGO 409-HP?
- Pro-series 9,000-lb. parking capacity.
- Long, wide runways accommodate many larger vehicles.
- High-profile design provides generous underneath clearance.
- Concealed single-point release requires no external compressed air.
- Primary locks and cable-slack protection provide dual safety.
- Optional 6,000-lb. sliding jack expands service capability.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO 409-HP combines Pro-series 9,000-lb. capacity with long platforms, wide drive-through clearance and high-profile parking height. Its dual direct-drive cylinders, concealed manual release, primary and secondary safety systems, foldable ramps and accessory compatibility make it a versatile parking solution for larger passenger vehicles, SUVs and light trucks.
Before purchasing or operating the lift, verify upper- and lower-vehicle dimensions and weight, ceiling and drive-through clearances, concrete and electrical requirements, available parking space and all applicable building and workplace safety regulations.
