AMGO 409-DPX: A longer and higher 9,000-lb. double-parking four post lift designed to create four vehicle spaces while providing extra clearance for SUVs, light trucks and other taller vehicles underneath.
About the AMGO 409-DPX

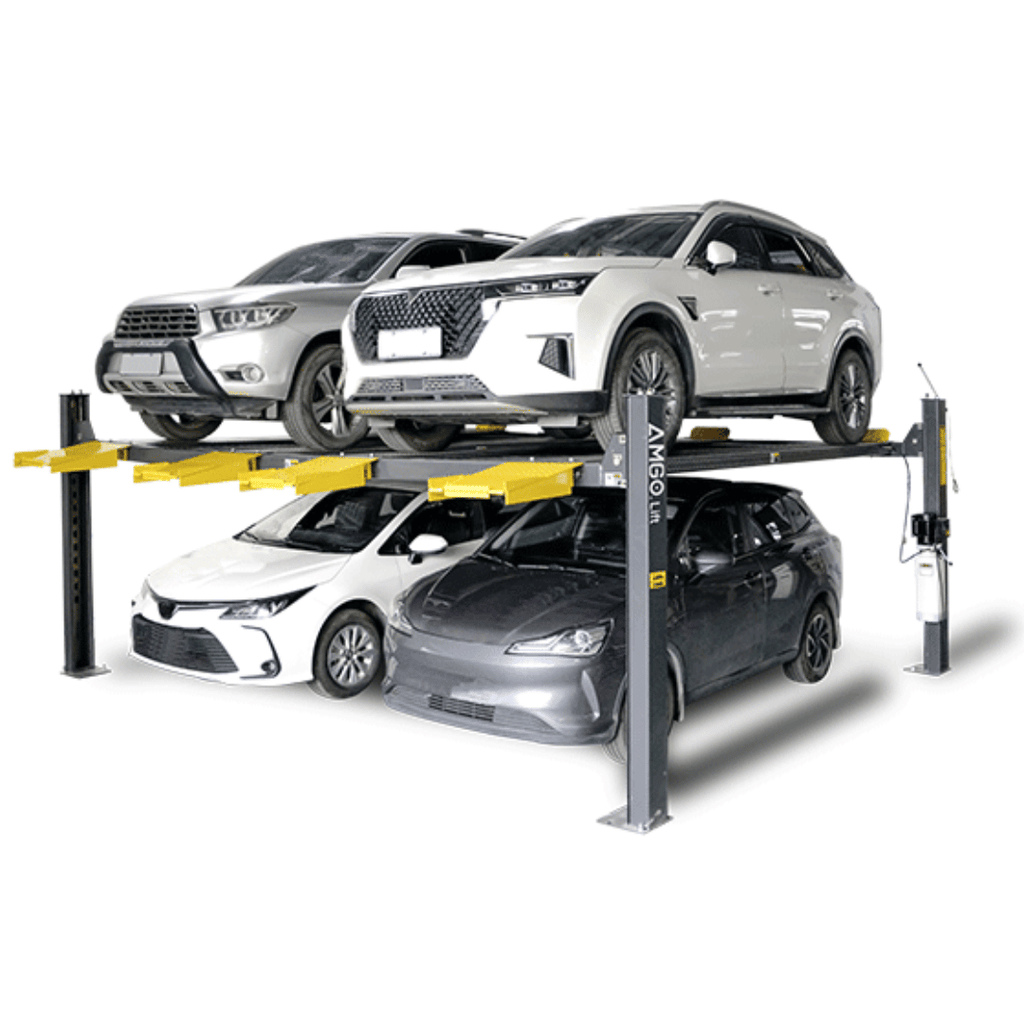

The AMGO 409-DPX is the longer and higher version of the 409-DP double-parking system. It transforms two adjacent parking positions into storage for as many as four compatible vehicles while providing the additional platform length and vertical clearance needed for many SUVs and light trucks.
The combined raised-platform capacity is 9,000 pounds, with a maximum permitted vehicle weight of 6,000 pounds on either upper platform. Low-profile runways, a broad central drive-through opening and concealed safety controls make the system practical for residential collections and commercial storage facilities.
Key Features
- 9,000-lb. total lifting capacity supports two compatible vehicles on the raised platforms.
- 6,000-lb. maximum per vehicle protects the paired structure from uneven overloading.
- Four-vehicle parking configuration creates two upper and two lower parking positions.
- Longer 238 5/8-inch overall layout accommodates many longer compatible vehicles.
- Higher 87 7/8-inch lifting range creates additional underneath clearance for SUVs and light trucks.
- Low-profile 5 15/16-inch runways improve access for many low-clearance passenger vehicles.
- 169 13/16-inch central drive-through width preserves practical access between both parking units.
- Single hydraulic cylinder with cable transmission drives the synchronized lifting system.
- Four primary mechanical safety locks secure the platforms at multiple parking heights.
- Secondary cable-brake safety locks add protection if lifting-cable tension is lost.
- Concealed single-point manual release simplifies controlled lowering without compressed air.
- Non-skid diamond platforms and foldable ramps support secure vehicle loading and storage.
Recommended Applications
SUV and Light-Truck Storage
The extended platform length and increased underneath clearance suit many compatible taller and longer vehicles.
Residential Multi-Car Garages
Store up to four compatible vehicles within two adjacent parking positions where ceiling height permits.
Commercial Parking Facilities
Dealerships, storage buildings and professional garages can substantially increase indoor parking capacity.

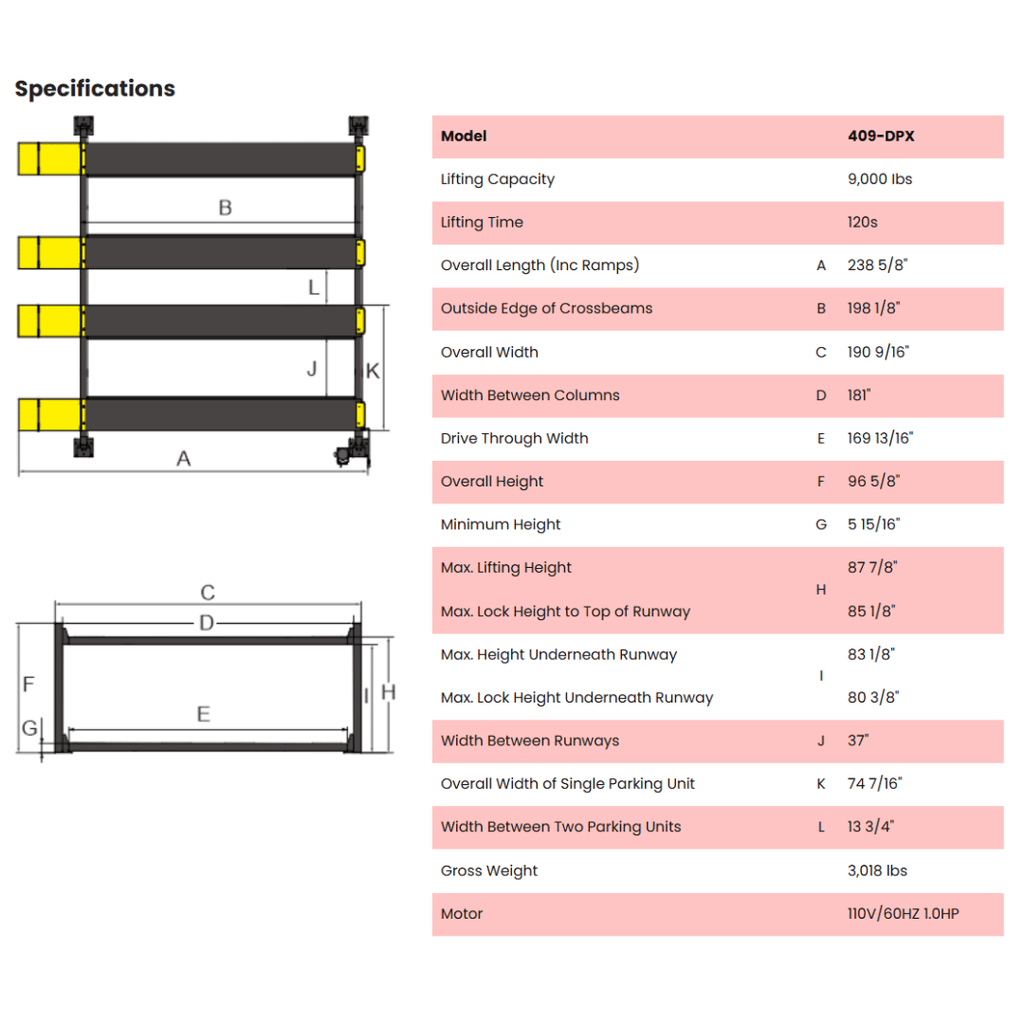

AMGO 409-DPX Specifications
| Specification | Reference | 409-DPX Details |
|---|---|---|
| Model | - | 409-DPX Extended Double Parking Four Post Lift |
| Total Lifting Capacity | - | 9,000 lbs |
| Maximum Weight Per Vehicle | - | 6,000 lbs |
| Maximum Parking Capacity | - | Four vehicles |
| Lifting Time | - | 57 seconds |
| Overall Length Including Ramps | A | 238 5/8" |
| Overall Length Without Ramps | B | 205 1/16" |
| Overall Width | C | 190 9/16" |
| Width Between Columns | D | 181" |
| Central Drive-Through Width | E | 169 13/16" |
| Overall Height | F | 96 5/8" |
| Minimum Platform Height | G | 5 15/16" |
| Maximum Lifting Height | H | 87 7/8" |
| Maximum Lock Height to Top of Runway | - | 85 1/8" |
| Maximum Height Underneath Runway | I | 83 1/8" |
| Maximum Lock Height Underneath Runway | - | 80 3/8" |
| Width Between Runways | J | 37" |
| Overall Width of Each Parking Unit | K | 74 7/16" |
| Width Between Parking Units | L | 13 3/4" |
| Motor | - | 2.0 HP, 220V, Single Phase |
Installation note: The current AMGO manual specifies a smooth, level concrete floor at least 4 inches thick with a minimum test strength of 3,000 psi, sufficient overhead and side clearance, and electrical installation by a licensed electrician. Indoor installation is standard; outdoor installation requires the optional motor protective cover. Never exceed 9,000 pounds combined or 6,000 pounds on either raised platform.

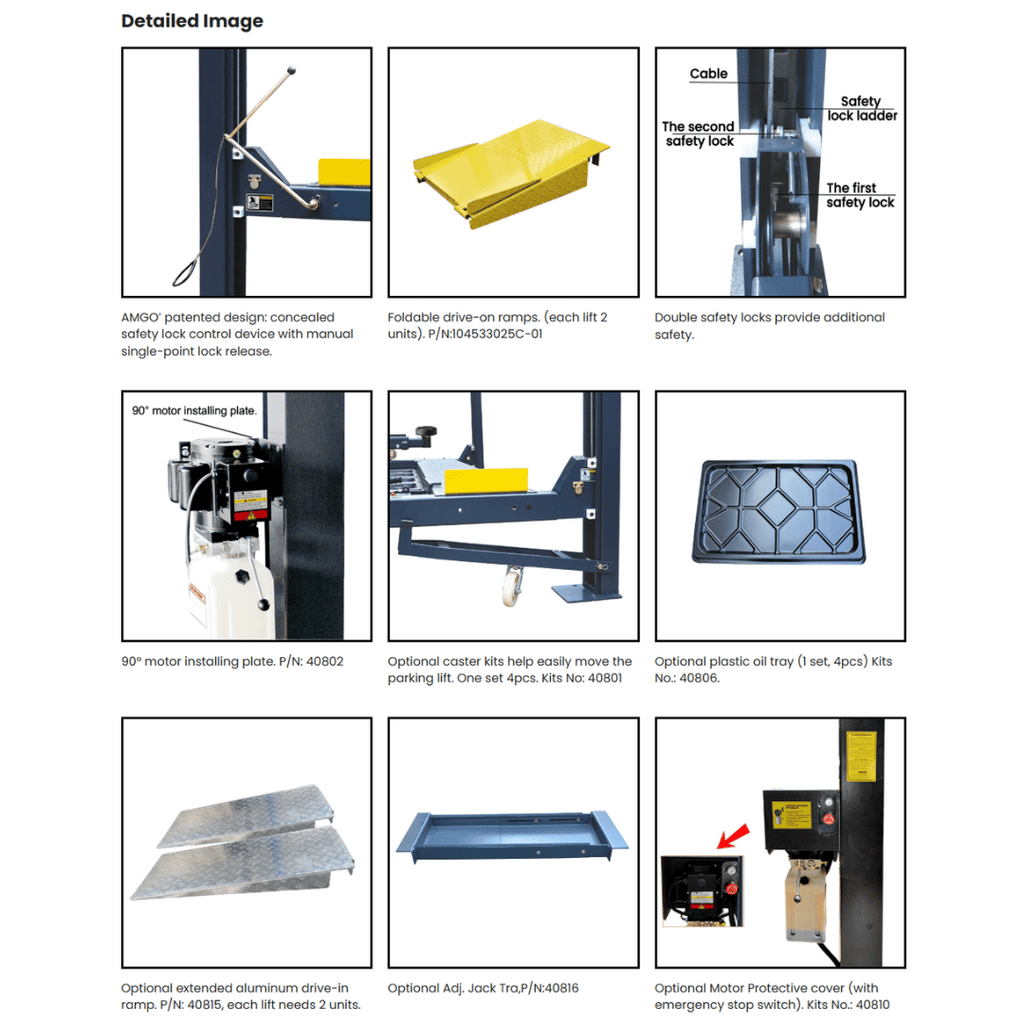

Standard and Optional Equipment
- Four foldable drive-in ramp assemblies included as standard.
- Pull rope included specifically for convenient 409-DPX lock-release operation.
- Four tire stops included for secure vehicle positioning.
- Standard 90-degree motor installation plate.
- Optional plastic oil-tray set — Kit No. 40806.
- Optional storage wave panels for the parking platforms.
- Optional motor protective cover with emergency-stop switch — Kit No. 40810.
- Optional J6H hand-pump sliding jack for the 409-DPX.
- Sliding jack includes 1.5-inch and 2.5-inch extension adapters.
Why Choose the AMGO 409-DPX?
- Creates four parking spaces within two side-by-side positions.
- Longer and higher than the standard 409-DP.
- Provides 83 1/8 inches of maximum underneath clearance.
- Low-profile platforms simplify loading compatible low-clearance vehicles.
- Primary and cable-brake locks provide layered safety protection.
- Optional trays, storage panels and J6H sliding jack expand functionality.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO 409-DPX expands the double-parking concept with longer platforms and substantially more vertical clearance than the 409-DP. Its 9,000-lb. combined capacity, 6,000-lb. per-vehicle limit, low-profile runways, broad central opening, concealed release and dual mechanical safety systems make it a practical solution for storing passenger cars, SUVs and compatible light trucks.
Before purchasing or operating the lift, verify every vehicle's weight and dimensions, ceiling and drive-through clearances, concrete and electrical requirements, available parking space and all applicable building and workplace safety regulations.
