AMGO 408-HPX Boat & Wide-Vehicle Storage Lift – 8,000-lb Capacity
AMGO 408-HPX Boat & Wide-Vehicle Storage Lift – 8,000-lb Capacity

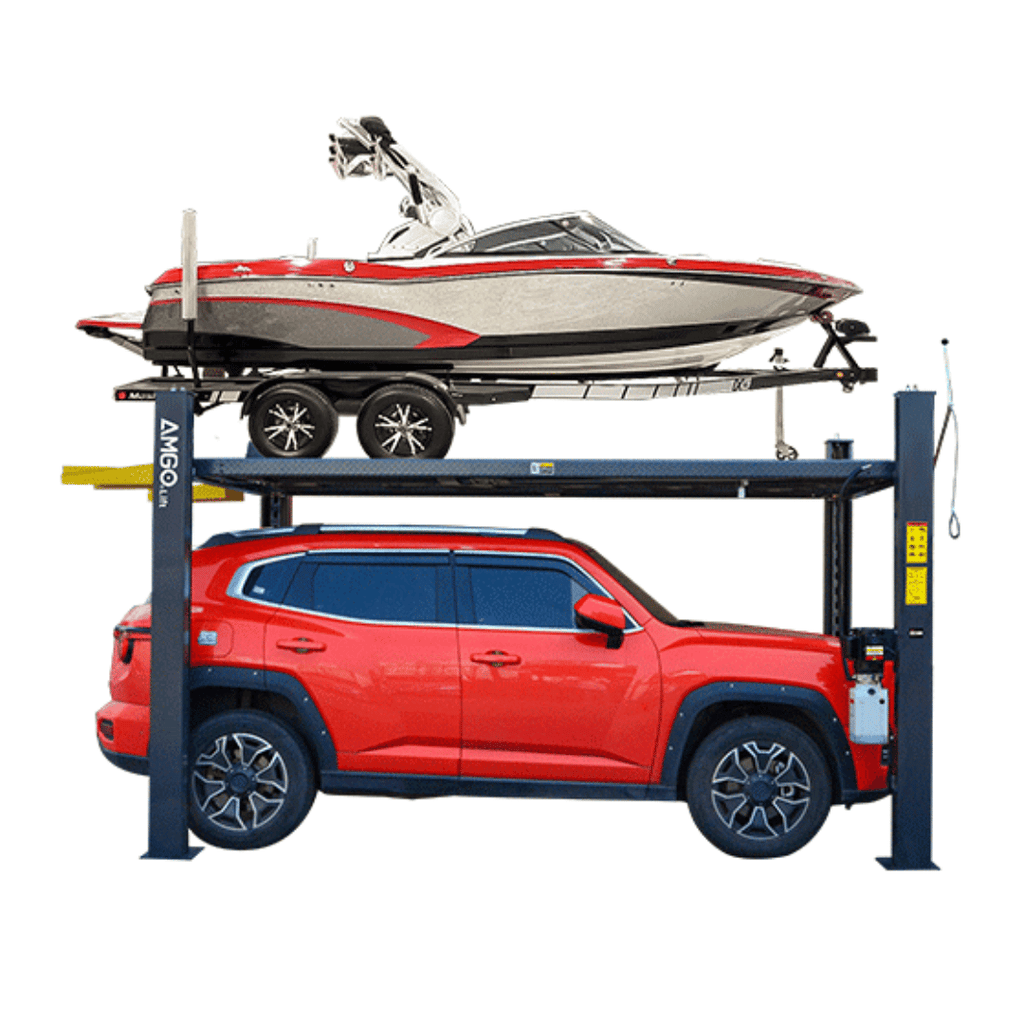

AMGO 408-HPX: An 8,000-lb. standard four post storage lift for recreational boats, trailers and wide vehicles, featuring two runway-width settings, 111-inch drive-through clearance, concealed single-point release and dual safety protection.
About the AMGO 408-HPX
The AMGO 408-HPX is a standard-height four post storage lift developed for recreational boats, trailers and extra-wide vehicles. Its two runway-width settings and 111-inch drive-through clearance provide the flexibility needed for different trailer configurations and wide vehicle bodies.
The lift combines an 8,000-lb. capacity with non-skid diamond platforms, foldable drive-on ramps and a concealed manual lock-release system. Its wide post spacing and adjustable platform layout make it suitable for residential storage buildings, marinas, dealerships and commercial facilities.
Key Features
- 8,000-lb. lifting capacity supports compatible recreational boats, trailers and wide vehicles.
- Two runway-width settings accommodate different trailer tracks and wide vehicle configurations.
- 111-inch drive-through clearance provides generous access between the lift posts.
- Single hydraulic cylinder with cable transmission provides coordinated platform lifting.
- Concealed single-point manual release simplifies controlled lowering without compressed air.
- Automatic mechanical primary locks secure the platforms at multiple storage heights.
- Cable-slack secondary safety system adds protection if lifting-cable tension is lost.
- Integrated non-skid diamond platforms improve tire and trailer grip during loading.
- Adjustable safety-lock ladders support level positioning at multiple heights.
- Foldable drive-on ramps come standard for convenient loading and storage.
- Flexible power-unit placement allows installation at any corner of the lift.
- ETL-certified 110V power unit comes standard for dependable operation.
Recommended Applications
Recreational Boat Storage
The wide entry and adjustable runway positions accommodate many compatible boat-and-trailer combinations.
Wide Vehicle Storage
Use the broad post spacing and dual-width settings for compatible wide-body vehicles and specialty trailers.
Residential and Commercial Facilities
Increase storage capacity in suitable garages, marinas, dealerships and professional storage buildings.

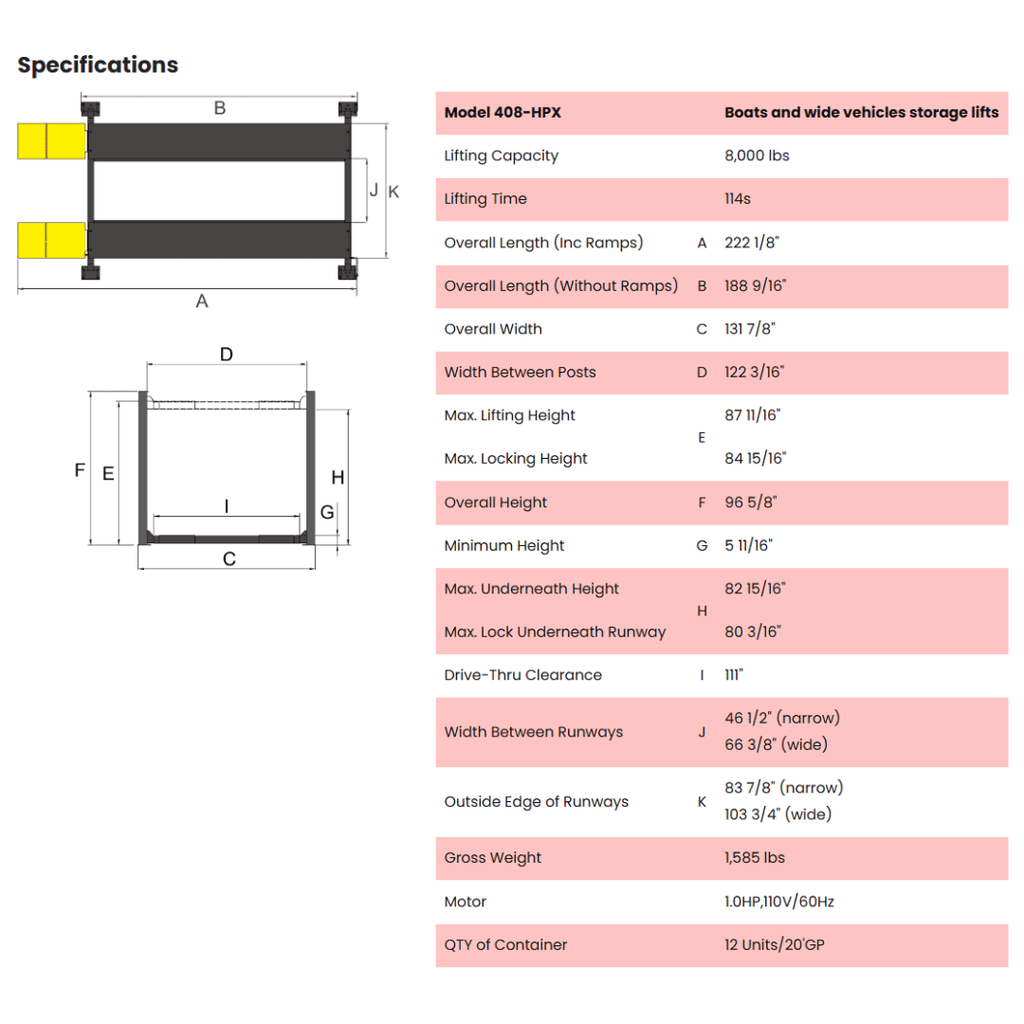

AMGO 408-HPX Specifications
| Specification | Reference | 408-HPX Details |
|---|---|---|
| Model | - | 408-HPX Standard Boat and Wide-Vehicle Storage Lift |
| Lifting Capacity | - | 8,000 lbs |
| Lifting Time | - | 114 seconds |
| Overall Length Including Ramps | A | 222 1/8" |
| Overall Length Without Ramps | B | 188 9/16" |
| Overall Width | C | 131 7/8" |
| Width Between Posts | D | 122 3/16" |
| Maximum Lifting Height | E | 87 11/16" |
| Maximum Locking Height | - | 84 15/16" |
| Overall Height | F | 96 5/8" |
| Minimum Height | G | 5 11/16" |
| Maximum Height Underneath Runway | H | 82 15/16" |
| Maximum Lock Height Under Runway | - | 80 3/16" |
| Drive-Through Clearance | I | 111" |
| Width Between Runways | J | 46 1/2" narrow / 66 3/8" wide |
| Outside Edge of Runways | K | 83 7/8" narrow / 103 3/4" wide |
| Gross Weight | - | 1,585 lbs |
| Motor | - | 1.0 HP, 110V / 60Hz |
Installation note: The March 2026 manual specifies installation on a flat, crack-free concrete floor at least 100 mm thick with a minimum test strength of 3,000 psi. The lift requires a properly grounded power supply and electrical work by a licensed electrician. Standard approval is for indoor installation; AMGO states that outdoor installation requires the optional motor protective cover.

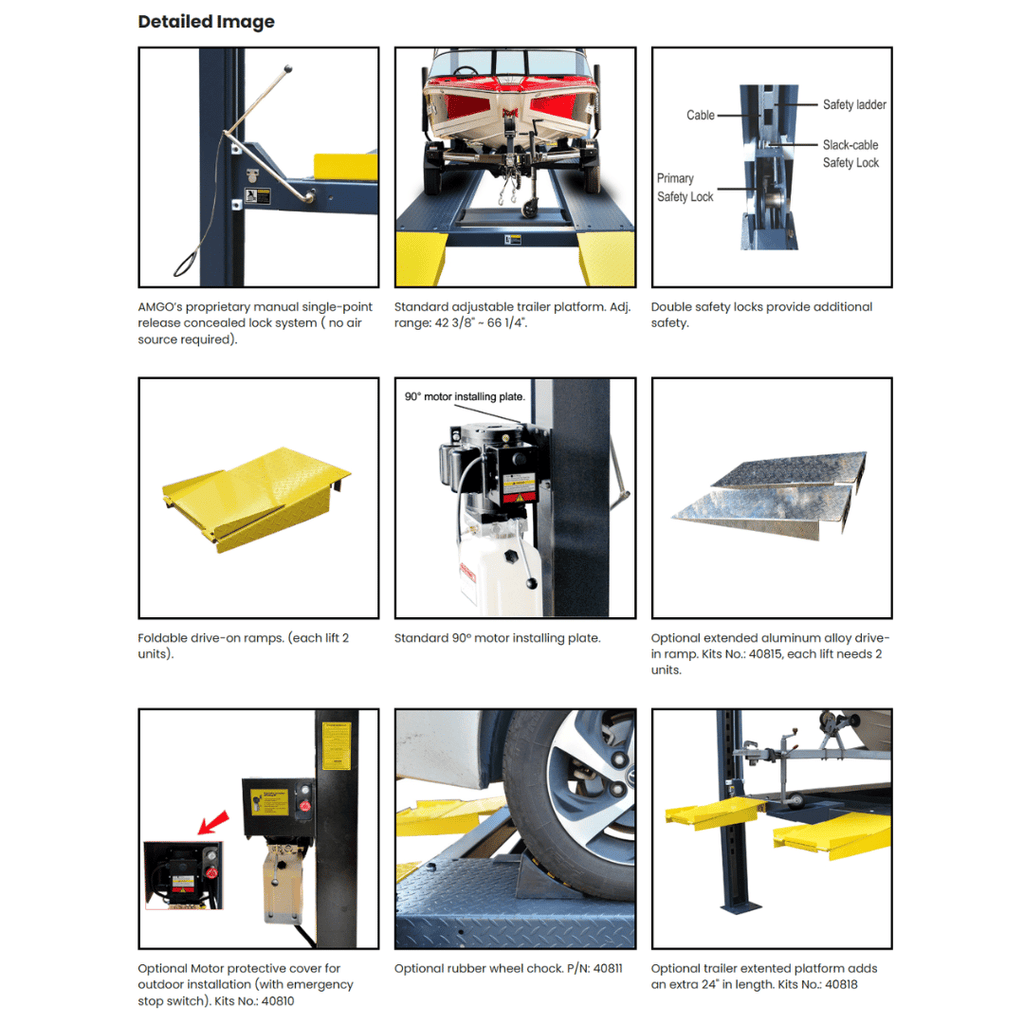

Standard and Optional Equipment
- Adjustable trailer platform supplied as standard, with an approximate 42 3/8-inch to 66 1/4-inch adjustment range.
- Two foldable drive-on ramps included as standard.
- Standard 90-degree motor installation plate.
- Optional extended aluminum-alloy drive-in ramps — Kit No. 40815; two required.
- Optional motor protective cover with emergency-stop switch — Kit No. 40810.
- Optional rubber wheel chock — Part No. 40811.
- Optional trailer extension platform adds approximately 24 inches — Kit No. 40818.
- Optional rolling-jack and caster-kit configurations are identified in the current manual.
Why Choose the AMGO 408-HPX?
- Purpose-built for recreational boats, trailers and wide vehicles.
- Two runway-width settings improve trailer compatibility.
- 111-inch drive-through clearance supports easier loading.
- Concealed single-point release requires no compressed-air source.
- Primary and cable-slack systems provide dual safety protection.
- Optional ramp and platform extensions accommodate longer combinations.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO 408-HPX combines an 8,000-lb. capacity with wide post spacing, two runway settings and a 111-inch drive-through opening. Its concealed manual release, primary and cable-slack safety devices, non-skid platforms and standard foldable ramps make it a practical storage lift for compatible recreational boats, trailers and wide vehicles.
Before purchasing or operating the lift, verify the combined vehicle-and-trailer weight, tire or trailer-track dimensions, overall length and height, ceiling and drive-through clearances, concrete and electrical requirements and all applicable building and workplace safety regulations.
