AMGO AX-16A: A heavy-duty 16,000-lb. alignment scissors lift with extra-long non-skid platforms, integrated rear slip plates, synchronized dual-cylinder groups, hydraulic synchronization and automatic mechanical locks.
About the AMGO AX-16A

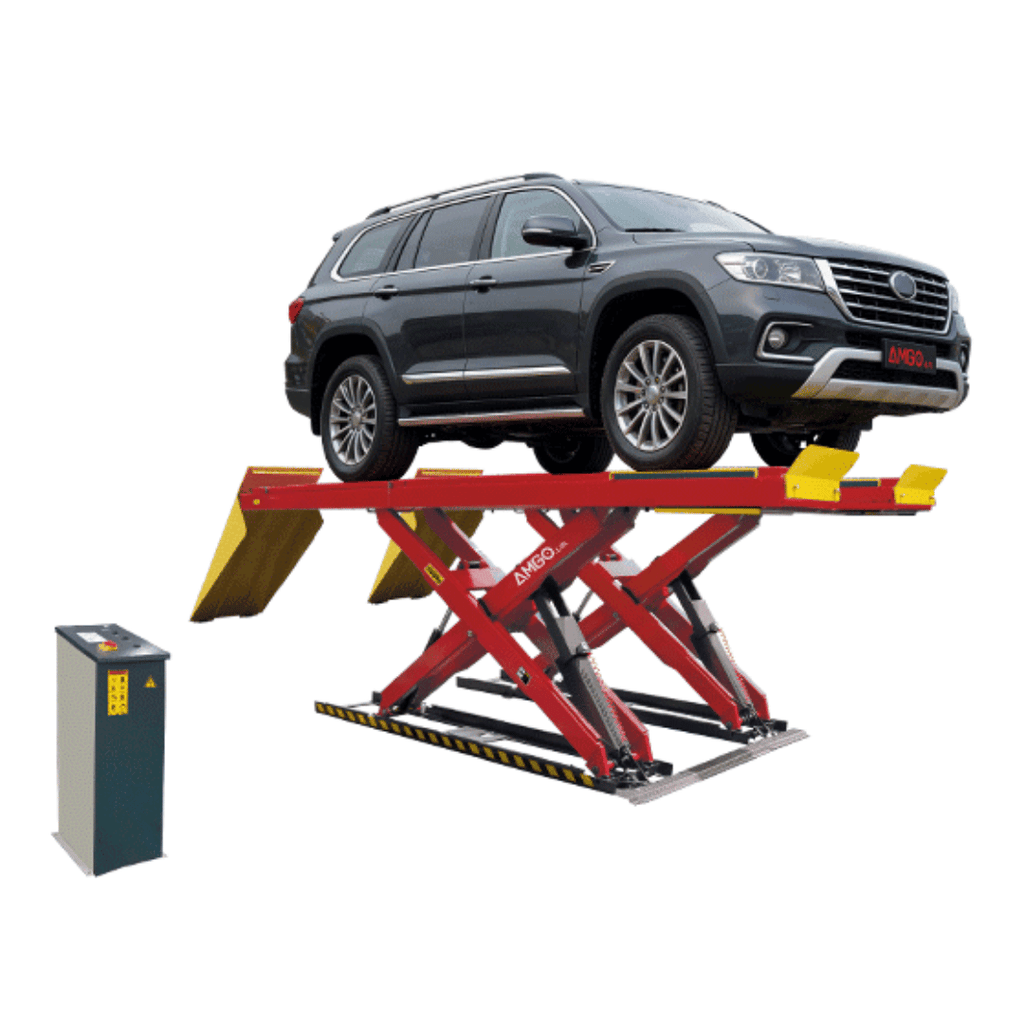

The AMGO AX-16A is a heavy-duty full-rise alignment scissors lift engineered for professional shops servicing everything from passenger cars to vans and long-wheelbase trucks. Its 16,000-lb. capacity and overbuilt X-scissor structure support demanding commercial workloads.
Extra-long non-skid platforms, integrated rear slip plates and an extended alignment range support two-wheel and four-wheel procedures. Two groups of synchronized dual hydraulic cylinders help keep both platforms level, while hydraulic and mechanical locking systems provide comprehensive operational safety.
Key Features
- 16,000-lb. lifting capacity supports compatible cars, vans, pickups and long-wheelbase trucks.
- Heavy-duty X-scissor structure uses large steel sections for strength under demanding commercial workloads.
- Full-rise design provides generous standing workspace beneath raised vehicles.
- Extra-long non-skid platforms accommodate larger vehicles and improve tire grip during positioning.
- Integrated rear slip plates support professional two-wheel and four-wheel alignment procedures.
- Two groups of dual hydraulic cylinders help maintain equalized, synchronized platform movement.
- Hydraulic synchronization system supports smooth and coordinated lifting performance.
- Automatic mechanical safety locks provide secure locking positions throughout the lifting range.
- Pneumatic lock release disengages the mechanical locks together during controlled lowering.
- Automatic safety stop comes standard for additional protection near floor level.
- Electro-hydraulic control system centralizes lift operation for professional service use.
- Pull-out service tray comes standard for convenient tool and parts placement.
Recommended Applications
Heavy-Duty Alignment Shops
Integrated slip plates and a long wheelbase range support professional two-wheel and four-wheel alignment work.
Van and Truck Service
The 16,000-lb. capacity and extra-long platforms support many compatible vans and long-wheelbase trucks.
Commercial Service Centers
Heavy-duty construction supports frequent alignment, inspection, maintenance and general repair tasks.

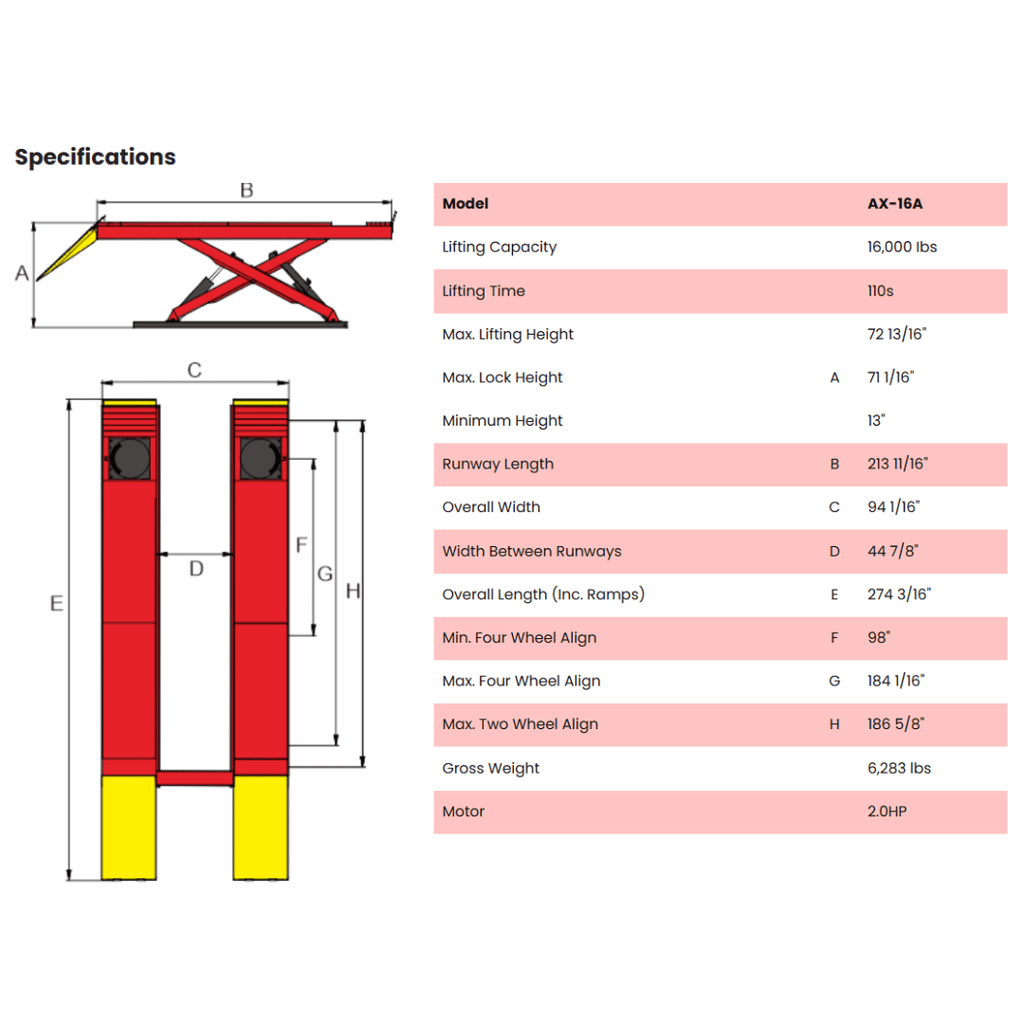

AMGO AX-16A Specifications
| Specification | Reference | AX-16A Details |
|---|---|---|
| Model | - | AX-16A Alignment Scissors Lift |
| Lifting Capacity | - | 16,000 lbs |
| Lifting Time | - | 110 seconds |
| Maximum Lifting Height | A | 72 13/16" |
| Maximum Lock Height | - | 71 1/16" |
| Minimum Height | - | 13" |
| Runway Length | B | 213 11/16" |
| Overall Width | C | 94 1/16" |
| Width Between Runways | D | 44 7/8" |
| Overall Length Including Ramps | E | 274 3/16" |
| Minimum Four-Wheel Alignment Wheelbase | F | 98" |
| Maximum Four-Wheel Alignment Wheelbase | G | 184 1/16" |
| Maximum Two-Wheel Alignment Wheelbase | H | 186 5/8" |
| Gross Weight | - | 6,283 lbs |
| Motor | - | 2.0 HP, 220V / 60Hz, Single Phase |
Installation note: The AX-16A is approved for indoor installation and should be installed on a level reinforced concrete foundation by qualified personnel. Confirm concrete thickness and strength, electrical and compressed-air requirements, platform and pit dimensions, anchoring, clearances and all local safety requirements stated in the official manual.

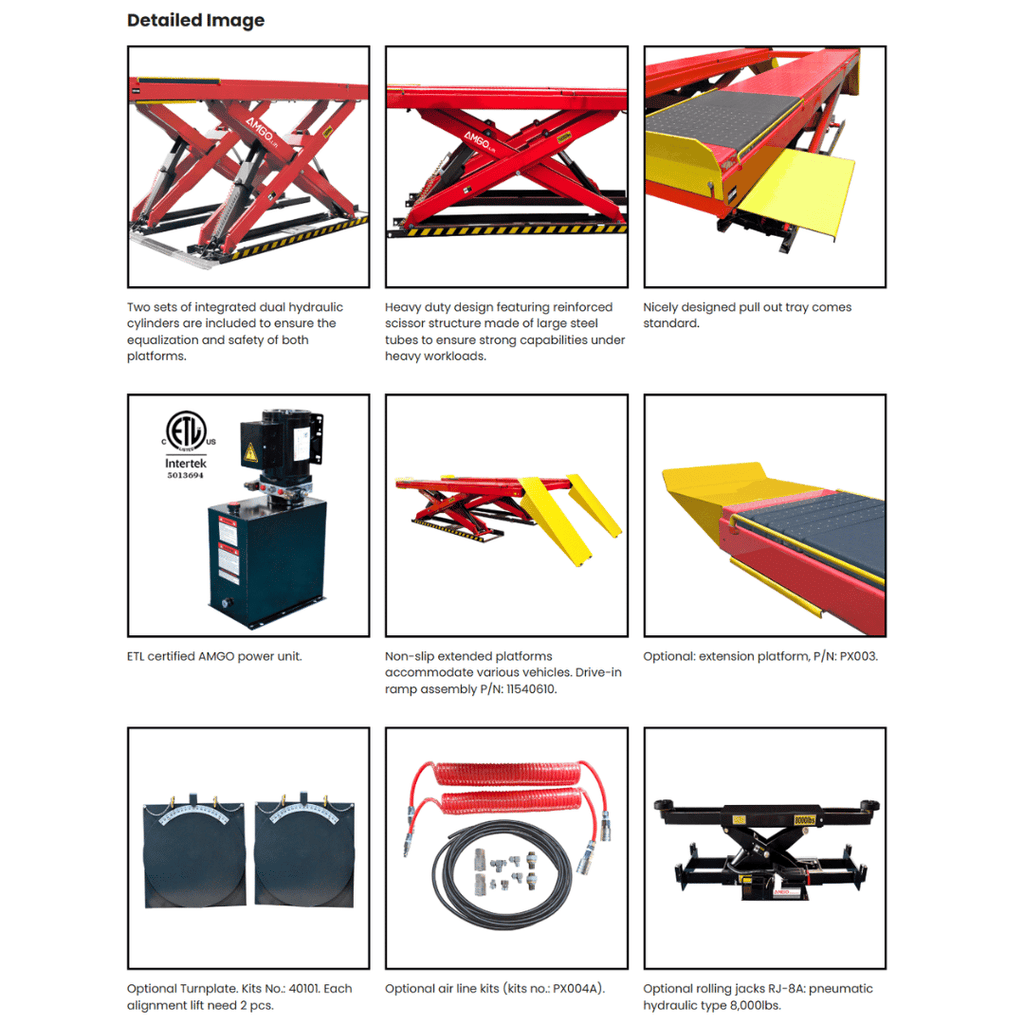

Alignment Equipment and Optional Accessories
- Integrated rear slip plates supplied for professional alignment service.
- Pull-out service tray included as standard.
- Optional turnplates — Kit No. 40101; two units are required for each alignment lift.
- Optional 11 7/8-inch platform extension — Kit No. PX003.
- Optional pneumatic rolling-jack air-line kit — Kit No. PX004A.
- Optional RJ-8A pneumatic hydraulic rolling jack — 8,000-lb. capacity.
Why Choose the AMGO AX-16A?
- Heavy-duty 16,000-lb. lifting capacity.
- Designed for cars, vans and long-wheelbase trucks.
- Integrated alignment equipment supports specialized wheel service.
- Extra-long non-skid platforms accommodate larger vehicles.
- Hydraulic and mechanical systems provide dual safety protection.
- Optional 8,000-lb. rolling jack supports wheel-free service.
Every AMGO Car Lift Is Guaranteed
Every AMGO car lift is delivered with a user manual containing detailed installation and maintenance guidelines, easy-to-follow troubleshooting guidance and an official warranty card. These resources support seamless installation, smooth day-to-day operation and uncompromising workplace safety.
AMGO 5-3-2 Warranty: Industry-Leading Service
AMGO Hydraulic Corporation supports its automotive lifts with comprehensive warranty coverage:
Product Overview
The AMGO AX-16A combines 16,000-lb. heavy-duty lifting performance with integrated alignment functionality, extra-long platforms and full-rise access. Its synchronized dual-cylinder groups, hydraulic and mechanical locks, rear slip plates, automatic safety stop and optional 8,000-lb. rolling jack make it a capable choice for commercial alignment and service facilities.
Before purchasing or operating the lift, verify vehicle dimensions and weight, alignment wheelbase compatibility, concrete and installation requirements, electrical and compressed-air supply, available working space and all applicable workplace safety regulations.
